Description

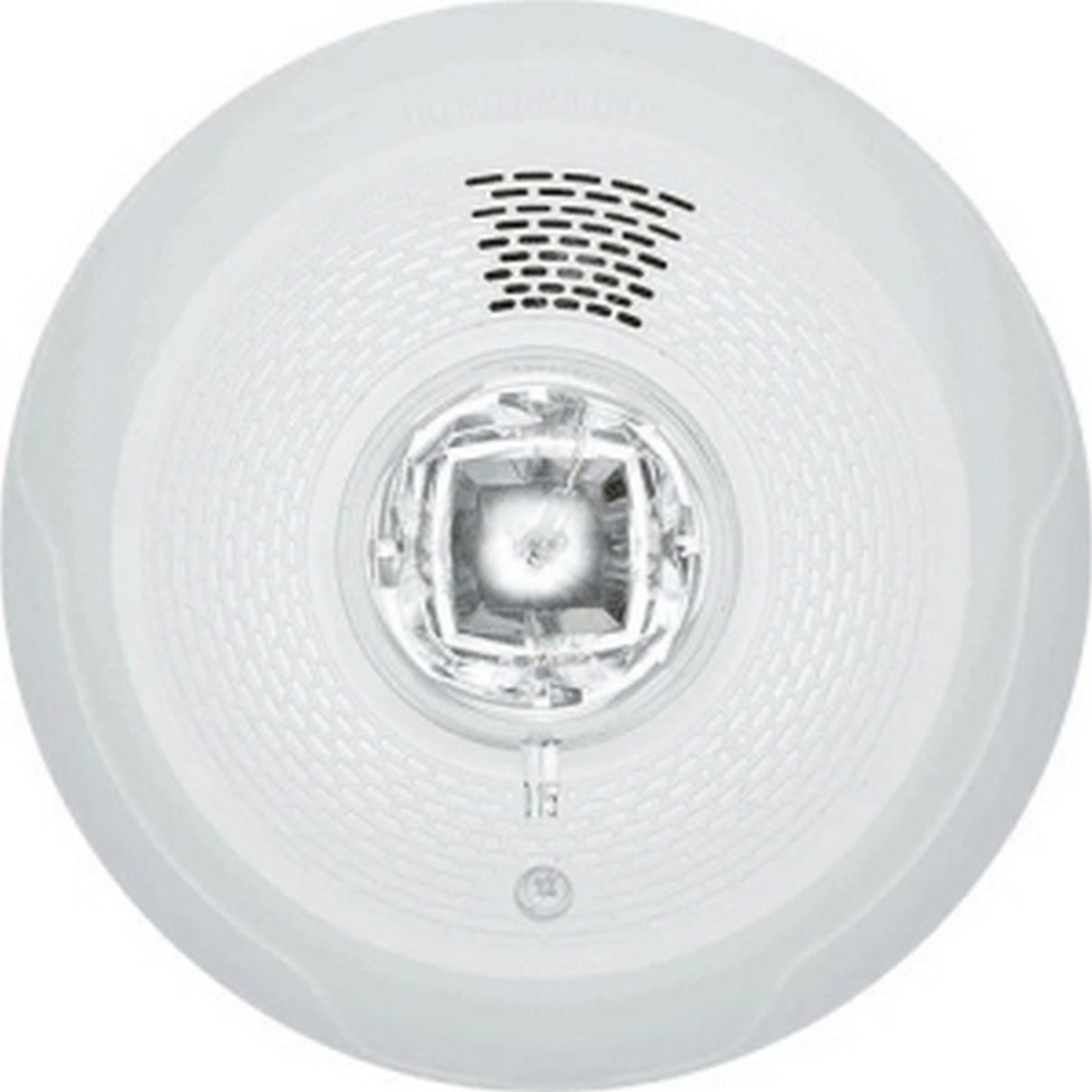

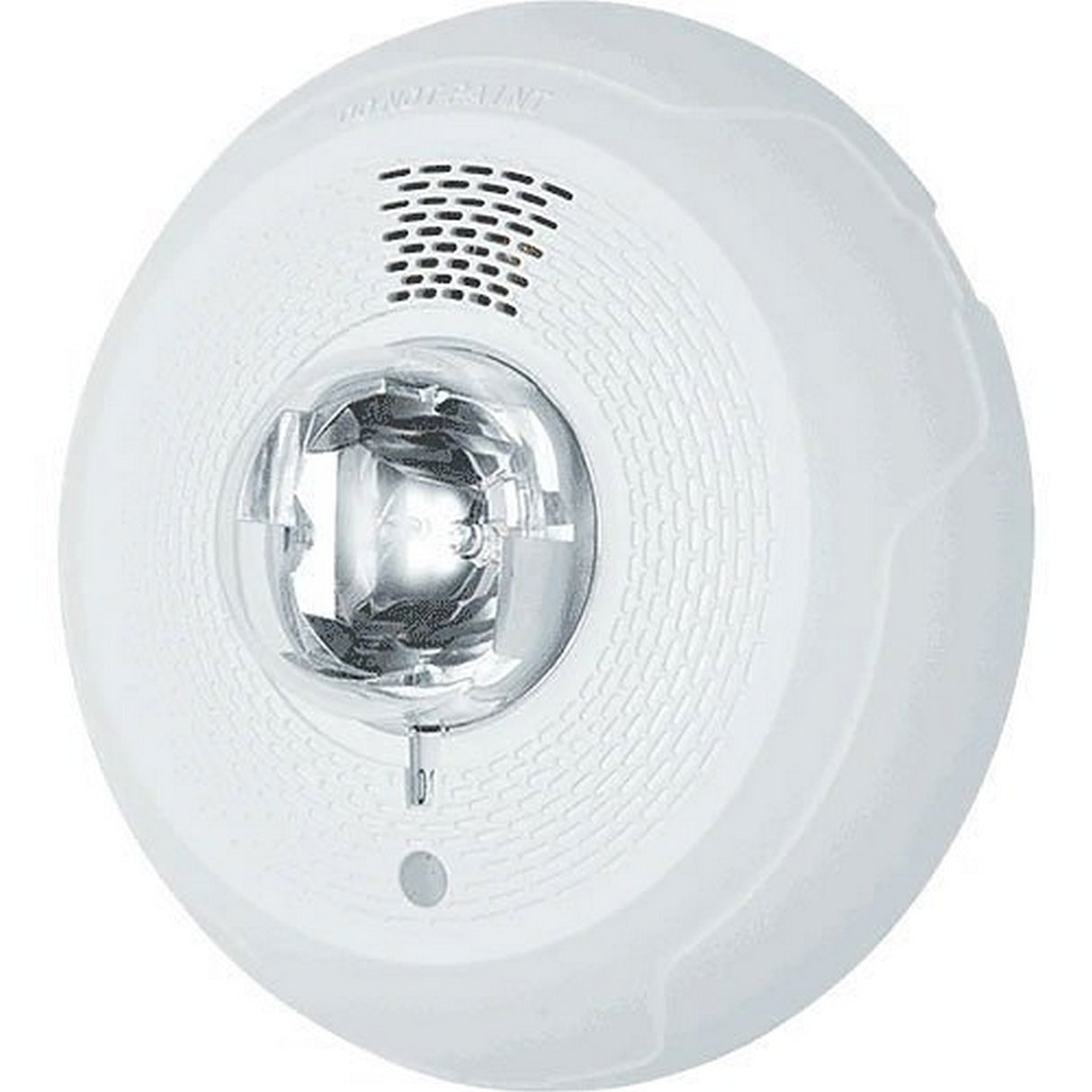

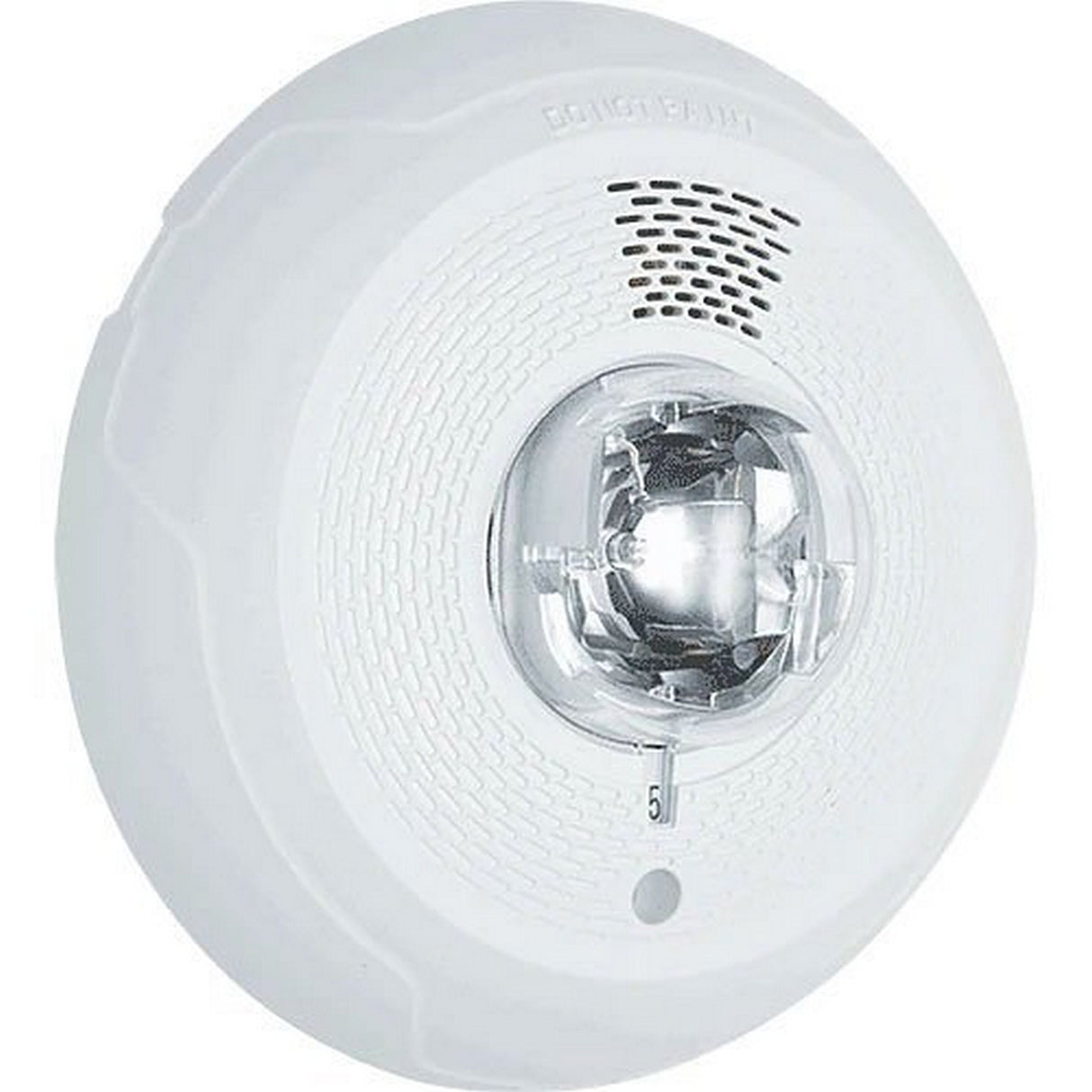

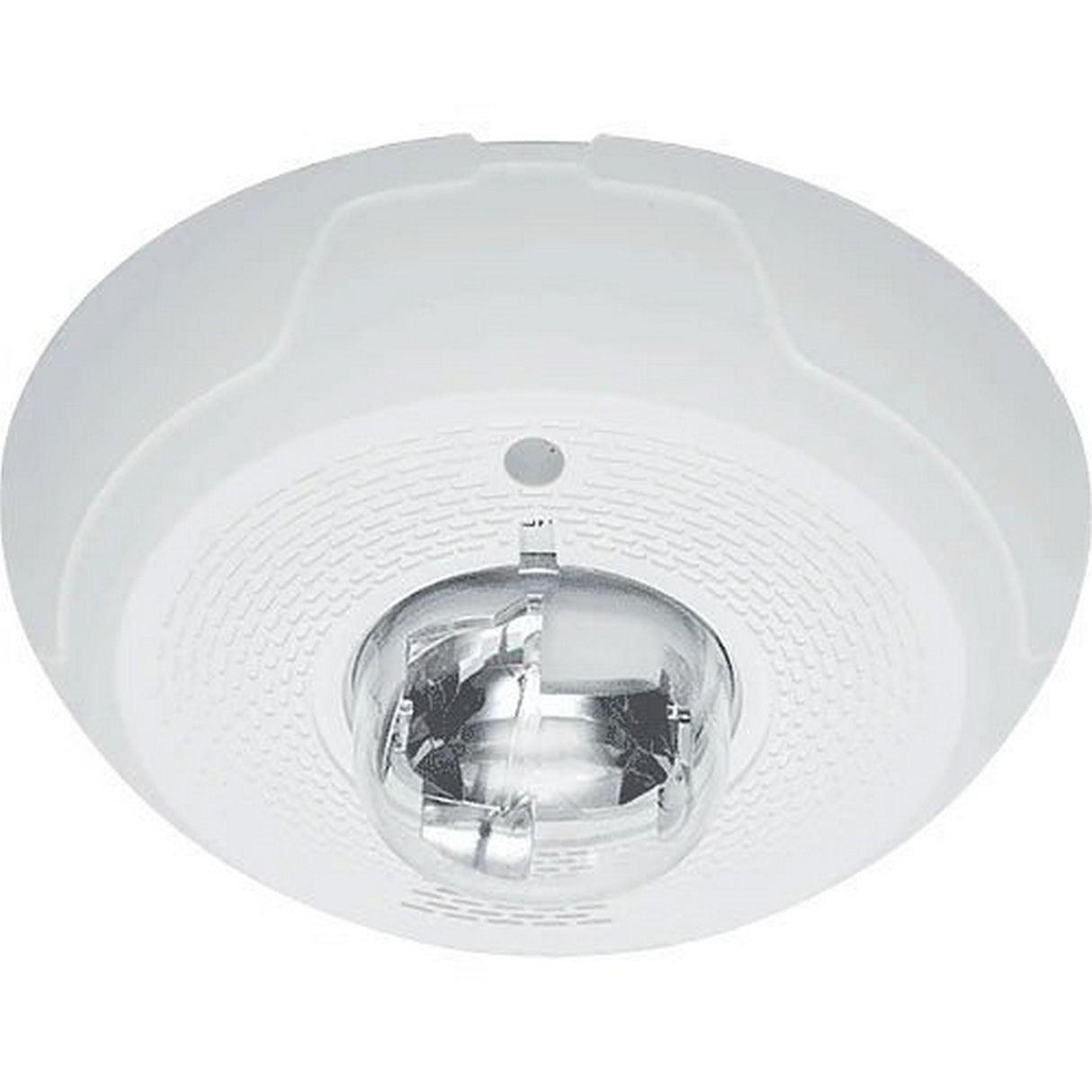

System Sensor CHSCWL L-Series Selectable Output Ceiling Chime
The System Sensor CHSCWL is an L-Series selectable output chime strobe designed for wall and ceiling mount notification applications. It is built for indoor installations where an audible chime and visual strobe are needed in a modern, low-profile device.
This chime strobe uses a plug-in design with minimal intrusion into the backbox to simplify installation. It includes a mounting plate shorting spring feature that checks wiring continuity before device installation and supports field-selectable candela settings for ceiling-mount devices.
The CHSCWL supports selectable tones with high and low volume settings and uses a rotary switch for tone and volume selection. Its tamper-resistant construction and compatibility with legacy SpectrAlert and SpectrAlert devices make it a reliable choice for a wide range of retrofit and new installs.
Key Features
- Modern design: Updated modern aesthetics.
- Fast installation: Plug-in design with minimal intrusion into the backbox.

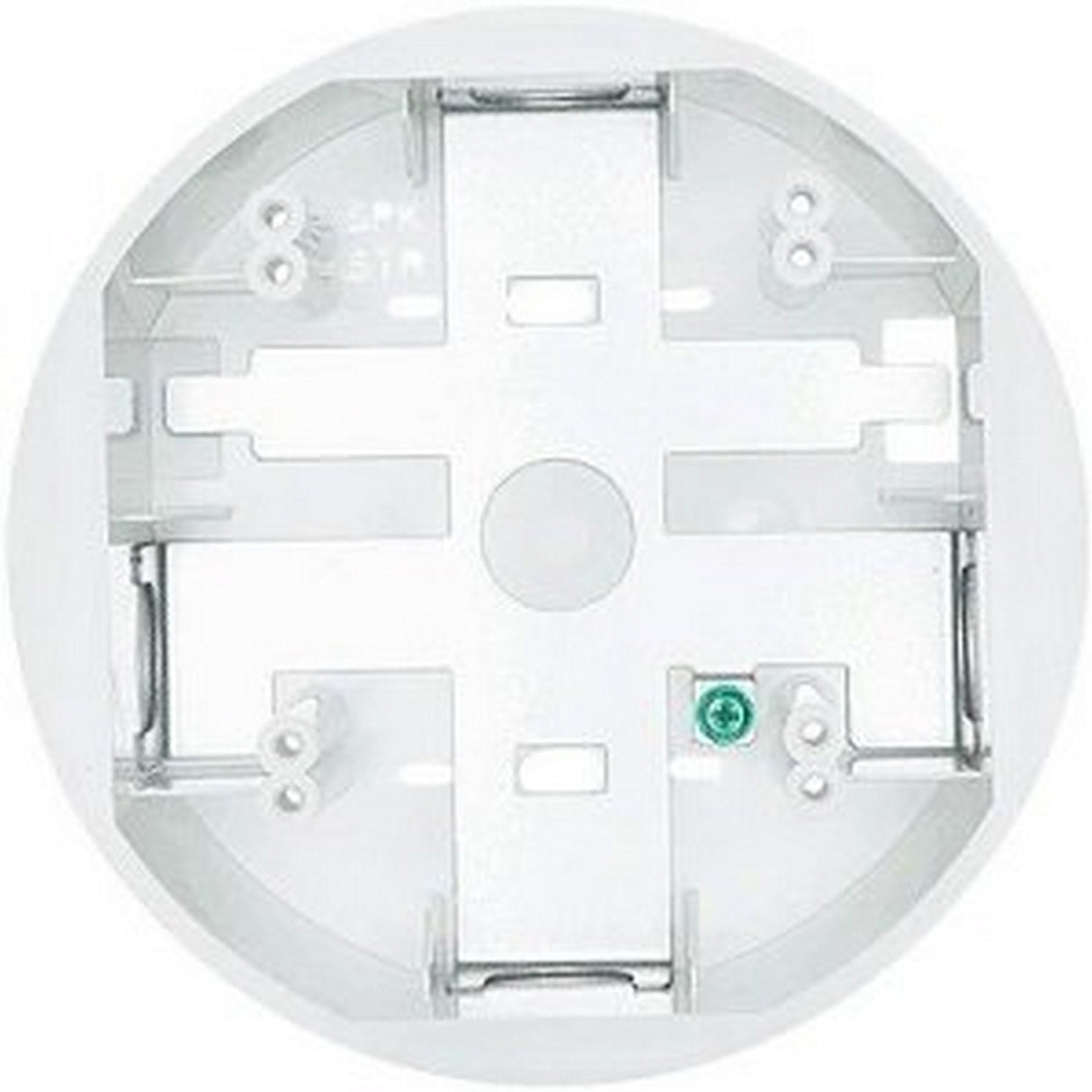

- Wiring verification: Mounting plate shorting spring feature checks wiring continuity before device installation.
- Secure mounting: Captive mounting screw.
- Durable build: Tamper-resistant construction.
- Selectable candela: Field-selectable candela settings for ceiling-mount devices: 15, 30, 75, 95, 115, 150, 177.
- Voltage selection: Automatic selection of 12 or 24V operation at 15 and 30 candela.
- Tone control: Rotary switch for tone and volume selections.
- Multiple tones: Five selectable tones with high and low volume settings.
- Legacy compatibility: Electrically compatible with legacy SpectrAlert and SpectrAlert.
Technical Specifications
- Brand: System Sensor
- Model: CHSCWL
- ADI Part Number: BK-CHSCWL
- Alarm Type: Audible, Visual
- Application Usage: Indoor
- Indoor Outdoor: Indoor
- Color: White
- Lens Color: Clear
- Form Factor: Ceiling Mount
- Mount Type: Ceiling Mount
- Shape: Round
- Height: 2.5"
- Input Voltage: 24V DC
- Power Source: DC
- UPC Code: 783863047671
- Country of Origin: Mexico
- Country of Origin Code: MX
