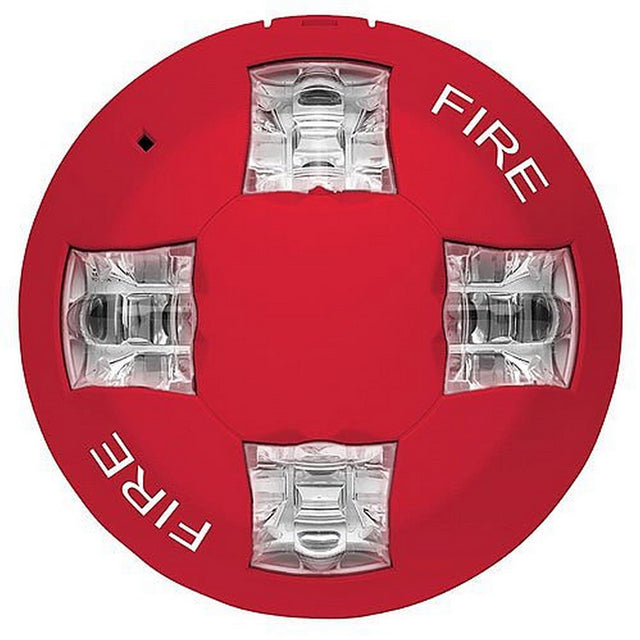

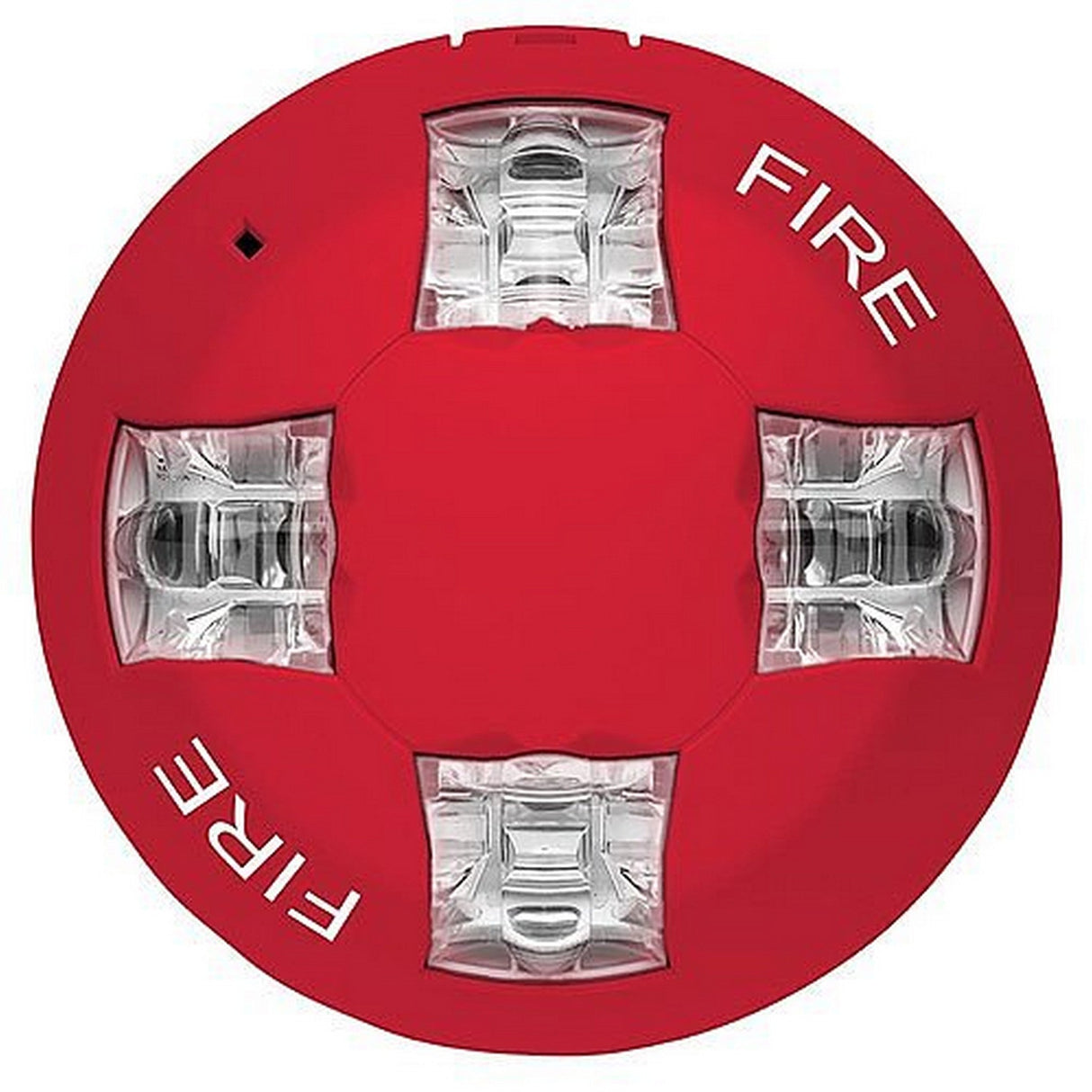

System Sensor Kidde Genesis Ceiling Strobe, 15-115cd, with FIRE Marking - Red
System Sensor Kidde Genesis Ceiling Strobe, 15-115cd, with FIRE Mar...
System Sensor Kidde Genesis Ceiling Strobe, 15-115cd, FIRE Marking
The System Sensor Kidde Genesis Ceiling Strobe is a crucial element of modern fire alarm systems, ensuring safety through effective signaling. With an adjustable output of 15 to 115 candela, this strobe is designed to provide maximum visibility, alerting occupants swiftly in emergency situations. Its compact and sleek design blends seamlessly into any environment, making it an excellent choice for both commercial and residential applications.
This ceiling-mounted strobe is engineered to deliver reliable performance, utilizing advanced technology to produce a bright, attention-grabbing light. The clear FIRE marking allows for immediate recognition, enabling quick response in emergencies. Ideal for use in various settings, the Kidde Genesis Ceiling Strobe is a dependable choice that enhances fire safety measures while maintaining aesthetic appeal.
Installation is straightforward, with compatibility across a wide range of fire alarm systems. The device operates efficiently under diverse environmental conditions, ensuring consistent performance. The Kidde Genesis Ceiling Strobe is not just a safety device; it's a vital component that supports a comprehensive fire protection strategy.
Key Features
- Adjustable candela output (15-115 cd) for versatile applications.
- Sleek design complements any architectural setting.
- Simple installation process for both new and retrofit projects.
- CLEAR FIRE marking for quick identification in emergencies.
- Reliable operation in a wide range of temperatures and conditions.
Technical Specifications
Dimensions
6.8" x 1.82" (17.27 cm x 4.62 cm)
Weight
1.5 lbs
Candela Output
15, 30, 75, or 115 cd
Operating Voltage
16 to 33 VDC, 16 to 33 VFWR
Horn Signal Type
Constant or TC3 temporal
Strobe Flash Rate
1 fps (flash per second) approx.
Synchronization
20 Ī© max. between any two devices
Synchronization Sources
Kidde CC Series Signal Modules, Booster and Auxiliary Power Supplies, Intelligent and Conventional Control Panels
Wire Size
12 to 18 AWG (0.75 to 2.50 mmĀ²)
Mounting
Wall or Ceiling mount
Strobe-to-Box Center Offset
-1.70 inches (-4.32 cm)
Compatible Electrical Boxes
1-gang, 2-gang, 4-inch octagon, 4-inch square
Trim Plates
EGCTR, EGCTW 10.6" x 0.3" (26.92 cm x 0.76 cm)
Operating Environment
Temperature: 32 to 122Ā°F (0 to 50Ā°C), Relative Humidity: 0 to 93% noncondensing
Storage Temperature
-40 to 158Ā°F (-40 to 70Ā°C)
Electrical Box Depth
Minimum 1-1/2 in. (3.81 cm) deep
Color Options
Available in Red or White
