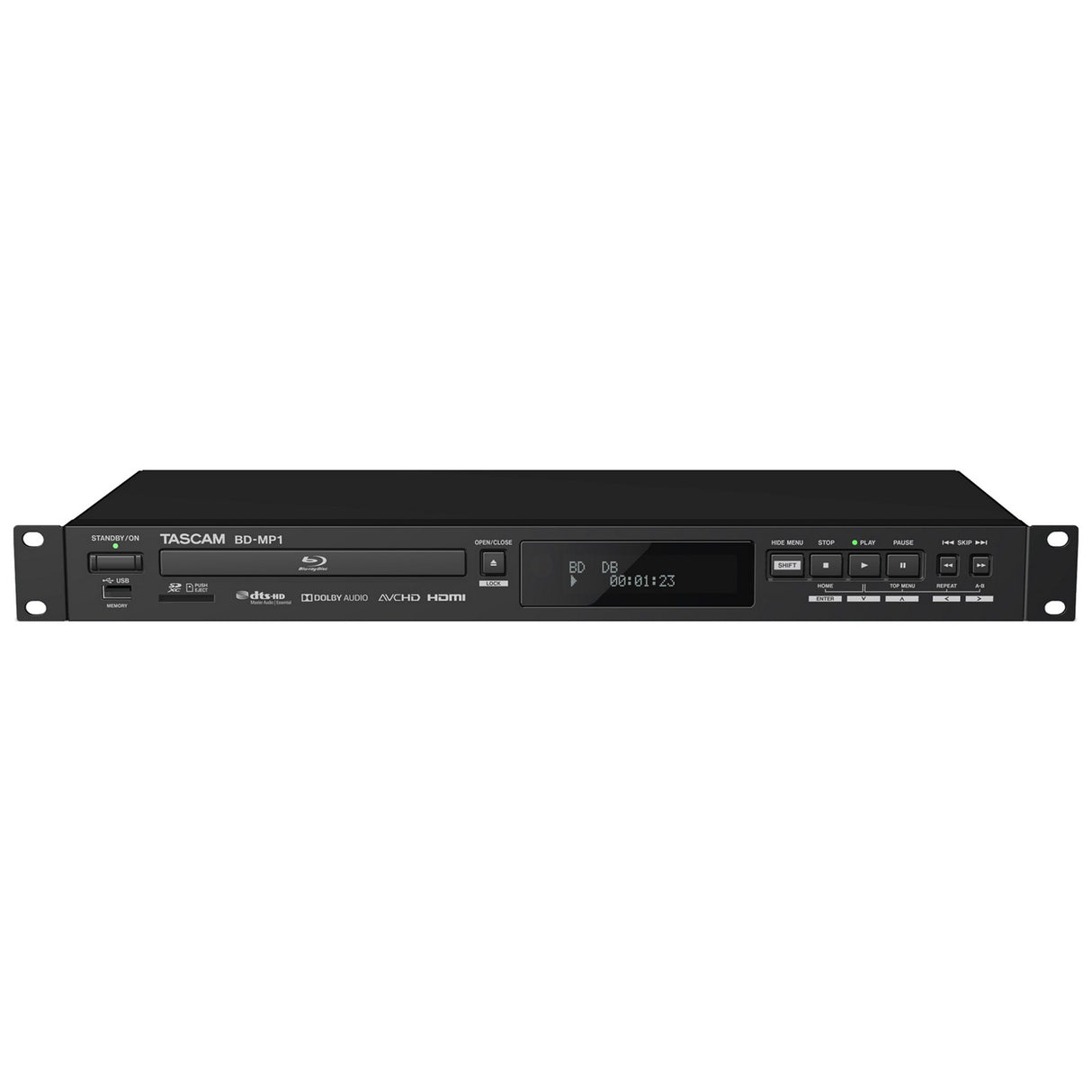

Tascam BD-MP1 Multi-Format Blu-Ray Player with USB Flash Memory Playback

Tascam BD-MP1 Multi-Format Blu-Ray Player with USB Flash Memory Playback

The Tascam BD-MP1 Multi-Format Blu-Ray Player is a professional-grade device designed to cater to a wide array of commercial installations. From public and educational facilities to theaters and entertainment businesses, this Blu-ray player provides exceptional versatility and performance. Expanding on Tascam's legacy of the popular BD-01U, the BD-MP1 offers enhanced features and superior build quality, making it a reliable choice for high-demand environments. Ideal for playback of various digital content formats, this player ensures both video and audio excellence with its high-resolution capabilities and robust connections.

Built to support different formats of Blu-ray, DVD, and CD discs, along with USB and SD memory playback, the BD-MP1 is a conclusive solution for all your playback needs. This multi-format Blu-ray player includes power-on play functionality, seamless repeat features, and external remote control for convenient operation. With its 1U rackmount size and rugged metal casing, this player fits perfectly into any professional setup, providing durability and ease of integration. Whether you are looking to enhance your facility's AV setup or need a dependable player for a commercial application, the Tascam BD-MP1 stands out as a top-tier option.

Key Features

• Supports playback of various formats of Blu-ray, DVD, and CD discs
• Supports playback from SD cards (SD/SDHC/SDXC) and USB memory
• Power on play function
• Seamless repeat function: by chapter, title, or A-B repetition
• Resume function
• Lock functions: panel, IR, and tray lock
• External remote control via LAN or RS-232C
• HDMI output port equipped
• XLR balanced output terminals equipped
• Coaxial digital audio output terminal equipped
• RCA 7.1 channel audio output terminal equipped
• Analog output attenuation function (up to -12dB)
• Rugged metal casing
• 1U rackmount size

Specifications

• Disc Media: Blu-ray BD25, BD50, BD-ROM, BD-R, BD-RE; DVD DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW; CD CD-DA, CD-R, CD-RW
• Disc Type: Blu-ray BDMV, BDAV, BD-Audio; DVD DVD-Video, DVD-VR, AVCHD, DVD-Audio
• Format Video: ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, RMVB, TP, TS, MP4, WMV
• Audio: WAV, MP3, WMA, AAC, FLAC, APE
• Picture: JPEG, GIF, PNG
• Ratings (Audio) BD/DVD/USB/SD: Sampling frequency 44.1k/48k/64k/88.2k/96k/176.4k/192k Hz, Bit length 16/24 bit
• CD: Sampling frequency 44.1k/48k Hz, Bit length 16/24bit
• MP3/WMA: Sampling frequency 32k/44.1k/48k Hz, MP3 112k to 320k bps, WMA 48k to 192k bps
• HDMI Output Connector: HDMI 19pin Type A, Resolution 480i/576i, 480p/576p, 720p, 1080i, 1080p
• Aspect ratio: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
• Video format: NTSC, PAL, Multi
• HDMI signal system: RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2)
• Digital audio outputs: COAXIAL Connector RCA pin jack, Format IEC60958-3(S/P DIF), Output impedance 75ohms
• Analog audio outputs: Balanced Connector XLR-3-32 (1 : GND, 2 : HOT, 3 : COLD) × 2 (Stereo), Output impedance 200ohms, Normal output level +4dBu (1.23 Vrms), Maximum output level +20dBu (7.75Vrms)
• Unbalanced Connector RCA pin jack × 1 pair, Output impedance 200OHMS, Normal output level -10dBV (0.316 Vrms), Maximum output level +6dBV (2.0Vrms)
• 7.1ch Audio outputs Connector: RCA pin jack × 8 (FL/FR/SL/SR/SBL/SBR/C/SW), Connector color FL, SL, SBL : White; FR, SR, SBR : Red; C, SW : Black; Output impedance 200, Normal output level -10dBV (0.316 Vrms), Maximum output level +6dBV (2.0Vrms)
• RS-232C Connector: D-sub 9pin × 1, Format RS-232C compliant
• ETHERNET Connector: RJ-45, Protocol 10BASE-T/100BASE-TX
• USB Connector: Front USB A-type × 1, Rear USB A-type × 1, Protocol USB2.0 compliant, Rated supply voltage DC 5V, 1A, Mass storage class 2TB (Max), File format FAT16/FAT32/NTFS
• SD Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 128GB), Storage class Max 128GB, File format FAT16/FAT32/EX-FAT/NTFS
• Power: AC 100V to 240V, 50/60Hz, Power consumption 30W
• Dimensions: 483(W) × 46.5(H) × 274.8(D) mm, Weight 2.64kg
• Operating temperature: 5 to 35°C
• Audio performance: Frequency response 20Hz to 20kHz +/-0.5dB (JEITA), THD 0.03% or less (1kHz, JEITA), S/N ratio 96dB or more (JEITA), Dynamic range 96dB or more (JEITA), Channel separation 89dB or more ( JEITA)

Package Contents

• Remote control unit (RC-BDMP1)
• AC power cord
• Rack-mounting kit
• Owner's manual (with warranty)
