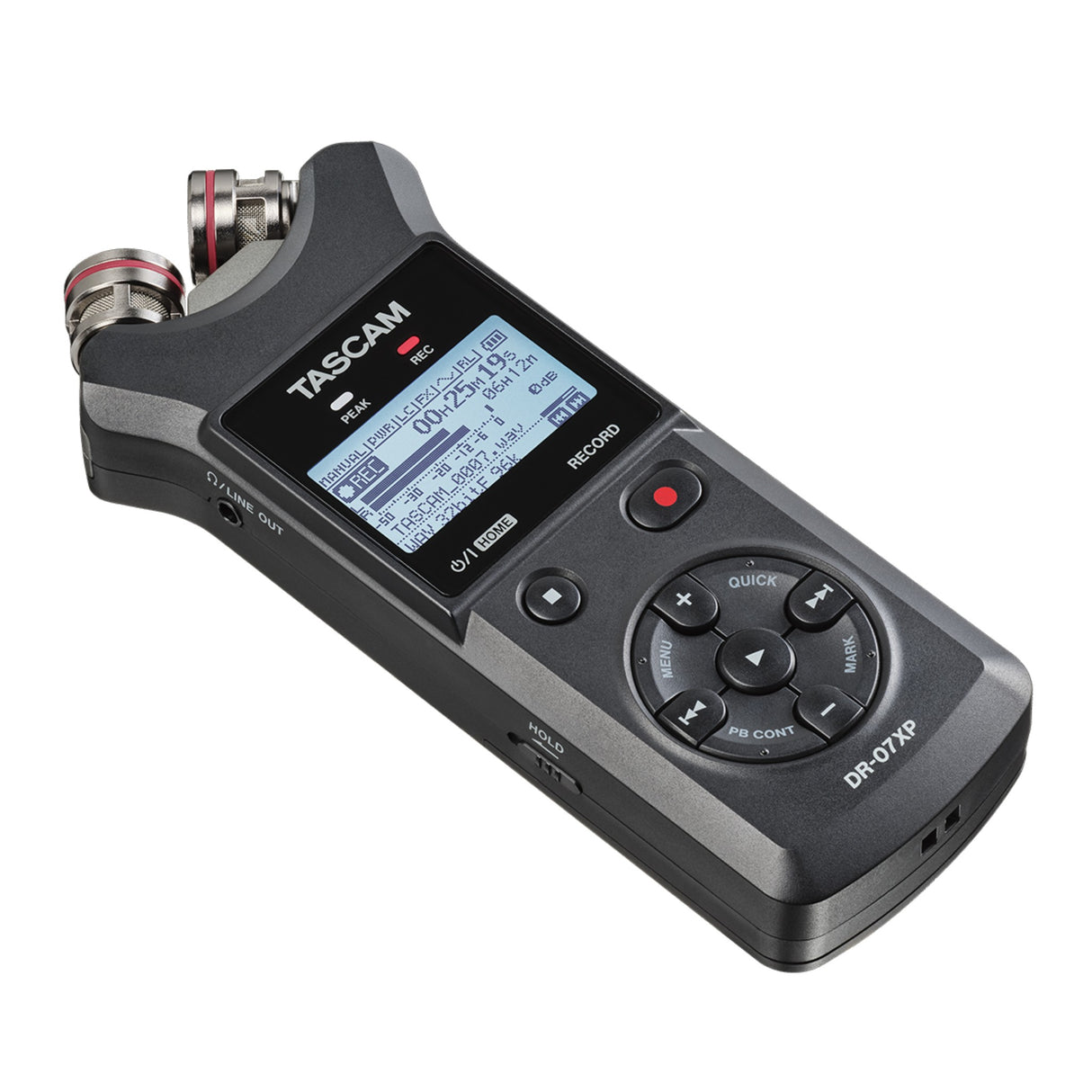

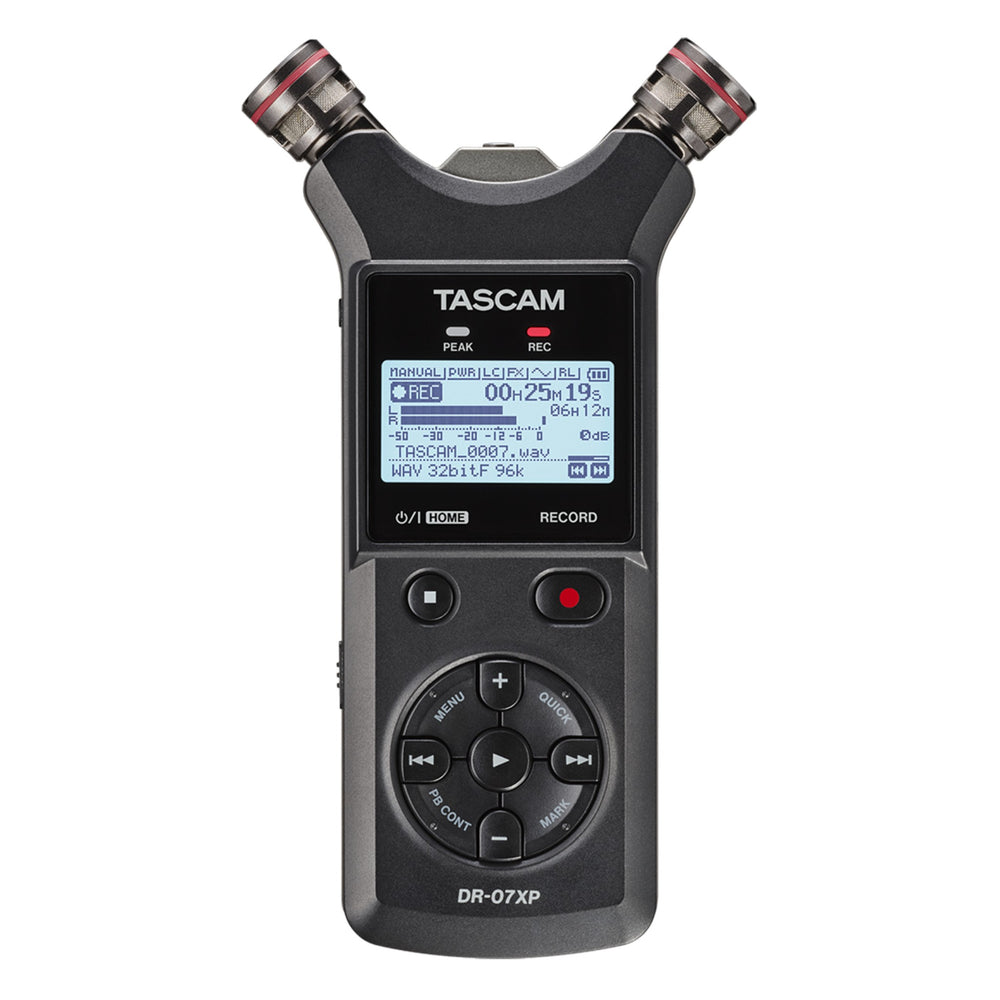

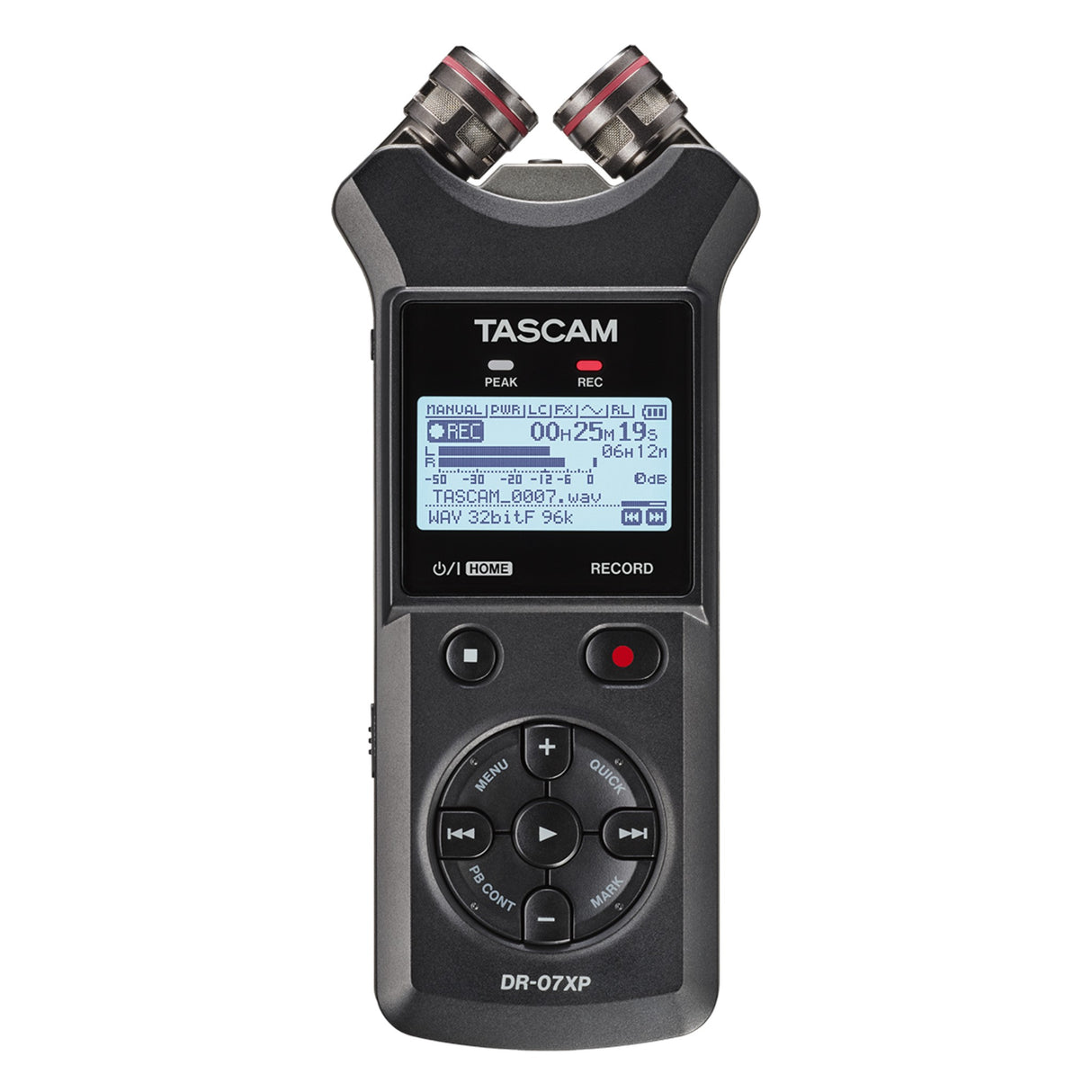

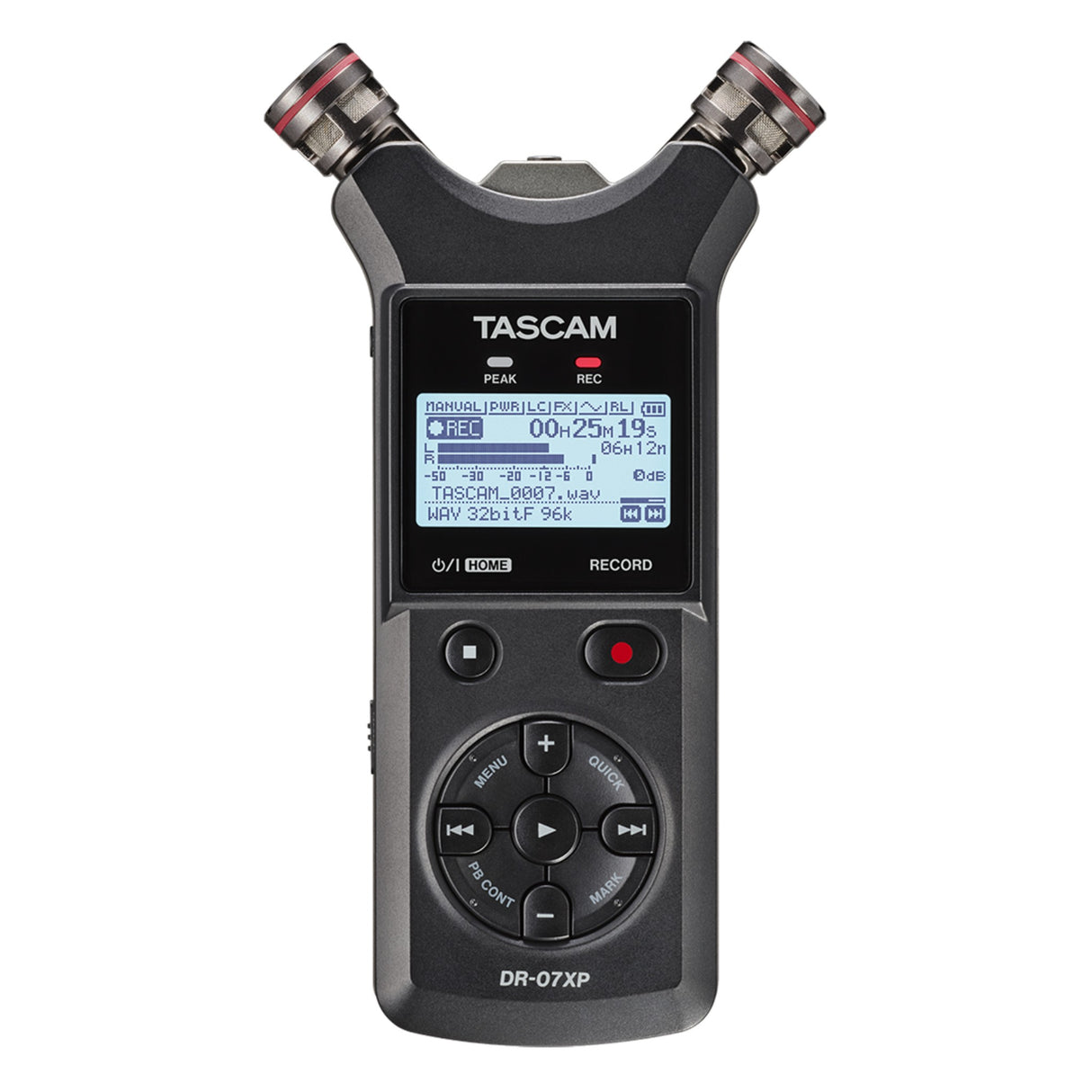

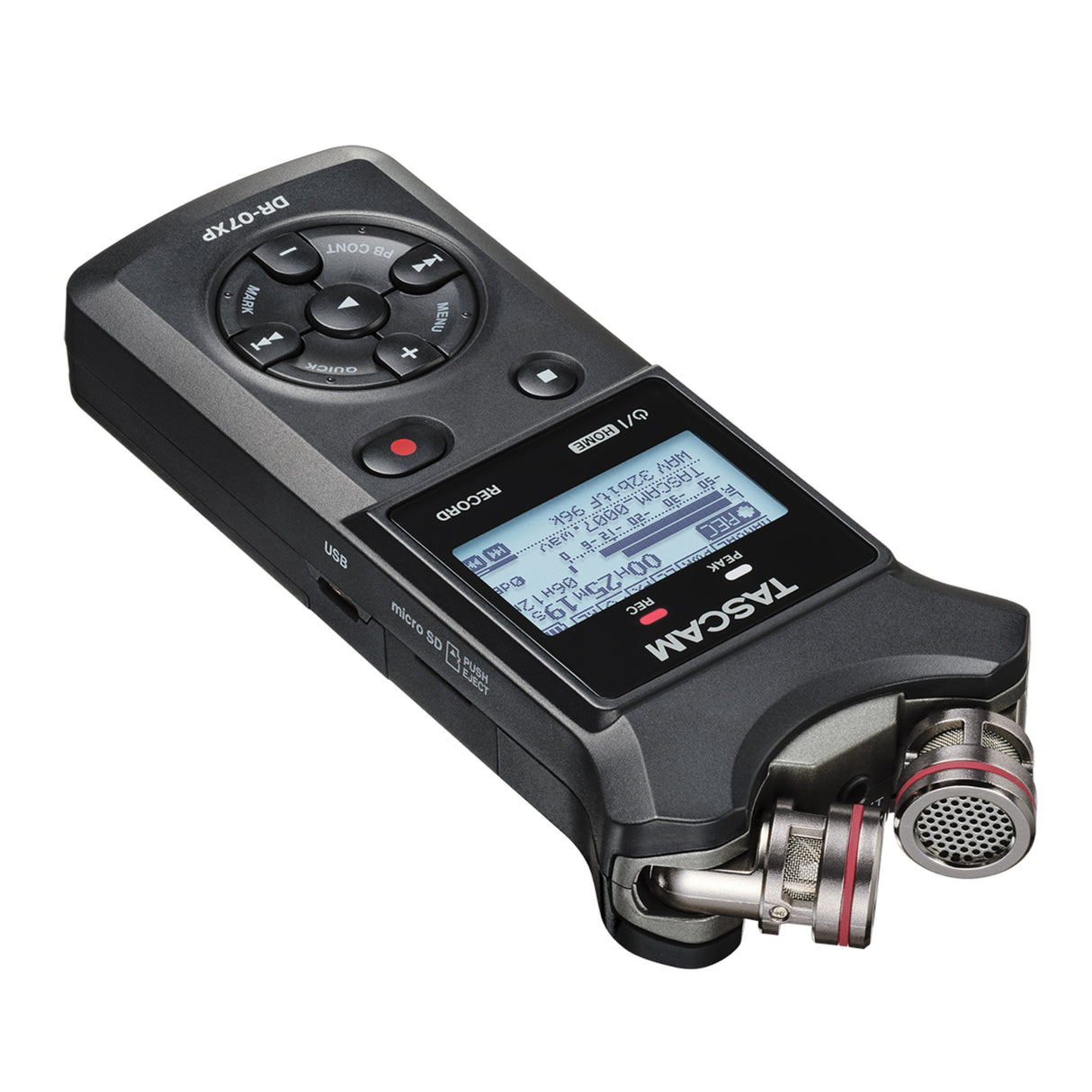

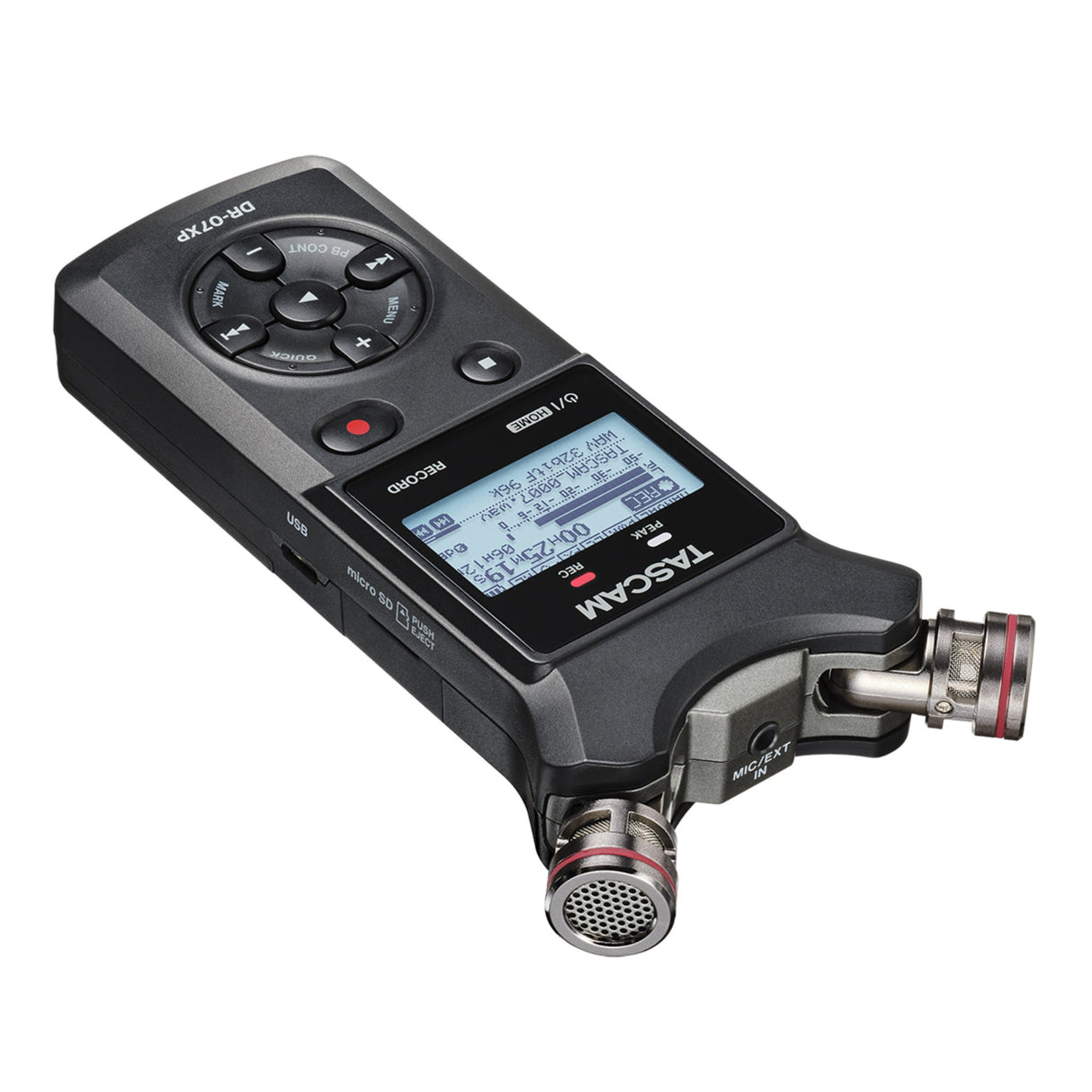

TASCAM DR-07XP 32-Bit Float Handheld Recorder with USB-C Interface
Tascam | SKU: TASCM-DR07XP
1
of
5
Loading...
$15900
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Description
TASCAM DR-07XP 2-Channel 32-Bit Float Handheld Recorder with USB-C
The TASCAM DR-07XP is a portable 2-channel handheld audio recorder designed to make high-quality recording simple and reliable in real-world environments. With flexible WAV and MP3 recording options—including 32-bit float capture—this recorder helps you preserve clean audio whether you’re tracking loud sources, recording interviews, capturing rehearsals, or building content for video.
Built-in adjustable stereo AB/XY condenser microphones handle high sound-pressure levels up to 125 dB SPL, while the DR-07XP also supports external microphones through its 3.5mm stereo MIC/EXT input with plug-in power. When you need a direct connection to a computer, the DR-07XP doubles as a 2-in/2-out USB-C audio interface for streamlined recording workflows.
Key Features of the DR-07XP 32-Bit Float Portable Recorder
- 2-Channel handheld recording: Compact recorder designed for portable stereo capture and simple operation.
- 32-bit float / 24-bit / 16-bit recording modes: Flexible WAV recording options for different production needs.
- Up to 96 kHz sampling: Records WAV (BWF) at 44.1 kHz, 48 kHz, or 96 kHz.
- Adjustable stereo AB/XY condenser microphones: Built-in mics accommodate a wide range of recording situations.
- Handles loud environments: Built-in mics support sources up to 125 dB SPL.
- 2-in/2-out USB-C audio interface: Record directly to a computer via USB audio.
- microSDXC support up to 512 GB: Uses microSD, microSDHC, or microSDXC (up to 512 GB) as recording media.
- Extended portable operation: Up to 17.5 hours operation with 2 x AA alkaline batteries (depending on settings).
- Recording assist tools: Limiter, peak reduction, pre-record, auto record, self timer, and overdubbing.
- Selectable low-cut filters: Four low-cut filter levels (40/80/120/220 Hz) to reduce low-frequency noise.
- Camera-friendly tone: Auto Tone output for use with DSLR camera setups.
- Monitoring & playback options: Stereo line/headphone output plus a built-in monaural speaker for quick checks.
- Music-friendly utilities: Reverb effect and a chromatic tuner for tuning instruments before recording.
- Tripod-ready mounting point: Attaches to standard tripods for stable placement.
- Speed change (VSA): Adjust playback speed from 0.5x to 2.0x in 0.1 increments.
- Multi-language menus: Supports ENG / FRA / DEU / ITA / ESP / RUS / PRT / JPN / CHI / KOR.
Technical Specifications
- Recorder type: 2-channel portable handheld audio recorder
- Recording media: microSD / microSDHC / microSDXC (up to 512 GB)
- Recording formats: WAV (BWF), MP3
- WAV sampling frequencies: 44.1 kHz / 48 kHz / 96 kHz
- WAV bit depth: 16-bit / 24-bit / 32-bit float
- MP3 sampling frequencies: 44.1 kHz / 48 kHz
- MP3 bitrates: 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
- Max input channels: 2
- Max recordable tracks: 2
- MIC/EXT IN connector: 3.5mm (1/8") stereo mini jack (plug-in power supported)
- MIC/EXT IN nominal input level: -20 dBV
- MIC/EXT IN maximum input level: -4 dBV
- MIC/EXT IN input impedance: 18 kΩ or more (plug-in power off); 2 kΩ or more (plug-in power on)
- PHONES/LINE OUT connector: 3.5mm (1/8") stereo mini jack
- PHONES/LINE OUT output impedance: 12 Ω
- PHONES/LINE OUT nominal output level: -14 dBV (10 kΩ loaded)
- PHONES/LINE OUT maximum output level: +2 dBV (10 kΩ loaded)
- Headphone output power: 20 mW + 20 mW (32 Ω load)
- Working impedance: 16–250 Ω
- Built-in speaker: 0.3 W (monaural)
- USB connector: USB Type-C
- USB format: USB 2.0 High Speed Mass Storage Class; USB 1.1 Full Speed Audio Class
- USB audio sampling rate: 44.1 kHz / 48 kHz
- USB audio bit depth: 24-bit
- USB audio I/O: 2 inputs (output from unit) / 2 outputs (input to unit)
- Power: 2 x AA batteries (alkaline or NiMH); USB bus power (5V/0.5A); TASCAM PS-P520U AC adapter (sold separately)
- Power consumption: 1.7 W (maximum)
- Operating temperature: 32–104 °F (0–40 °C)
- Frequency response: 20–20 kHz (+0/−1 dB) at 44.1 kHz; 20–22 kHz (+0/−1 dB) at 48 kHz; 20–40 kHz (+0/−1.5 dB) at 96 kHz (JEITA)
- THD+N: 0.01% or less (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA)
What’s Included
- DR-07XP: 1 unit
- Safety guide (including warranty): 1
- TASCAM ID registration guide: 1
