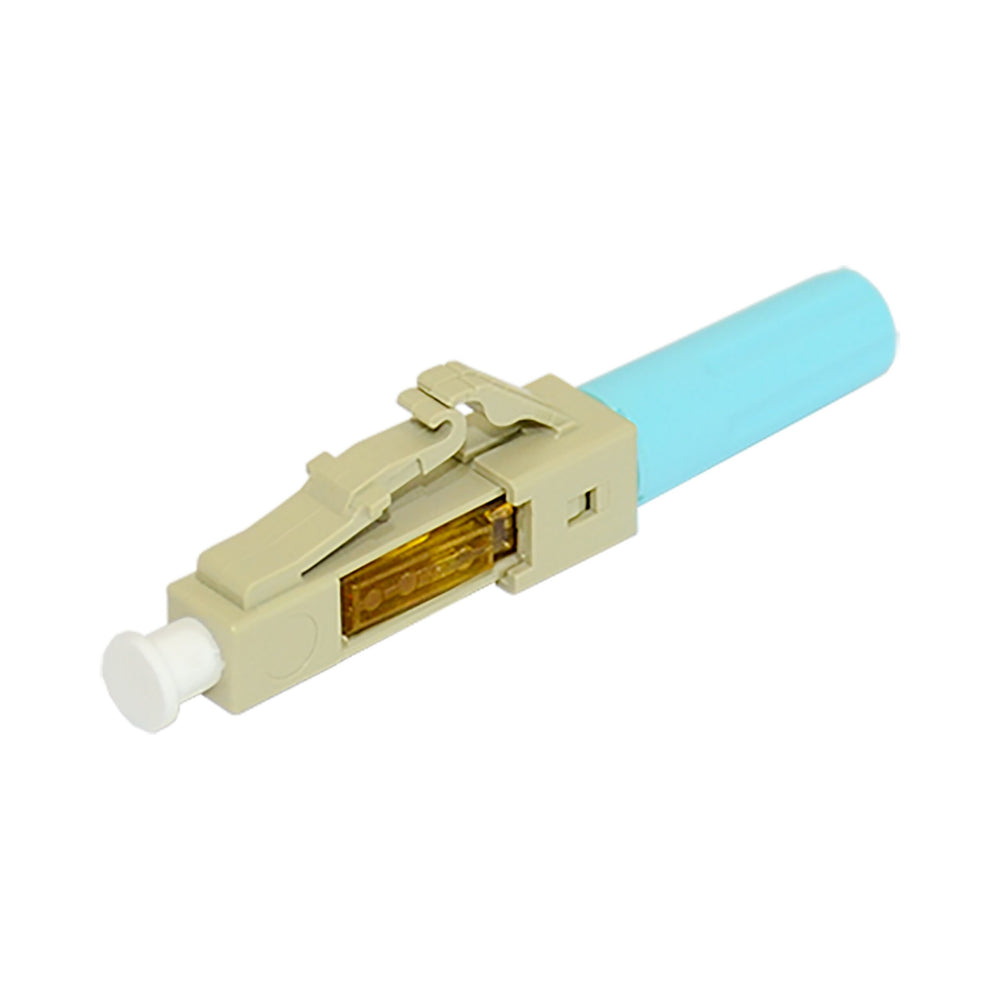

LYNN AV & Security Techlogix Networx MM9-LC Multimode 900um LC Click-On Connector, 1-Unit

TechLogix ECO Series field-installable fiber optic connectors are designed for quick, easy and reliable termination of 250um and 900um fiber cables, including both distribution and zip-cord configurations.

Unlike other connectors which are marketed as “one-size fits all”, ECO Series connectors are specific to 250um and 900um cables to ensure perfect alignment, reducing refraction and signal loss. And regardless of cable, a large built-in verification window, self-centering alignment groove and easy-to-press button for one-click termination ensures installation times around two minutes.

Key Features

• LC type connectors
• Compatible with multimode (OM2, OM3 & OM4) cable
• Compatible with 250um and 900um, including distribution and zip-cord formats
• No proprietary tools required
• No epoxy, crimping or polishing required
• Built-in verification window showing proper termination
• Self-centering alignment groove for easy & reliable insertion of the fiber optic strand
• Built-in button for one click termination & locking jig release
• Average termination time around two minutes
• Re-usable (five or less termination cycles recommended)
