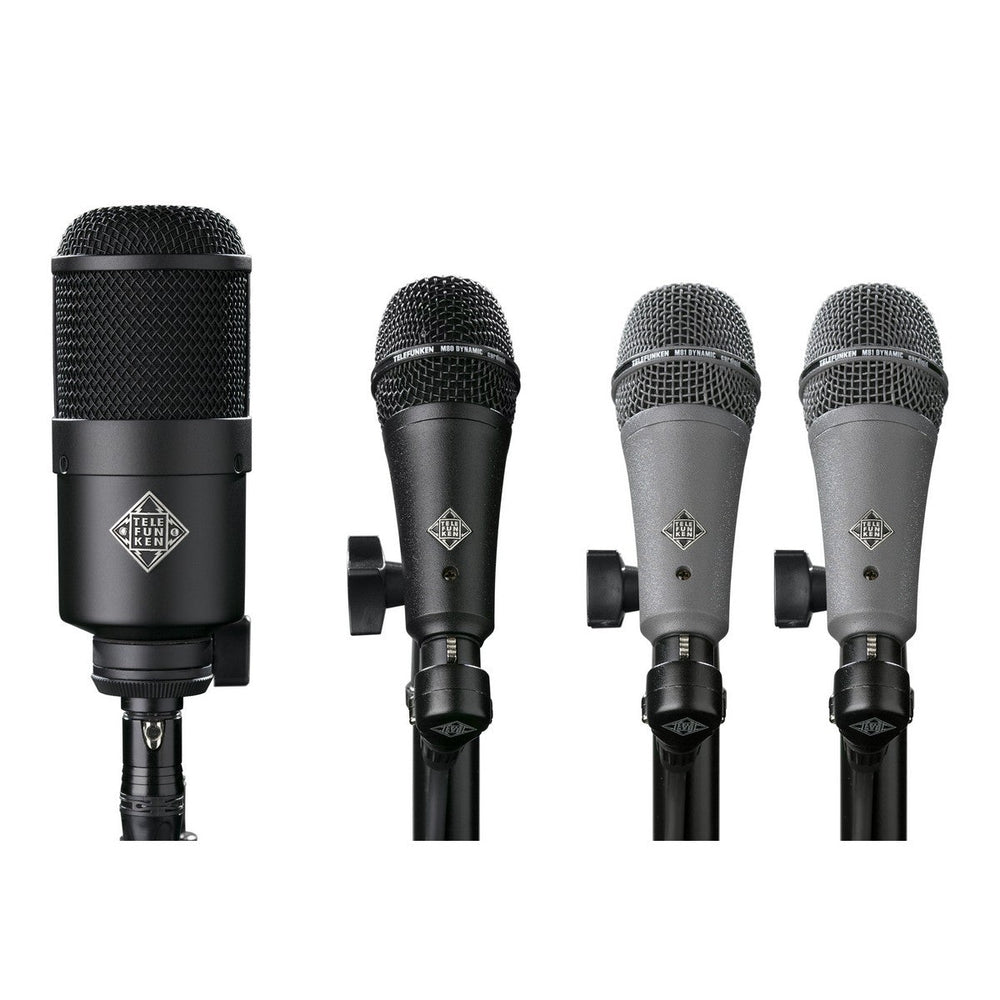

Telefunken DD4 Dynamic Series Drum Microphone Package

The Telefunken DD4 Dynamic Series Drum Microphone Package has combined the three unique voices of its TEC Award winning Dynamic Series microphone line for drum recording and live performance applications.

Each microphone set consists of the M82 handling kick drum duties, the M80-SHB on snare, and the M81-SH for toms. The DD4 and DD5 ship in the heavy-duty hard shell FC80 flight case and include multiple drum mounts (M782, M784 and M785) and a SGMC-5R five-meter XLR cable with a right angle female connector for each microphone in the set.

M80-SHB
TELEFUNKEN Elektroakustik created the M80-SHB for use on snare drum and vocal applications where a lower profile microphone with right angle XLR cable is needed. The M80-SHB is the same exact circuit as the M80 Standard, housed in a shorter microphone body with a built-on stand mount. The wide frequency response and higher SPL capabilities of the M80-SHB offer the user a superior alternative to the midrange-laden character of many of the industry's standard dynamic microphones. A tight cardioid polar pattern and a frequency response boasting a subtle rise in the high end result in a microphone that is equally suitable for snare drum, vocals or instruments on both the stage and the studio. The M80-SHB is finished on both the headgrille and body with a durable, textured black powder coat.

M81-SH
The M81-SH was designed with the goal of developing a mic that would not only complement the M80-SH, but also stand out in a universe filled with dynamic microphone options. Building off many of the strengths of the M80, the TELEFUNKEN M81-SH retains the same minimal proximity effect, superior feedback rejection, and an articulate mid-range. However, with the M81-SH, the top end is pulled back a bit, yielding a flatter overall frequency response. This combination results in a microphone with a wealth of body and clarity, making it a great tool for fattening up toms, percussion and horns, or taming brighter vocals or thinner sounding sources. The M81-SH is identical to the M81 in circuit, but housed in a shorter microphone body with a built-on stand mount, and finished in a durable, textured dark gray powder coat on both the headgrille and body.

M82 Dynamic
The TELEFUNKEN Elektroakustik M82 is a robust large diaphragm end-address dynamic microphone that has been designed for kick drum and vocal broadcast applications. Hand-assembled in CT, USA, the M82 features two independently functioning EQ switches: KICK EQ and HIGH BOOST, which in turn offer four unique voices. The M82's KICK EQ switch engages a passive filter that reduces some of the lower mid-range frequencies (centered around 350Hz) commonly cut when processing a kick drum. The HIGH BOOST switch tilts the upper mid-range and high frequencies (starting around 2kHz with a 6dB boost by 10kHz) to allow for extra articulation. In the flat setting (both switches off), the M82 is equally suited for vocals, guitar amps, and brass.

Key Features

• 1x M82 with M782 mount
• 1x M80-SHB with M784 (metal) and M785 (plastic) mount
• 2x M81-SH with M784 (metal) and M785 (plastic) mount
• 4x SGMC-5R five-meter XLR with right angle female connector
• 1x FC80 Hard Shell Flight Case

Technical Specs

M80-SHB
Type
Dynamic Moving Coil
Capsule
N/A
Frequency Range
30Hz / 18kHz
Polar Pattern
Cardioid
Impedance
200 ohms
Weight
13.1 oz (371g)

M81-SH
Type
Dyanmic Moving Coil
Capsule
N/A
Frequency Range
30Hz / 18kHz
Polar Pattern
Cardioid
Impedance
200 ohms
Weight
13.1 oz (371g)

M82 Dynamic
Type
Dynamic Moving Coil
Capsule
35mm Moving Coil Diaphragm
Frequency Range
25Hz - 18kHz
Polar Pattern
Cardioid
Sensitivity
'-54.6 dBV ±1dB (1.85mV/Pa)
Impedance
<300 ohms
SPL
> 150 dB
Weight
22.4 oz (635g)
Size
6.15" (155mm) length x 2.5" (63mm) diameter
Extras
mic mount, zipper carrying case
