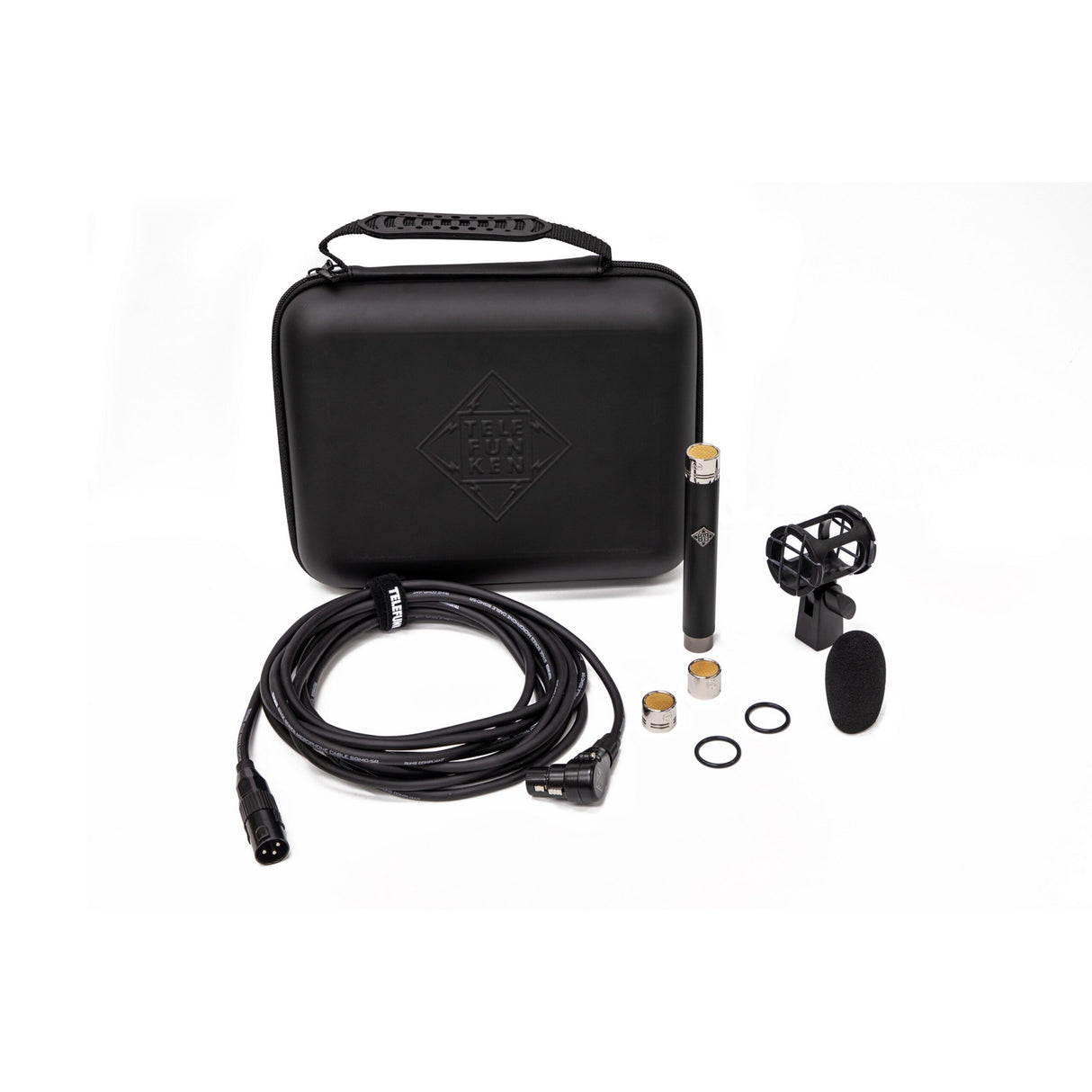

Telefunken M60 MASTER FET with TK60 Cardioid, TK61 Omni, TK62 Hyper-Cardioid Capsules
The M60 FET Series is designed to utilize the same interchangeable TK6x capsules as the TEC Award-winning ELA M 260 small diaphragm tube microphone. The M60 FET Master Set features one M60 amplifier paired with three interchangeable capsules, including the TK60 cardioid, TK61 omnidirectional and TK62 hypercardioid.
Technical Specifications
Type
Pressure Gradient Condenser
Capsule
TK60, TK61, TK62 - 15 mm Edge Terminated Diaphragm
Tube Type
Active FET Transistor (No Vacuum Tube)
Transformer
Custom Wound TELEFUNKEN T61CT
Polar Pattern
Cardioid, Hypercardioid and Omnidirectional
Frequency Range
20 Hz - 31.5 kHz, Ā± 2 dB (Amplifier)
Sensitivity
8.6 mV/PA, Ā± 1dB
THD at 1kHZ at 1Pa (Amplifier)
< 0.01%
Output Impedance
120
Maximum SPL (for 1% THD)
> 130 dB
S/N Ratio
> 89 dBA
Self Noise (Amplifier)
5 dBA
Dimensions
140 mm L x 21 mm Dia
Weight
110 g
Current Draw
2 mA
Power Requirement
+48 VDC Phantom Power
Cable
SGMC-5R - 5 Meter (16.9 ft) Cable, Right Angle Female 3 Pin XLR, 3 Pin Male XLR
Shockmount
M 961 - Suspended Elastic Mount
Flight Case
ZC61 - Soft Foam Zip Case, ZC62 for Stereo Set
