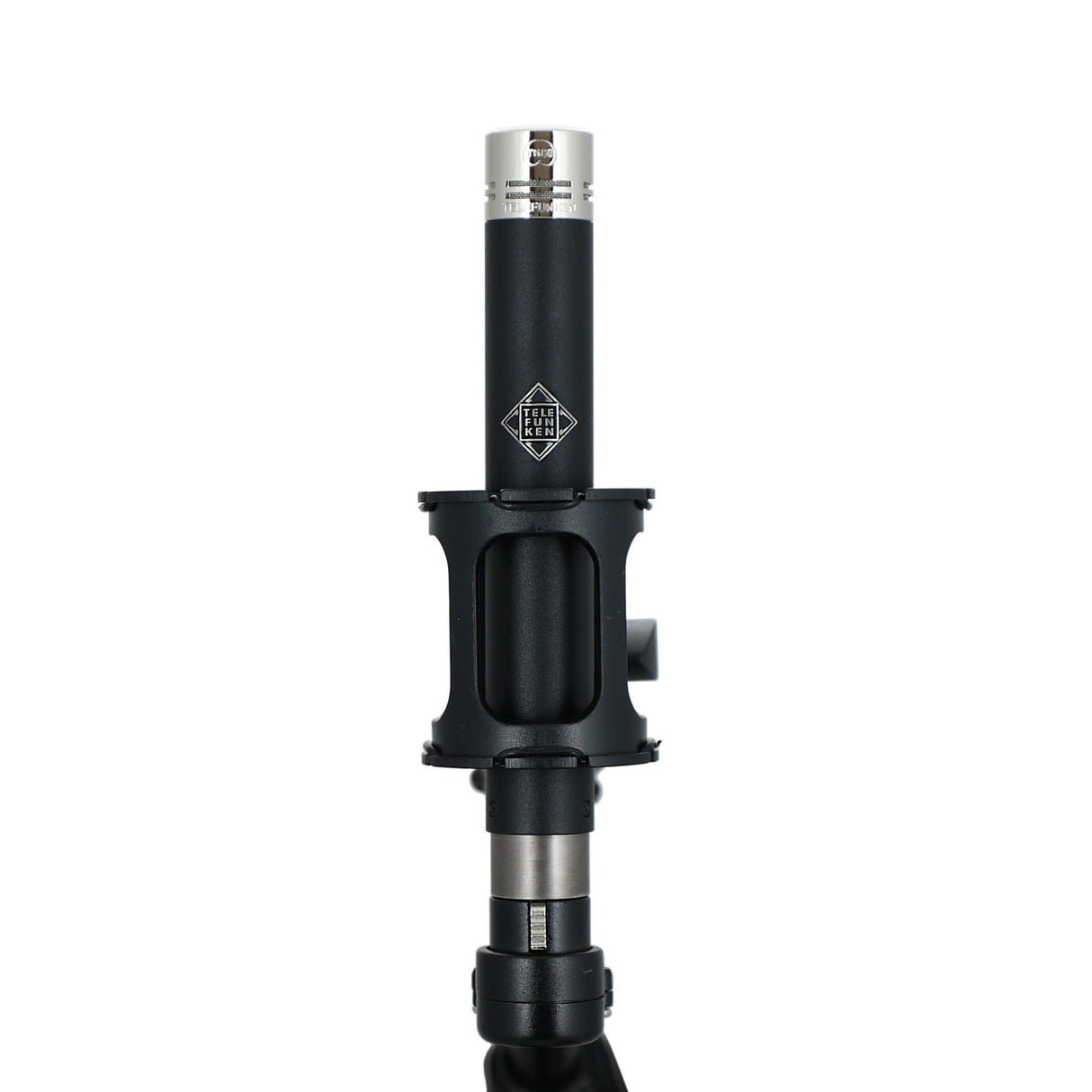

Telefunken M60 Small Diaphragm FET with TK60 Cardioid Capsule
The M60 FET Cardioid package includes one M60 amplifier paired with a TK60 cardioid polar pattern capsule. The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz making it ideal for drum overheads, hi-hat and ride cymbals, piano, acoustic guitar, and other acoustic instruments.
Technical Specifications
Type
Pressure Gradient Condenser
Capsule
TK60 - 15 mm Edge Terminated Diaphragm
Tube Type
Active FET Transistor (No Vacuum Tube)
Transformer
Custom Wound TELEFUNKEN T61CT
Polar Pattern
Cardioid
Frequency Range
20 Hz - 31.5 kHz, Ā± 2 dB (Amplifier)
Sensitivity
8.6 mV/PA, Ā± 1dB
THD at 1kHZ at 1Pa (Amplifier)
< 0.01%
Output Impedance
120
Maximum SPL (for 1% THD)
> 130 dB
S/N Ratio
> 89 dBA
Self Noise (Amplifier)
5 dBA
Dimensions
140 mm L x 21 mm Dia
Weight
110 g
Current Draw
2 mA
Power Requirement
+48 VDC Phantom Power
Cable
SGMC-5R - 5 Meter (16.9 ft) Cable, Right Angle Female 3 Pin XLR, 3 Pin Male XLR
Shockmount
M 961 - Suspended Elastic Mount
Flight Case
ZC61 - Soft Foam Zip Case, ZC62 for Stereo Set
