Telefunken TDP-1 Passive Mono Direct Injection Box

Telefunken | SKU: TELE-TDP1
$21900

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New

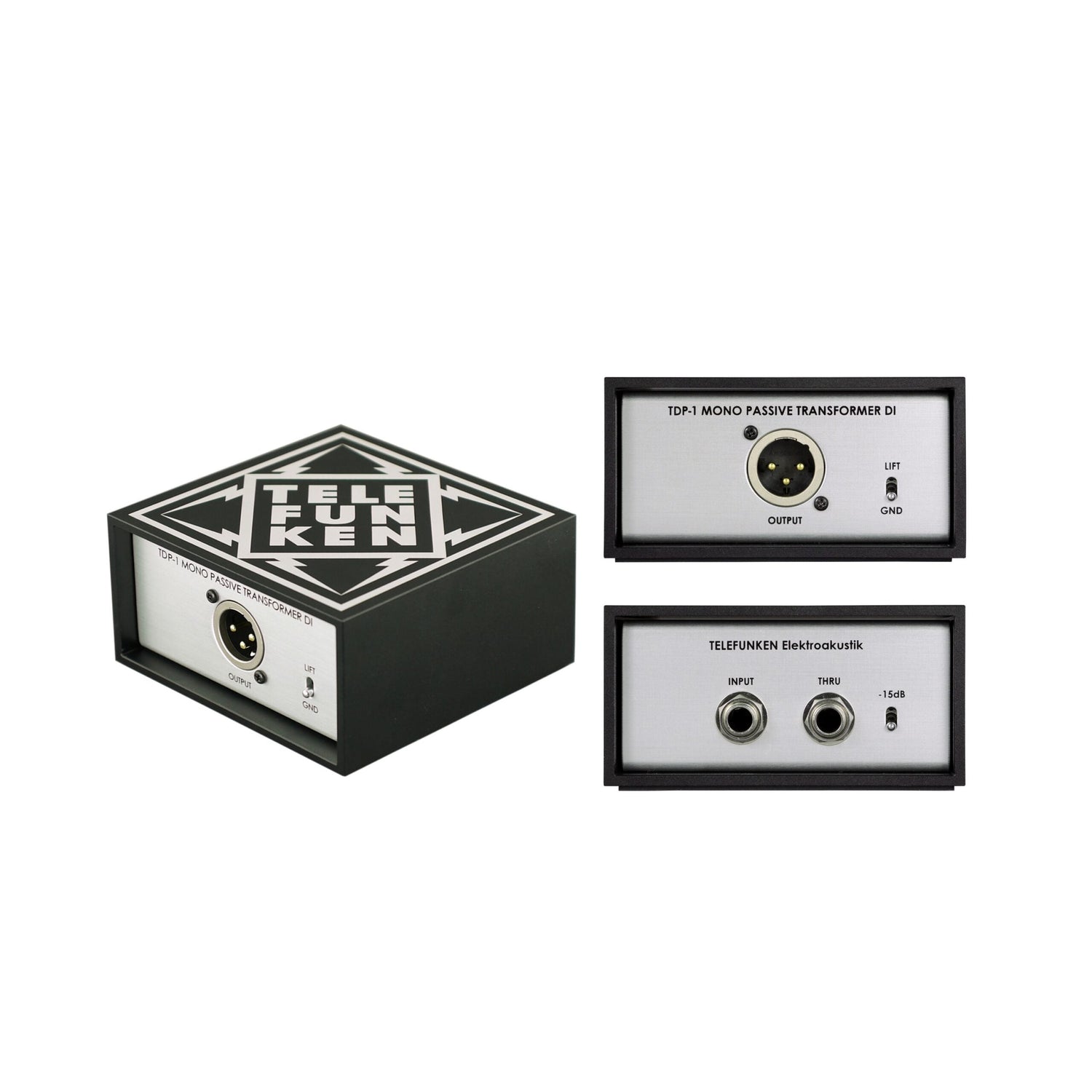

Telefunken TDP-1 Passive Mono Direct Injection Box

The Telefunken TDP-1 (mono unit) and TDP-2 (dual unit) are new passive direct box designs that combine premium quality components with a rugged construction to create a reliable DI with rich, warm tone. Utilizing an OEP/Carnhill transformer made in the UK, mated with a simple "less is best" design approach, the Telefunken passive DI's provide superior vibe and character to best complement the natural tone and feel of your instrument.

Key Features

  • Custom-wound OEP/Carnhill transformer, made in the UK
  • -15 dB pad switch
  • Ground lift switch
  • Rugged aluminum construction
  • Recessed switches and connectors for protection
  • 100% through-hole components
  • Amphenol connectors
  • WIMA and Nichicon capacitors
  • 1% 1/4W metal film resistors
  • 3-year warranty

Technical Specifications

Channels
1
Transformer
Custom-Wound OEP/Carnhill Transformer
Frequency Range
10 Hz - 70 kHz, Ā±1 dB
Input Impedance
> 20k
Output Impedance
< 200
Weight
482 g
Dimensions
100 mm L x 100 mm W x 50 mm H
Maximum Input
>+18dBV
Input Connection
1/4" Jack
Output Connection
XLR Output, 1/4" Thru
