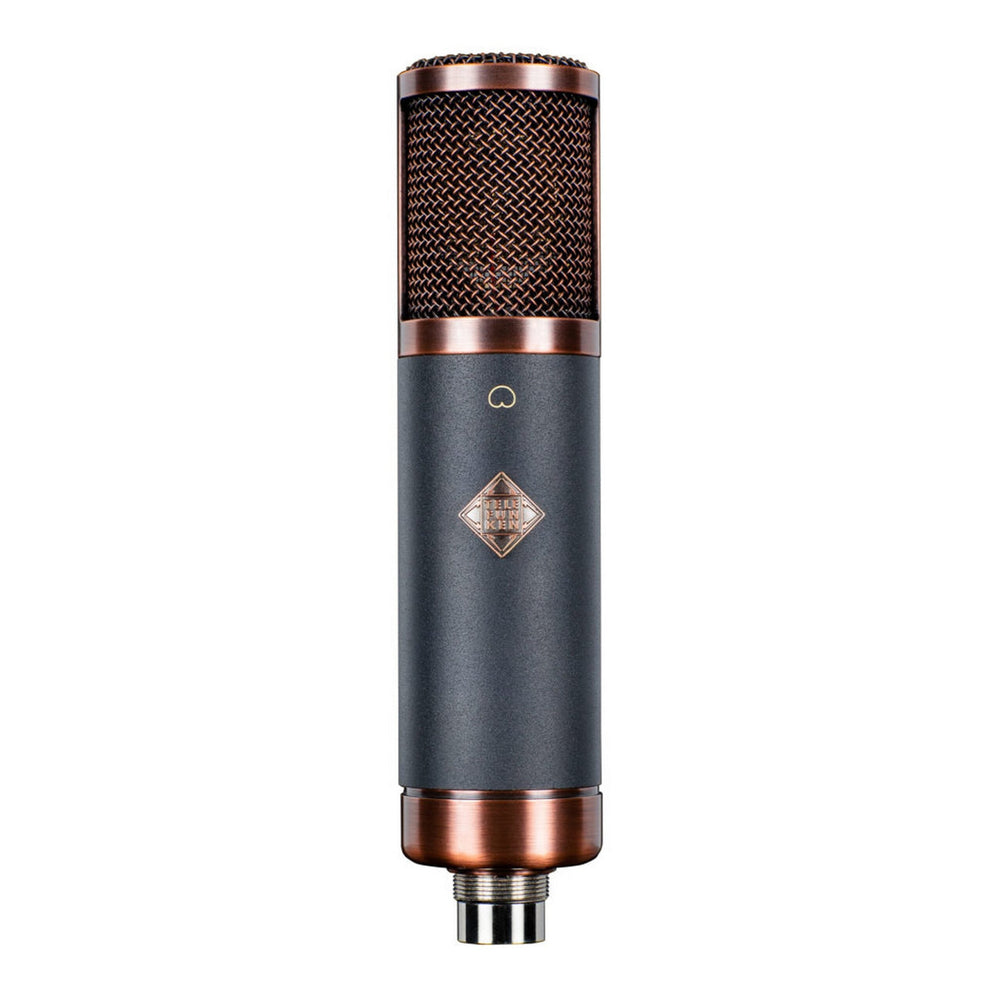

Telefunken TF29 Cardioid Large Diaphragm Microphone System
The TF29 Copperhead is an evolution of the CU-29 Copperhead, an original TELEFUNKEN Elektroakustik design that garnered fans for its natural and non-hyped tonality and unparalleled “quality for price”. The TF29 continues this reputation of outstanding sonic performance and value. It’s a workhorse microphone, accurately and honestly capturing vocals, acoustic and electric guitar, drums, and nearly any source put in front of it.
Key Features
- Designed and assembled by hand in the USA
- Pleasant, natural mid range
- Extended low frequency response
- Stand out antique copper finish
- Premium EU-made Lundahl transformer
Technical Specifications
Type
Condenser Pressure Gradient
Capsule
TK67S Center Terminated Diaphragm
Tube Type
5654W (New Old Stock)
Transformer
Lundahl LL 1935
Polar Pattern
Cardioid
Frequency Range
20Hz - 20kHz
Sensitivity
17mV/Pa
THD at 1kHZ at 1Pa (Amplifier)
< 0.3%
Output Impedance
< 300
Maximum SPL (for 1% THD)
130 dB
S/N Ratio
87 dBA
Self Noise (Amplifier)
7 dBA
Dimensions/Size
200 mm L x 46 mm Dia
Weight
650 g
Current Draw from Mains
50 mA
Power Supply
M 902 PSU - 7 Pin Female XLR Input, 3 Pin Male XLR Output
Cable
M 803 - 7 Meter TELEFUNKEN Tube Microphone Cable, 7 Pin Male & Female XLRs
Shock Mount
M 703 - Shock Mount, M 782 - Stand Mount
Flight Case
ZC03 - Light Weight Carrying Case
