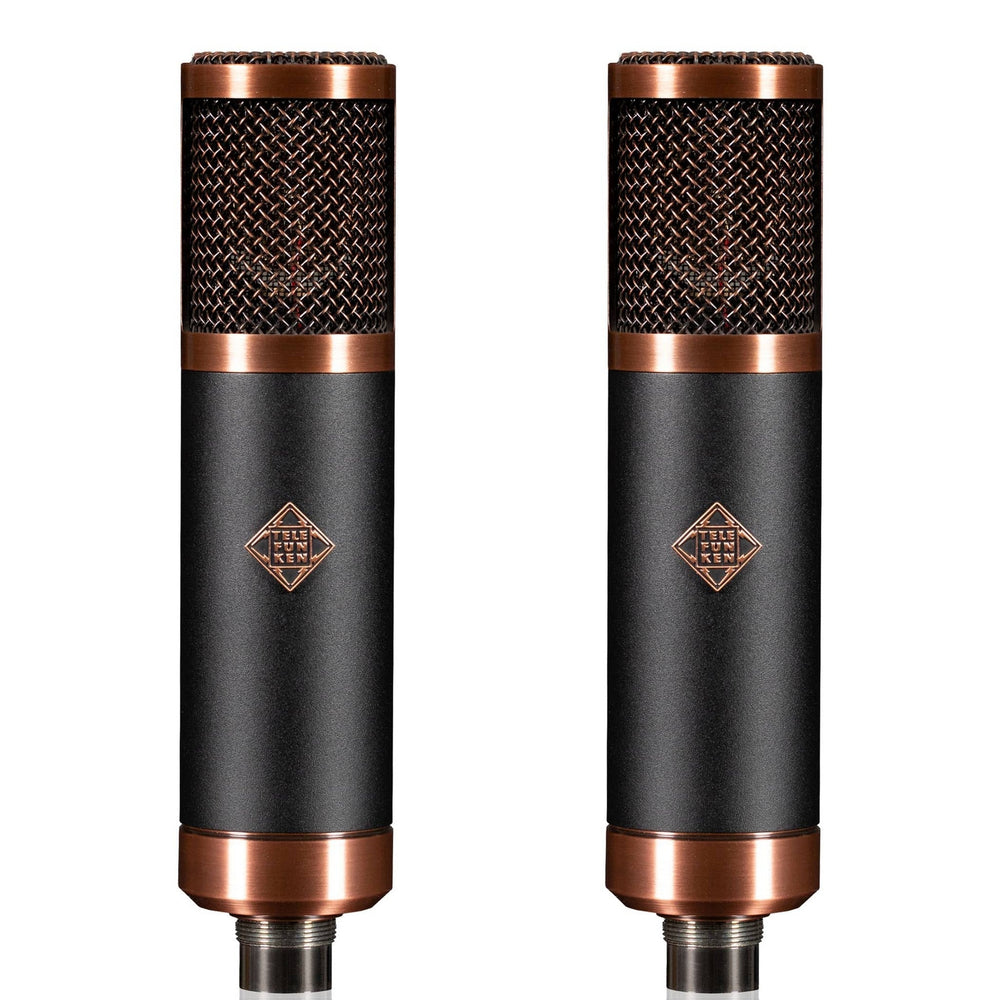

Telefunken TF39 3-Pattern Large Diaphragm Microphone System, Matched Frequency Pair
Telefunken TF39 3-Pattern Large Diaphragm Microphone System, Matche...
The Telefunken TF39 3-Pattern Large Diaphragm Microphone System, Matched Frequency Pair emerges as a powerful contender in the large-diaphragm, three-pattern tube microphone market. This microphone system takes the renowned "Copperhead" sound as its foundation, famed for its balanced midrange, natural highs, and extended low-end response. But the TF39 Copperhead Deluxe goes a step further by offering the versatility of three selectable polar patterns: cardioid, omnidirectional, and figure-eight. This expanded functionality empowers you to achieve the perfect pickup for a wider range of recording scenarios, from crisp vocals to rich instrument tones.
The secret to the TF39 Copperhead Deluxe's sonic prowess lies in its premium components. A Swedish-made Lundahl output transformer meticulously translates the captured sound with exceptional clarity, while a New Old Stock General Electric 5654W vacuum tube imbues recordings with a classic warmth. Each TF39 Copperhead Deluxe is meticulously hand-assembled in the USA, ensuring not only top-notch quality but also a level of craftsmanship that audiophiles will appreciate.
Beyond its sonic capabilities, the TF39 Copperhead Deluxe boasts impressive versatility. This microphone system is equally at home in professional studios and personal recording spaces. Its adaptability makes it a valuable asset for capturing a vast array of instruments and sound sources. Whether you're aiming to capture the nuanced details of a vocal performance, the raw power of a guitar amp, the smooth tones of a saxophone, or the intricate details of drum overheads, the TF39 Copperhead Deluxe is up to the challenge.
To ensure you have everything you need to start recording right away, a complete TF39 Copperhead Deluxe system comes equipped with two TF39 microphones, two M 903 power supplies, two 7-meter M 803 tube microphone cables, two ZC03 zipper cases for secure storage, two M 703 shock mounts to minimize unwanted vibrations, two M 782 stand mounts for flexible microphone placement, and two MS01 microphone sleeves for additional protection. Investing in the Telefunken TF39 Three-Pattern Copperhead Deluxe Large Diaphragm Microphone System equips your studio with a microphone system designed to deliver professional sound quality and exceptional versatility.
Key Features
- Well-balanced and organic midrange and high frequency
- Enhanced low frequency extension
- Choose between Cardioid, Omni, and Figure 8 polar patterns
- Features high-quality Lundahl output transformer from Sweden
- Utilizes vintage General Electric 5654W vacuum tube
- Handcrafted and designed in the United States
- Ideal for vocals, guitar amps, saxophone, and drum overheads
- Provides a natural and even sound reproduction
- Offers versatility in recording various instruments
- Crafted with attention to detail for premium audio performance
Technical Specifications
Type
Vacuum Tube Condenser
Polar Pattern
Cardioid, Omnidirectional, Figure-8
Frequency Range
20 Hz – 20 kHz, ±3 dB
Power Source
External Power Supply
Capsule
TK67 Center Terminated Large Diaphragm
Tube
NOS GE 5654W
Transformer
Lundahl LL1935
Sensitivity
17 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier)
< 0.3%
Output Impedance
< 300 Ω
Maximum SPL (for 1% THD)
130 dB
S/N Ratio
87 dBA
Self-Noise (Amplifier)
7 dBA
Dimensions
200 mm L x 46 mm Dia
Weight
650 g
Included Accessories
Tube Mic Cable x2
Power Supply x2
Shock Mount x2
Stand Mount x2
Mic Sleeve x2
Carrying Case x2
