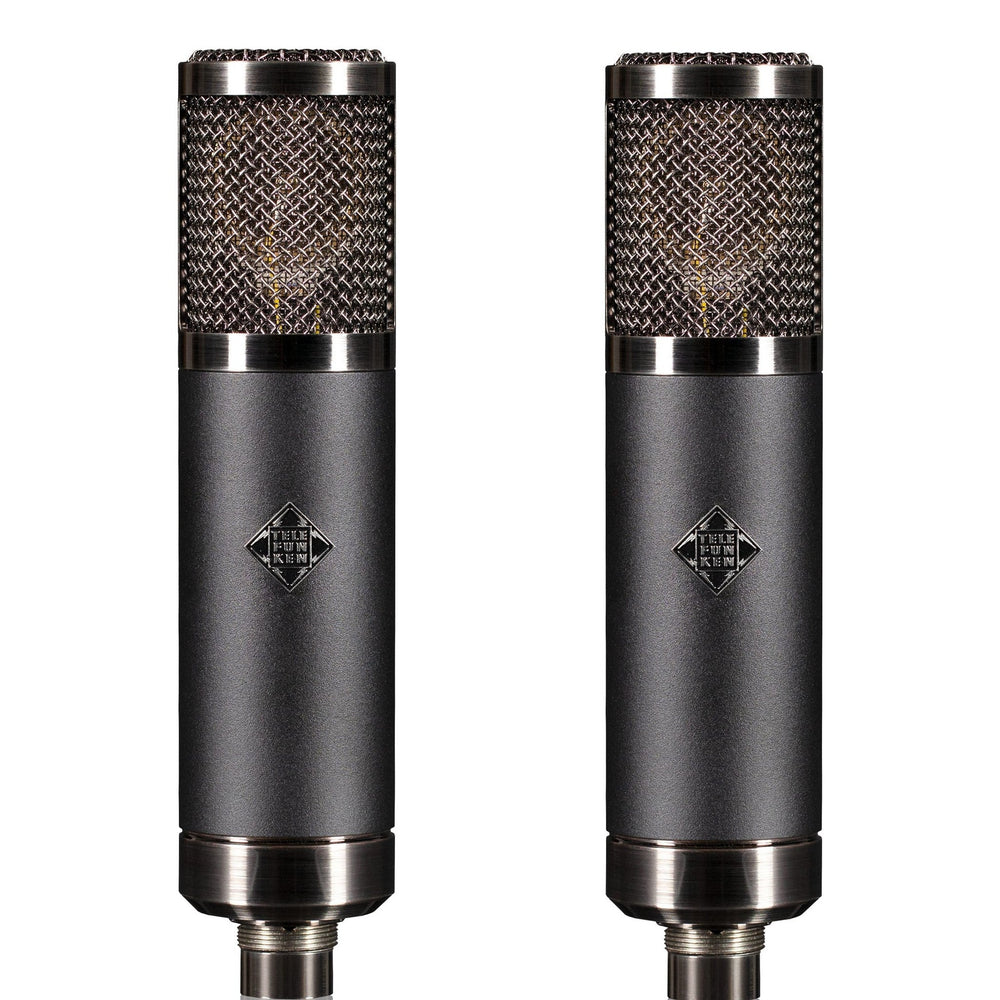

Telefunken TF47 3-Pattern Large Diaphragm Microphone System, Matched Frequency Pair
Telefunken TF47 3-Pattern Large Diaphragm Microphone System, Matche...
The Telefunken TF47 3-Pattern Large Diaphragm Microphone System, Matched Frequency Pair infuses your recordings with the iconic "German sound" revered by professional studios worldwide. Drawing inspiration from the legendary U47 and M49 microphones, the TF47 delivers a rich low end that provides a solid foundation for your sound. This deep low end isn't just about adding power; it creates a platform upon which the rest of your sonic tapestry unfolds. The TF47's forward midrange brings clarity and presence to vocals and instruments, ensuring they cut through the mix without sacrificing detail. But the magic doesn't stop there. The TF47 boasts smooth, detailed highs that perfectly sit within your mix, adding an airy quality and a touch of brilliance without ever sounding harsh or fatiguing.
This sonic power isn't limited to just specific instruments. The TF47's versatility allows it to excel at capturing the nuanced character of vocals, faithfully reproducing every breath and inflection. It can handle the power and complexity of guitar amps and drums, ensuring every nuance of your performance is captured. And for those delicate instruments that require a touch of finesse, the TF47 is equally adept. The microphone's detailed response perfectly captures the subtle articulation of pianos, brass instruments, bass, cello, and more. Whether you're a professional studio engineer with a discerning ear for tonal quality or a musician seeking to elevate your home recordings to the next level, the TF47 empowers you to achieve stunning results.
At the heart of the TF47's tonal magic lies a meticulously crafted K47-style capsule. This capsule design, paired with a new old stock 5840W vacuum tube and a custom-made BV8 transformer, meticulously recreates the sonic character that made the U47 a legend in the world of audio recording. Each TF47 is then designed and hand-assembled in the USA, ensuring not only exceptional quality but also the reliable performance you need to capture your creative vision. You can be confident that the Telefunken TF47 Three-Pattern Large Diaphragm Microphone System will not only keep up with your demands but will inspire you to push your creative boundaries.
Key Features
- Enhanced low frequency and prominent midrange
- Silky and intricate high frequency
- Option to choose from Cardioid, Omni, and Figure 8 polar patterns
- Brand new Philips/Raytheon 5840W vacuum tube
- Equipped with K47-style capsule and durable BV8 output transformer
Technical Specifications
Type
Vacuum Tube Condenser
Polar Pattern
Cardioid, Omnidirectional, Figure-8
Frequency Range
20 Hz ā 20 kHz, Ā±3 dB
Power Source
External Power Supply
Capsule
TK47 Center Terminated Large Diaphragm
Tube
NOS Philips/Raytheon 5840W
Transformer
TELEFUNKEN Elektroakustik BV8
Sensitivity
22 mV/Pa, Ā±1 dB
THD at 1kHZ at 1Pa (Amplifier)
< 0.3%
Output Impedance
< 300 Ī©
Maximum SPL (for 1% THD)
125 dB
S/N Ratio
84 dBA
Self-Noise (Amplifier)
10 dBA
Dimensions
200 mm L x 46 mm Dia
Weight
710 g
Included Accessories
Tube Mic Cable x2
Power Supply x2
Shock Mount x2
Stand Mount x2
Mic Sleeve x2
Carrying Case x2
