E-Image EG25A2D 2-Stage Aluminum 100mm Fluid Head Tripod and Dolly Kit
E-Image EG25A2D 2-Stage Aluminum 100mm Fluid Head Tripod and Dolly Kit
E-Image EG25A2D 2-Stage Aluminum 100mm Fluid Head Tripod and Dolly Kit

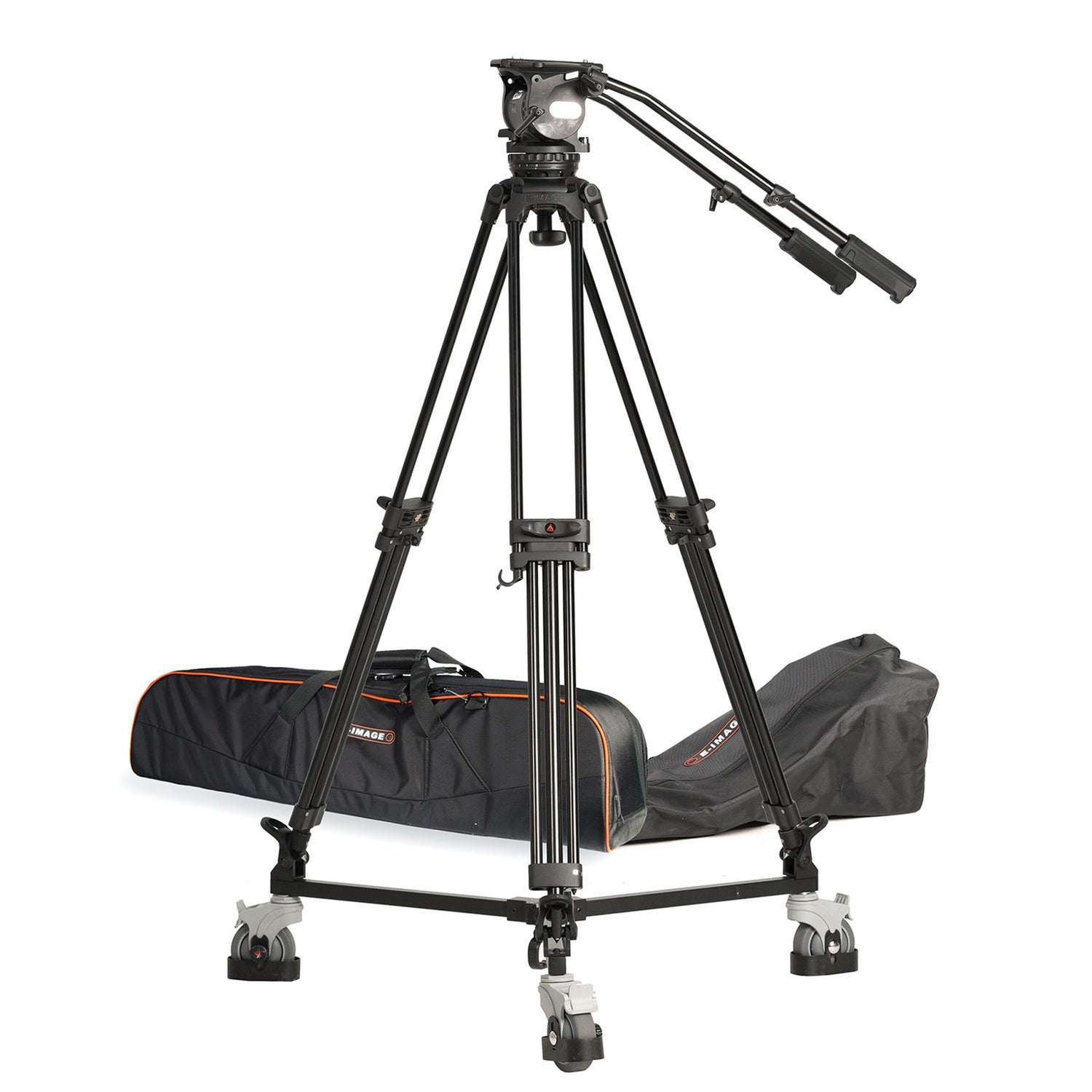

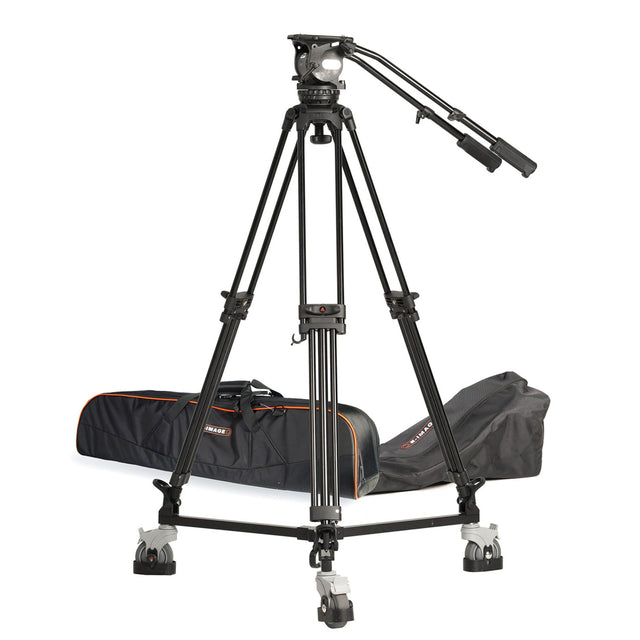

The EG25A2D is designed for heavy loads and lots of rig accessories. With a maximum payload of 61.7 lbs., you can load this kit down with everything you need for the perfect, fluid shot. Teleprompters, matte boxes, base plates, follow focuses, filter systems, monitors, and on-camera lights are just some of what you can pile on to this kit and still have room to spare. The EG25A2D is a complete tripod kit that utilizes a 100mm bowl and also includes a dolly. The tripod kit & dolly come with their own carrying bags.
COUNTERBALANCE
The fluid head features adjustable counterbalance & drag settings that can be adjusted to accommodate different weight payloads. Counterbalance can be dialed into any of 15 stages ranging from 1 to 15. Pan and tilt drag can be independently adjusted in eight stages ranging from no drag at 0 to extra drag at 7.
SLIDE RANGE
The 60mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 5.7 inches of sliding range to counterbalance your entire camera setup.
PAN & TILT LOCKS
The fluid head features individual locks for both the pan and tilt.
DUAL PANHANDLES
The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7" to 24"
100MM BOWL
The fluid head includes a 100mm bowl mount with a twist lock to secure the teleprompter and camera payload.
HEAVY-DUTY TRIPOD
The heavy-duty tripod is made of aluminum and the legs are a twin tube design with two stages. It includes the E-Image Mono-Lock design which allows you to control the height of both stages with a single twist lock. The full system, once completely assembled, can be adjusted to a maximum height of 75.5ā and a minimum height of 37ā.
HIGH-CAPACITY DOLLY
The EI-7004B comes with cable guards and allows for quick and smooth movement for tripods weighing up to 132 lb. It is equipped with individually braked 4" wheels with cable guards and folds for easy transporting. Itās designed for use with all E-Image tripod legs that feature dual spiked feet. It'supports up to 132 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots and is designed to help you move heavy tripods from one camera position to the next.
This tripod dolly features 4"-diameter, non-marring rubber wheels with individual brakes, and a 39.4" working base diameter. Once removed from your tripod legs, it folds for storage or transport.
Key Features
- Recommended Payload: 61.7 lbs / 28 kg
- 1-15 Counter Balance Stages
- 7 Stages of Independent Pan & Tilt Drag
- 100mm Bowl System
- Mono-Lock for Quick Height Adjustment from 37 - 75.5"
- Includes Carrying Bags for Tripod and Dolly
Technical Specifications
Shipping Weight (lbs)
46
Shipping Dimensions (in)
46 x 23 x 11
Tripod
Payload Capacity
61.7 lbs / 28kg
Height Range
37 - 75.5"
Fluid Head
Head Payload Capacity
61.7 lbs. - 28kg
Bowl Size
100mm
Counterbalance System
Stepped, 1-15
Pan Drag Settings
0-7
Tilt Drag Settings
0-7
Tilt Lock
Thumb Lock
Tilt Range
-80Ā°/+90Ā°
Bubble Level
Yes- Illuminated
Pan Handle Length Range
16.7 in. - 24 in.
Net Weight
9.2 lbs./4.2kg
Net Weight w/ Pan Handles
11 lbs./4.98kg
Sliding Plate Range
5.7 in./145mm
Temperature Range
-40 Degrees F - 194 Degrees F
Camera Plate Length
6.3 in./ 160mm
Dolly
Net Weight
15 lbs./6.8 kg
Footprint Diameter
39.4 in./100 cm
Cable Guard Diameter
4.92 in./12 cm
Height
6.7 in./17 cm
Radius
19.7 in./50 cm
Wheel Width
3.9 in./100 mm
Lockable Wheels
Yes
Build Material
Legs: Aluminum | Wheels: Rubber | Screws: Steel
Payload
132.3 lbs./60 kg.
UPC Code
847983033690
