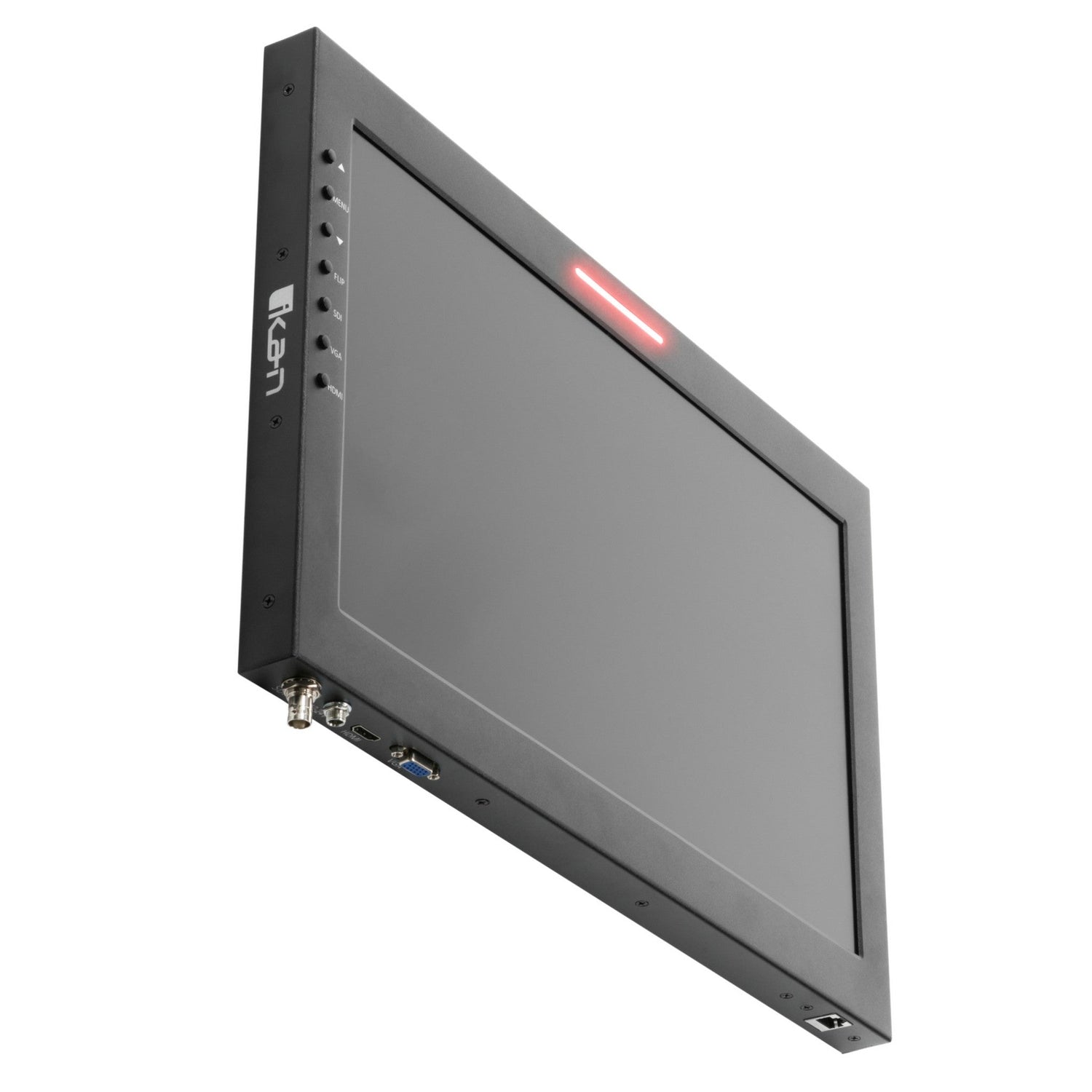

Ikan M19W 19-Inch High-Bright Teleprompter LED Widescreen 3G-SDI Monitor

Ikan M19W 19-Inch High-Bright Teleprompter LED Widescreen 3G-SDI Monitor

WIDESCREEN TELEPROMPTER MONITOR
The 19-inch Widescreen Talent Monitor is designed to conveniently attach below the teleprompter to enable on-screen talent see their presentations live. The monitor features 3D-SDI, HDMI, and VGA, inputs. The native resolution is 1920 x 1080 HD and max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. When plugged into a compatible video switcher, the talent monitor utilizes a red/green tally light that lets you know when your camera is live. The M19W includes a 15mm mounting system that connects talent monitor to the teleprompter.

IMAGE FLIP BUTTON
The M19W Monitor features an image flip button that allows for both horizontal and vertical flipping of the displayed image. This feature enables on-camera talent to view themselves as if they were looking into a mirror, giving a greater sense of comfort during filming.

BUILT-IN TALLY LIGHT FOR ON AIR STATUS
The M19W features a tally light that illuminates red, green, and yellow. This means that a director can cut between cameras and the tally color will let the on-camera talent know which camera is live. Yellow tally lights are typically used as a way to signal to the talent, crew, and director that a camera is about to go live, and to be ready for the shot. A green tally light is typically used to indicate that a camera is in preview mode. This means that the camera’s output is being sent to a monitor, but it is not currently on air. This allows the talent, director, and production crew to check the composition, focus, and other aspects of the shot before it goes live. A red tally light is used to indicate when a camera is live or on-air.

Key Features

• 19-inch Widescreen Teleprompter Monitor
• Features Image Flip Button
• 1080p Resolution
• Built-in Tally Light
• 1000 nit high-bright monitor
• Sturdy Aluminum Chassis
• 19 in. Diagonal Screen Size
• 3G-SDI, VGA, and HDMI Inputs

Technical Specifications

19 in. Widescreen Talent Monitor
Aspect Ratio
16:9
Maximum Brightness
1000 cd/m2
Screen Size (Diagonal)
18.5 in.
Mount
VESA 100mm
Video Inputs
SDI, HDMI, VGA
Input Voltage
DC 12v / 5A
Power Consumption
36W
Weight of Monitor
5.73 lbs.
Product Dimensions
18.3” x 12.3” x 1.2”
Native Resolution
1920 x 1080
Viewing Angle
178° (H) / 178° (V)
Build Material
Aluminum Chassis
Image Flip
Horizontal: Yes | Vertical: Yes
Tally Interface
RJ45
Supported Video Signal
HDMI
720x480i & 720x480p @ 59.94, 60 Hz
720x576i & 720x576p @ 50 Hz
1280x720p @ 50, 59.94,60 Hz
1280x1024 @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94,60 Hz
1920x1080psf @ 24, 25,29.97, 30 Hz
1920x1080p (Native) @ 23.98, 24,25, 29.97,30, 50,59.94, 60 Hz
SDI
720x480i @ 59.94, 60 Hz
720x576i @ 50 Hz
1280x720p @ 50, 60 Hz
1280x1024 @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94,60 Hz
1920x1080psf @ 24, 25,29.97, 30 Hz
1920x1080p (Native) @ 23.93, 24,25, 29.97,30, 50,59.94, 60 Hz
UPC Code
847983034499
