Teradek Ranger MK II 5000 Wireless 4K HDR Video System, 5000-Feet Range, Configurable Mounts and Kits - Transmitter and Receiver / Gold Mount
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

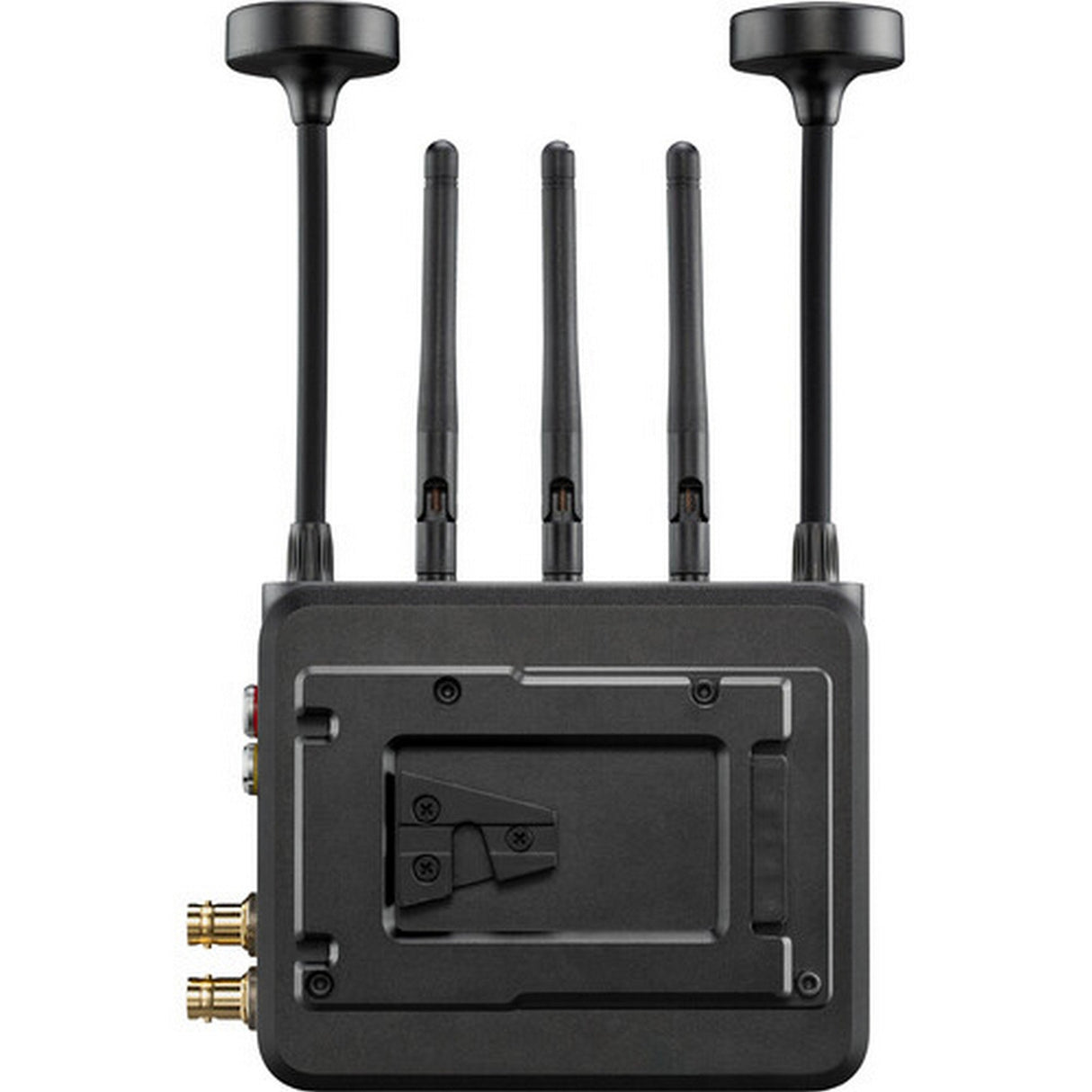

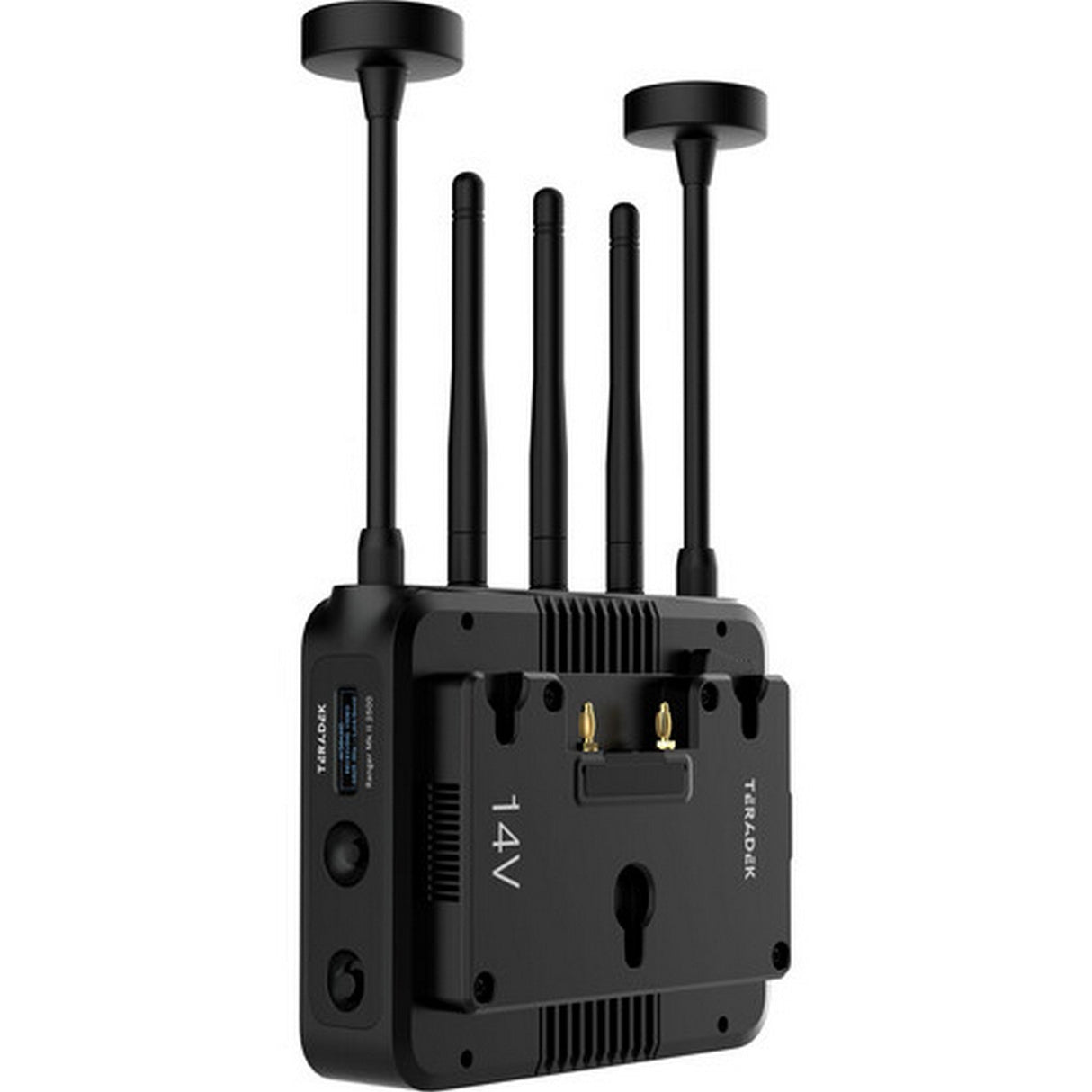

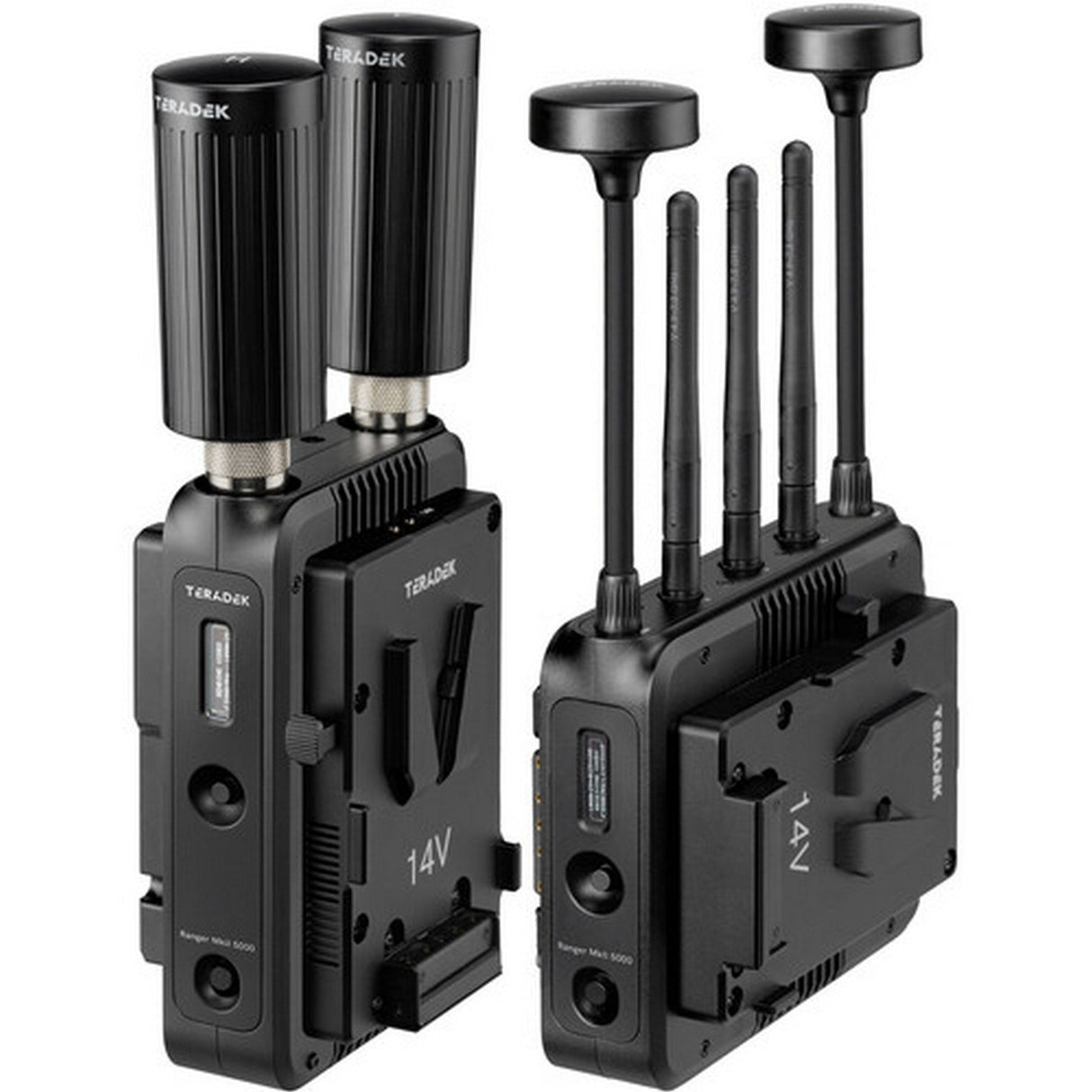

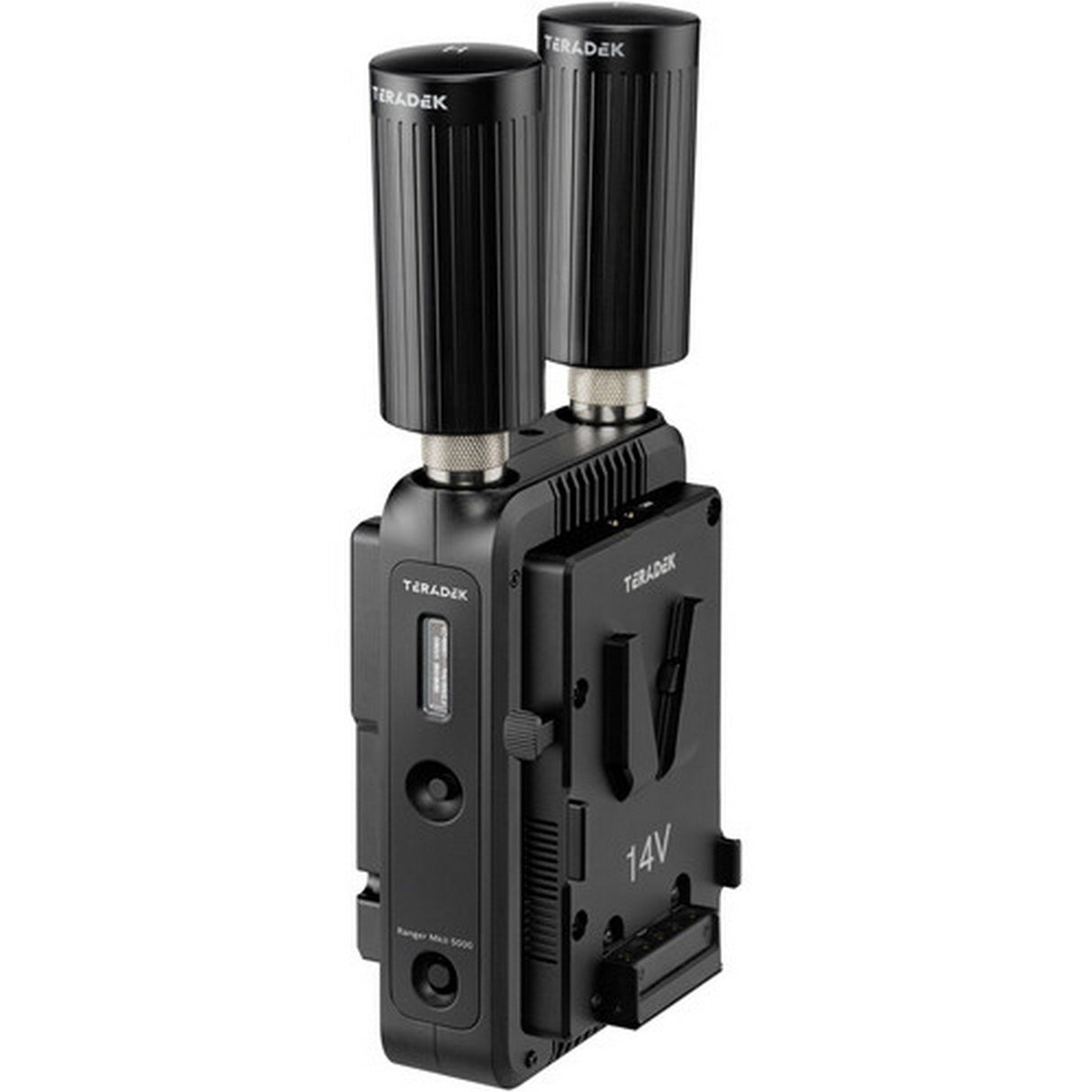

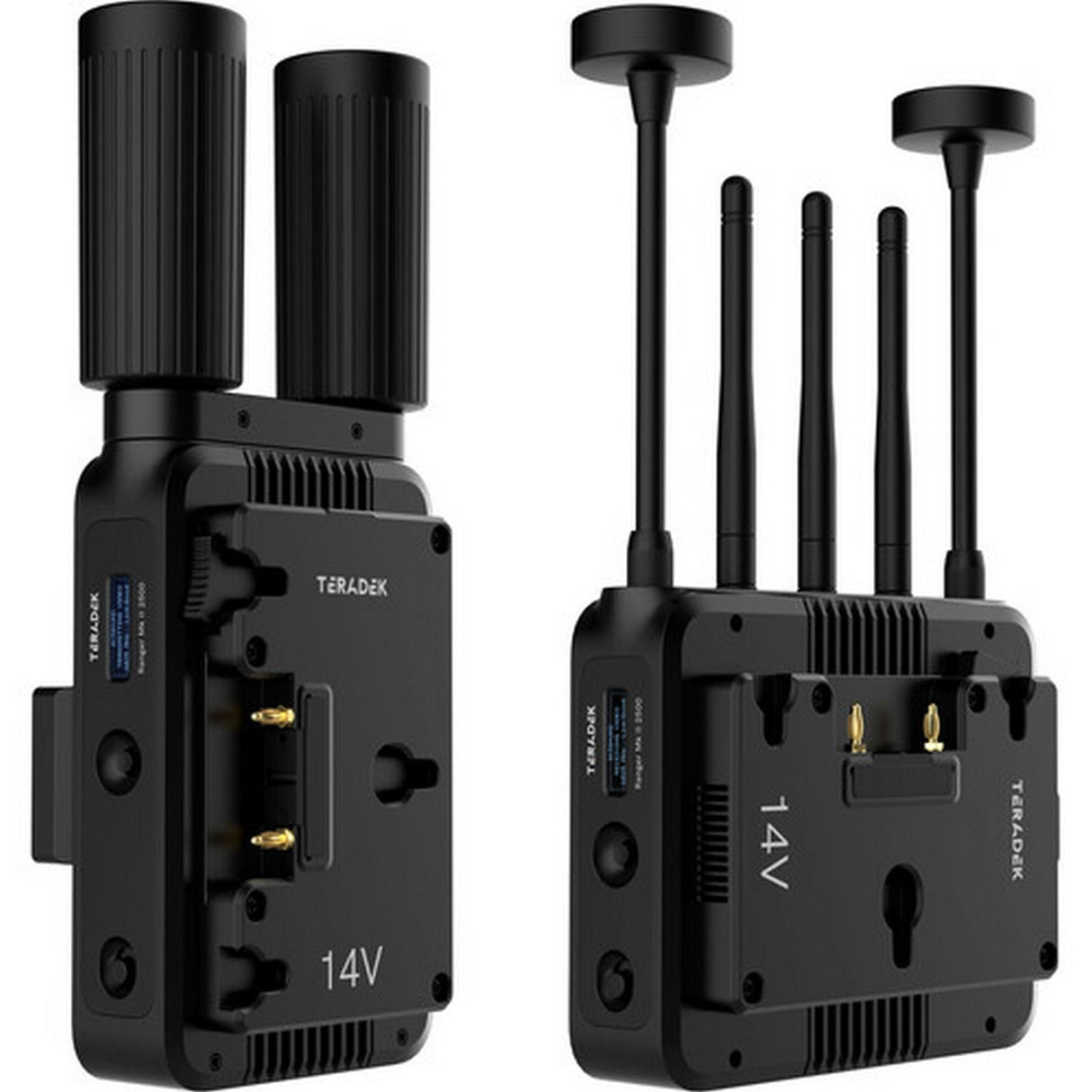

Teradek Ranger MK II 5000 Wireless 4K HDR Video System, 5000-Feet Range, Configurable Mounts and Kits
The Teradek Ranger MK II 5000 wireless video system delivers uncompressed 4Kp60 HDR video with ultra-low latency (<0.01 ms) over a powerful 12G-SDI and HDMI interface. Designed for cinematic-grade transmissions, it provides up to 5000 feet (1524 meters) line-of-sight range. Whether used in full kits or as standalone transmitters or receivers, the Ranger MK II ensures secure, interference-free signal delivery across multiple frequency bands. It is available with Gold Mount or V-Mount power options to integrate seamlessly with professional camera rigs.
Engineered with robust aluminum and polycarbonate construction, the system is AES-256 encrypted for secure data transmission and is compatible with the Launchpad mobile app for remote configuration. Choose the configuration that suits your production needs — full kit, transmitter only, or receiver only — each available in Gold Mount or V-Mount versions.
Available Configurations
- Transmitter and Receiver - Gold Mount
- Transmitter and Receiver - V-Mount
- Transmitter Only - Gold Mount
- Transmitter Only - V-Mount
- Receiver Only - Gold Mount
- Receiver Only - V-Mount
Key Features (All Variants)
- Zero-Delay Transmission: Less than 0.01 ms for real-time monitoring.
- Uncompressed 4K HDR: Supports 10-bit 4:2:2 up to 4Kp60.
- Long-Range Wireless: Transmit video up to 5000 feet line-of-sight.
- Dual Video I/O: 12G-SDI and HDMI input/output options.
- Encrypted Transmission: AES-256 encryption for secure video.
- App-Based Control: Configure settings with the Launchpad app (iOS/Android).
- Multiple Frequency Bands: Operates across 4.85–6.42 GHz.
- Mount Options: Available with Gold Mount or V-Mount battery plates.
Technical Specifications
- Video Inputs: 1x HDMI 2.0, 1x 12G-SDI BNC (transmitter)
- Video Outputs: 1x HDMI 2.0, 1x 12G-SDI BNC (receiver)
- Embedded Audio: 2-channel via HDMI and SDI
- Wireless Range: Up to 5000 feet (1524 meters) LOS
- Frequency Bands: 4.85–6.42 GHz
- Encryption: AES-256 with RSA 1024 key exchange
- Power Input: 6–28 VDC via 2-pin LEMO
- Dimensions: 5.5 x 5.2 x 1.2 inches (140 x 133 x 30 mm)
Package Contents by Variant
Transmitter and Receiver - Gold Mount
- Ranger MK II 5000 Transmitter (Gold Mount)
- Ranger MK II 5000 Receiver (Gold Mount)
- 2 x N-Type Antennas (TX)
- 5 x 2 dBi Antennas (RX)
- Power Accessories & Mounting Hardware
Transmitter and Receiver - V-Mount
- Ranger MK II 5000 Transmitter (V-Mount)
- Ranger MK II 5000 Receiver (V-Mount)
- 2 x N-Type Antennas (TX)
- 5 x 2 dBi Antennas (RX)
- Power Accessories & Mounting Hardware
Transmitter Only - Gold Mount
- Ranger MK II 5000 Transmitter (Gold Mount)
- 2 x N-Type Antennas
- Power Accessories & Mounting Hardware
Transmitter Only - V-Mount
- Ranger MK II 5000 Transmitter (V-Mount)
- 2 x N-Type Antennas
- Power Accessories & Mounting Hardware
Receiver Only - Gold Mount
- Ranger MK II 5000 Receiver (Gold Mount)
- 5 x 2 dBi Antennas
- Power Accessories & Mounting Hardware
Receiver Only - V-Mount
- Ranger MK II 5000 Receiver (V-Mount)
- 5 x 2 dBi Antennas
- Power Accessories & Mounting Hardware
