Theatrixx 12G-SDI to Fiber Converter with Embedded Audio, Single-Mode or Multimode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD

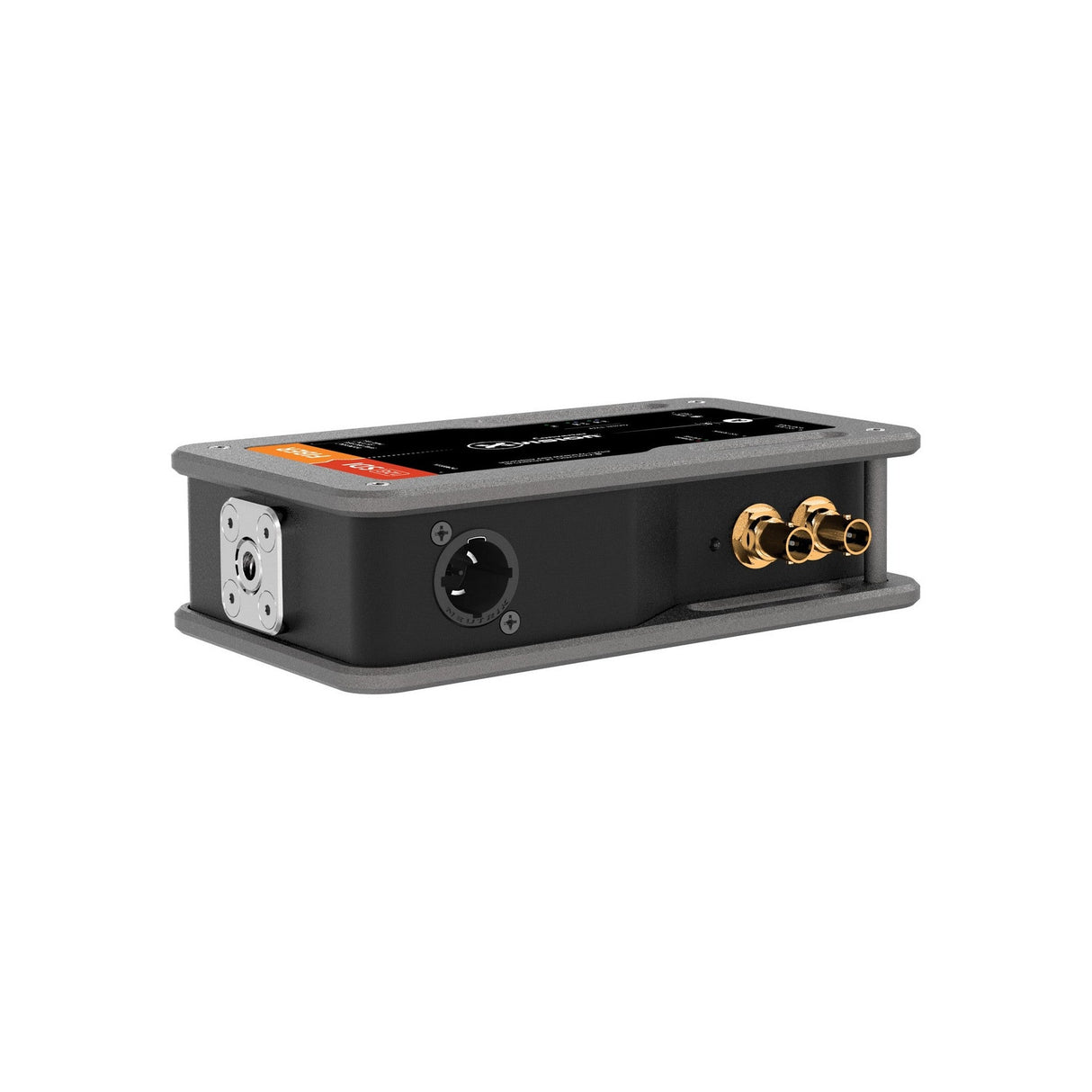

The xVision Converter 12G-SDI to Fiber True1 is designed for professional video applications, providing seamless conversion from SDI to fiber optics. It supports a wide range of video formats including 12G, 6G, 3G-SDI, HD-SDI, and SD-SDI, ensuring compatibility with various broadcasting standards. The converter features a robust build quality and is equipped with a built-in power supply, making it ideal for both studio and field use.

With options for multimode or singlemode fiber outputs, and various connector types including ST, OpticalCON DUO, and OpticalCON QUAD, the xVision Converter offers flexibility for different installation needs. Its compact design and lightweight construction make it easy to integrate into existing setups, while its reliable performance ensures high-quality video transmission over long distances.

Key Features:

• Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC
• Loop-thru: 1 x 12G/6G/3G/HD/SD SDI BNC
• Video Output: Choice of Multimode or Singlemode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
• Supported Signals: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
• Power Consumption: 15W
• Operating Temperature: 0-40 °C

Technical Specifications

• Measuring System: Metric
• Dimensions: 50 mm (H) x 180 mm (D) x 107 mm (W)
• Weight: 1 kg (2.2 lbs)
• Relative Humidity: 0% to 90% non-condensing
• Power Supply: Built-in power supply, PowerCON True1 input/output
• Voltage Range: 100-240V, 50-60Hz
• Courtesy Outlet: Max 10 A, same voltage as input

What's in the Box

• xVision Converter 12G-SDI to Fiber True1
• AC Mains to PowerCON True1 cable (1.5m, specify plug type at ordering)
