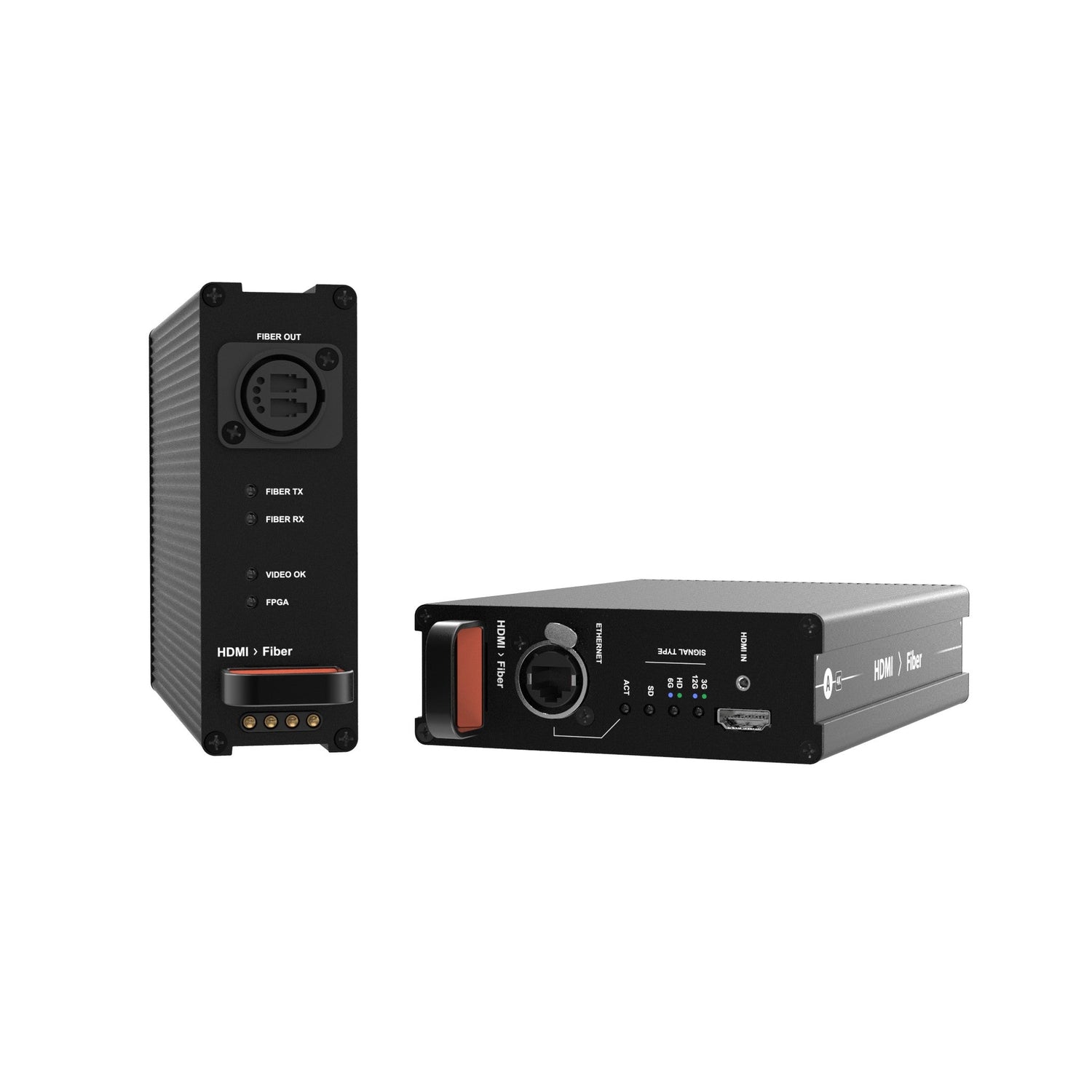

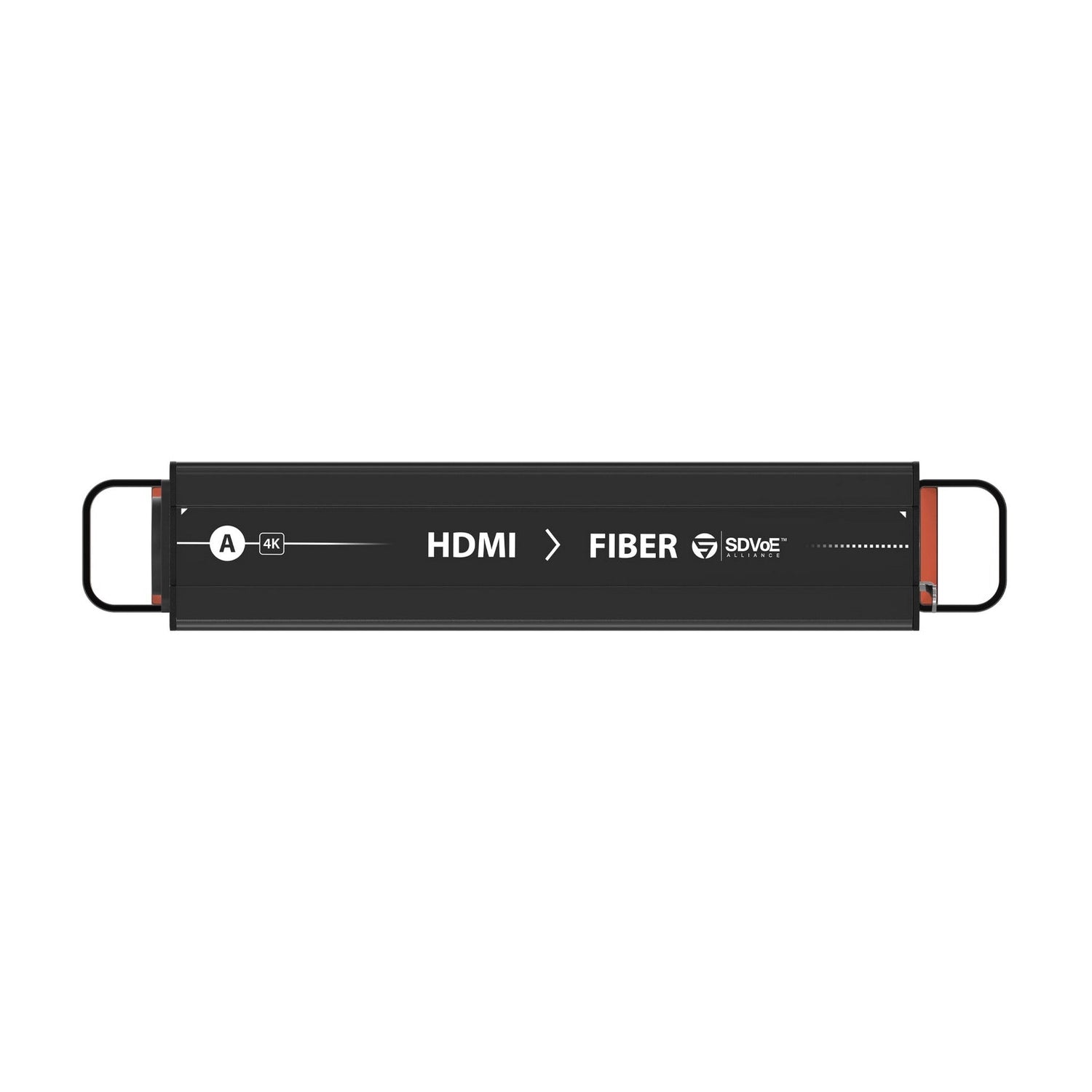

Theatrixx HDMI to Fiber Reversible Module Converter, Single-Mode or Multimode, OpticalCON Duo or Optical QUAD

The Theatrixx Reversible Module HDMI to Fiber is designed for professional AV applications, allowing seamless transmission of HDMI 2.0 signals over fiber optics. It supports all HDMI 2.0 formats, including 4K/60 video with HDR, ensuring high-quality video and audio performance. With a typical latency of less than 0.1 ms, this module is ideal for live events and installations where timing is critical. Its robust design and versatile connectivity options make it a reliable choice for any AV setup.

Key Features:

• Video Input: 1 x HDMI 2.0 type A with locking system
• Video Output: 1 x 10 Gbps Optical Ethernet, SFP-based, with options for Singlemode or Multimode
• Supported Signals: All HDMI 2.0 formats including 4K/60 8-bit 4:4:4, 4K/60 10-bit 4:2:2, HDR10 & Dolby Vision
• Embedded Audio: Up to 8 channels, 24-bit, 192 kHz
• Encoding Technology: SDVoE (NT1000-based)
• Typical Latency: < 0.1 ms
• Power Consumption: 20W
• Operating Temperature: 0-40 °C

Technical Specifications

• Measuring System: Metric
• Dimensions: 121.5 mm (H) x 225 mm (D) x 41 mm (W)
• Weight: 710 g (1.56 lbs)
• Material: Metal chassis
• Finish: Black powder coat
• Lock Type: Locking HDMI connector
• Relative Humidity: 0% to 90% non-condensing

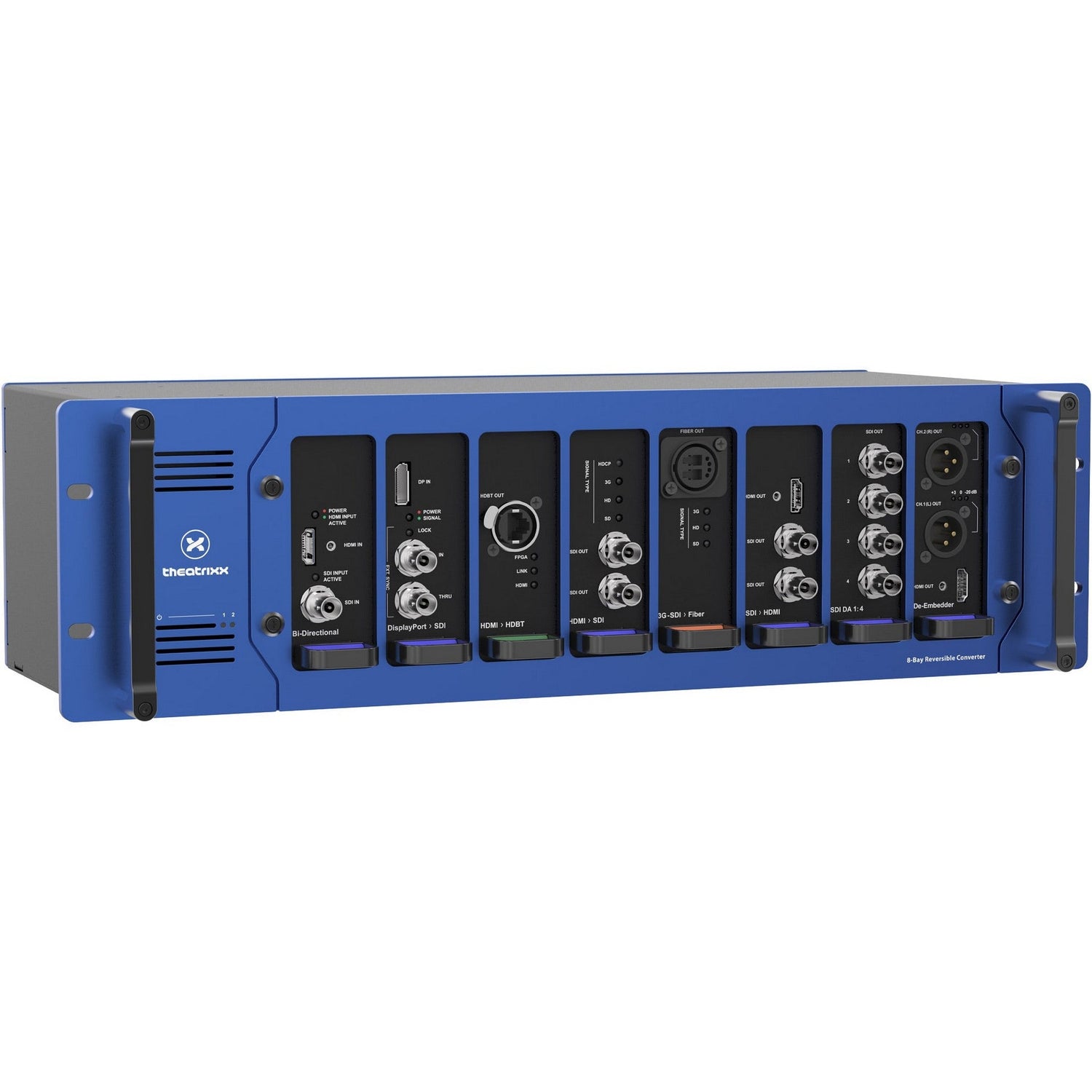

• Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
• Voltage Range: 12VDC

What's in the Box

• Theatrixx Reversible Module HDMI to Fiber
