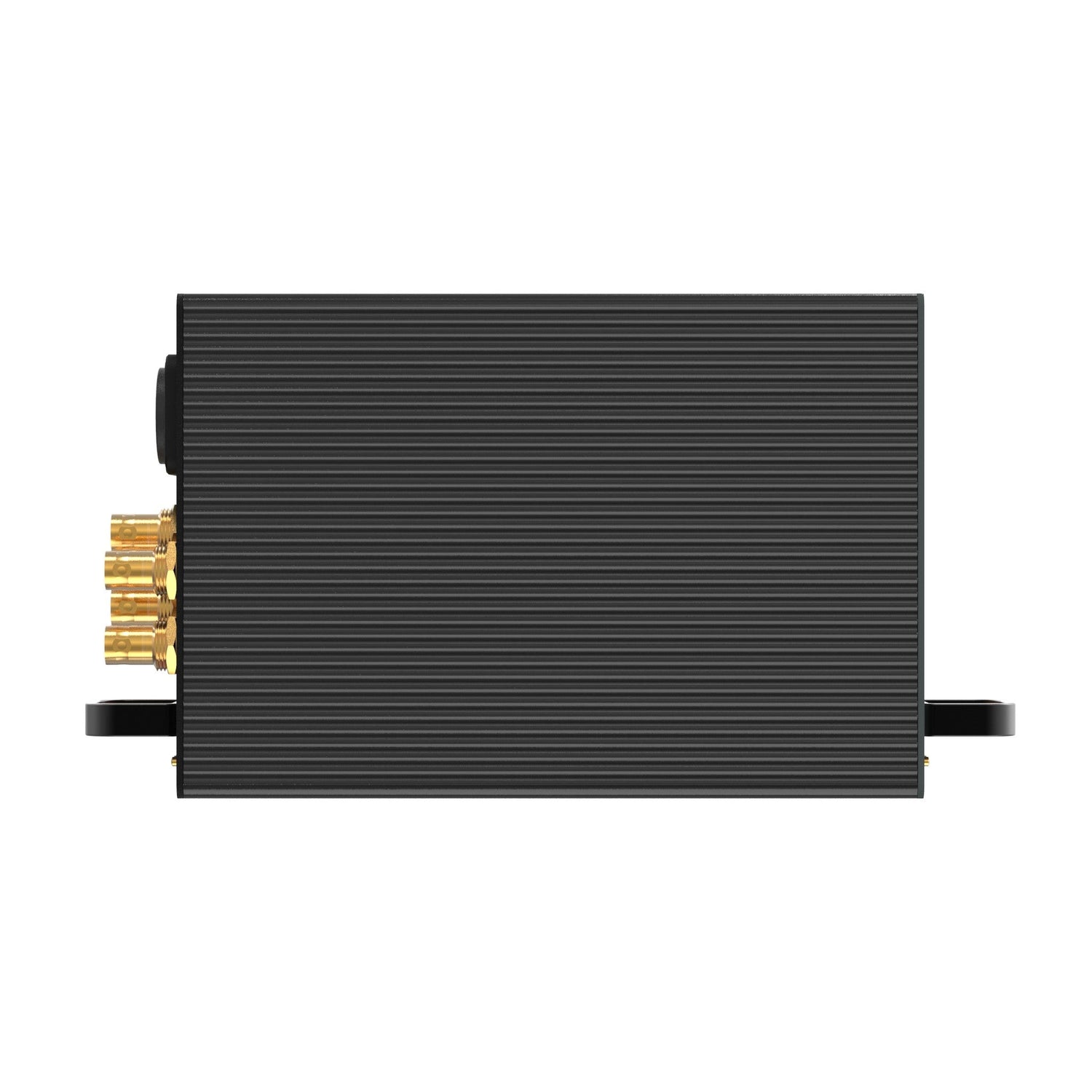

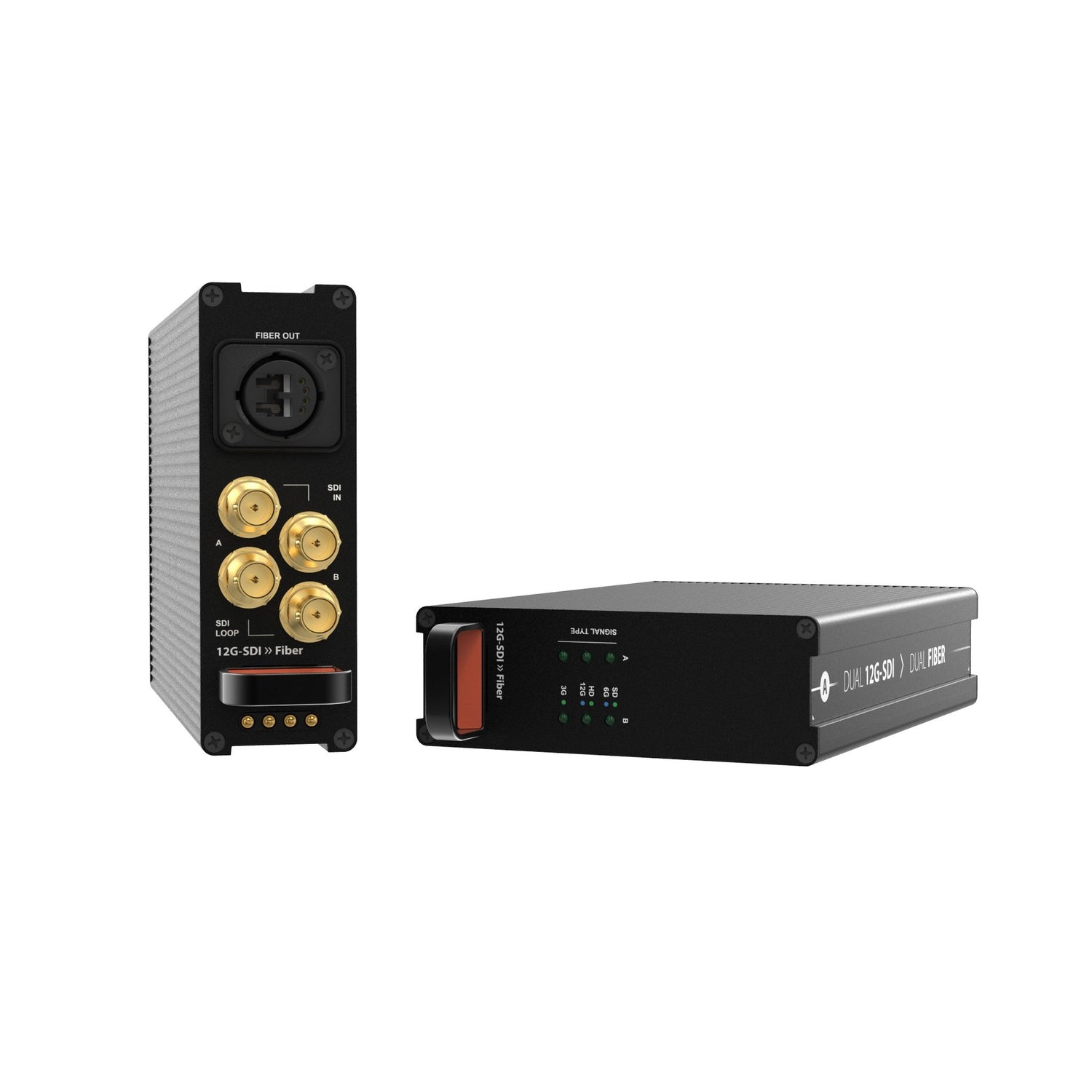

Theatrixx Reversible Module Dual Channel 12G-SDI to Fiber Converter, Single-Mode or Multimode, OpticalCON Duo or Optical QUAD

The Theatrixx RM-2SDI2FIBER12G is a high-performance video converter designed for seamless integration into professional video workflows. It supports a wide range of SDI formats including 12G, 6G, and 3G-SDI, ensuring compatibility with various broadcasting standards. The unit features dual fiber outputs, allowing for flexible connectivity options, whether using multimode or singlemode fibers. Its compact form factor and robust build quality make it suitable for both studio and field applications.

With a power consumption of only 20W and a wide operating temperature range, the RM-2SDI2FIBER12G is engineered for reliability in demanding environments. The reversible redundant power supply ensures uninterrupted operation, making it a dependable choice for critical video transmission tasks.

Key Features:

• Video Input: 2 x 12G/6G/3G/HD/SD SDI BNC

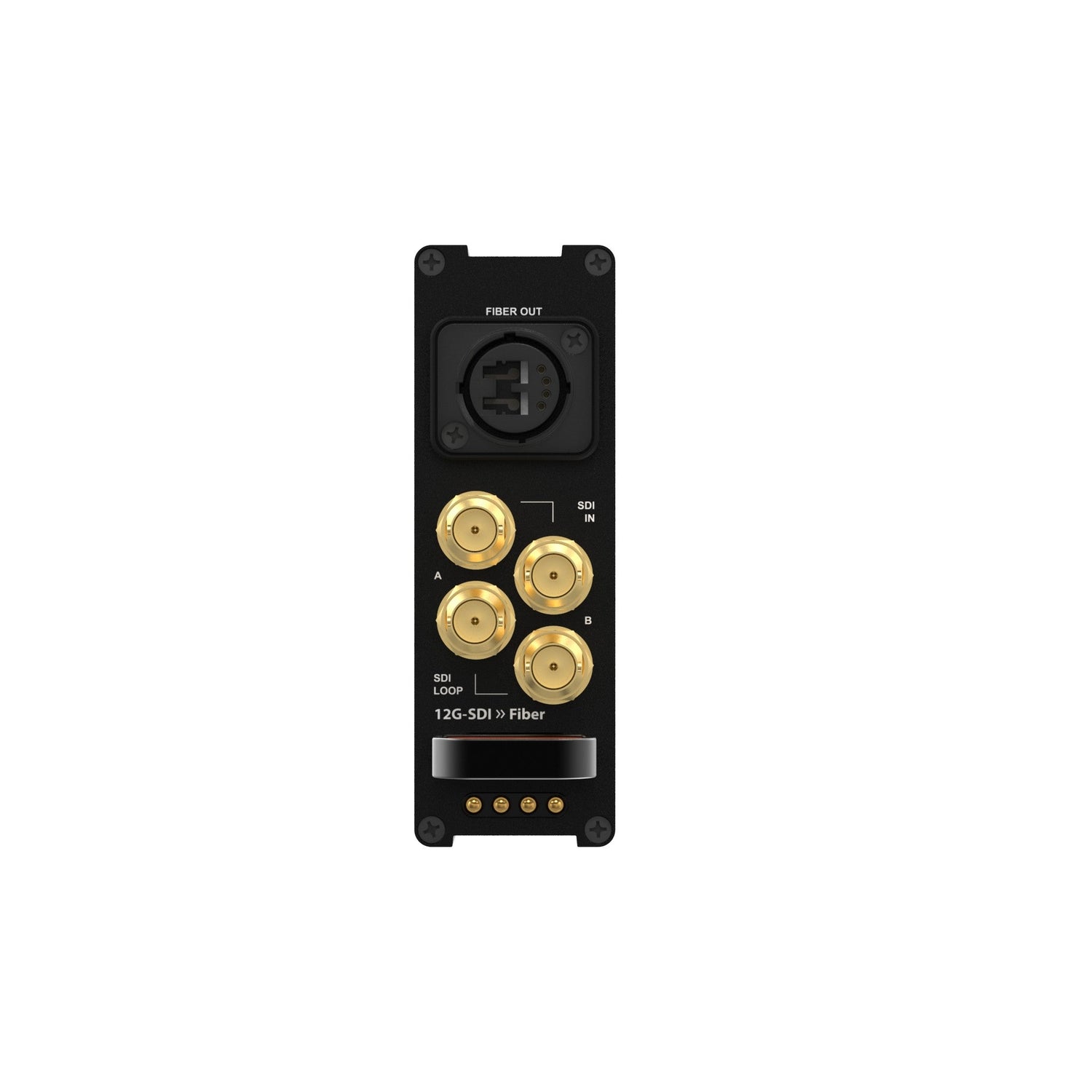

• Video Output: Choice of Multimode or Singlemode, Optical SDI on OpticalCON DUO or OpticalCON QUAD
• Supported Signals: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
• SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M
• Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)

Technical Specifications

• Height: 121.5 mm (4.78 in)
• Depth: 225 mm (8.85 in)
• Width: 41 mm (1.61 in)
• Weight: 710 g (1.56 lbs)
• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 °C
• Power Consumption: 20W
• Voltage Range: 12VDC

What's in the Box

• Theatrixx Reversible Module Dal 12G-SDI to Dual Fiber
