Theatrixx Reversible Module Dual Channel 3G-SDI to Fiber Converter, Single-Mode or Multimode, OpticalCON Duo or Optical QUAD - OpticalCON DUO / Multimode
Theatrixx Reversible Module Dual Channel 3G-SDI to Fiber Converter, Single-Mode or Multimode, OpticalCON Duo or Optical QUAD

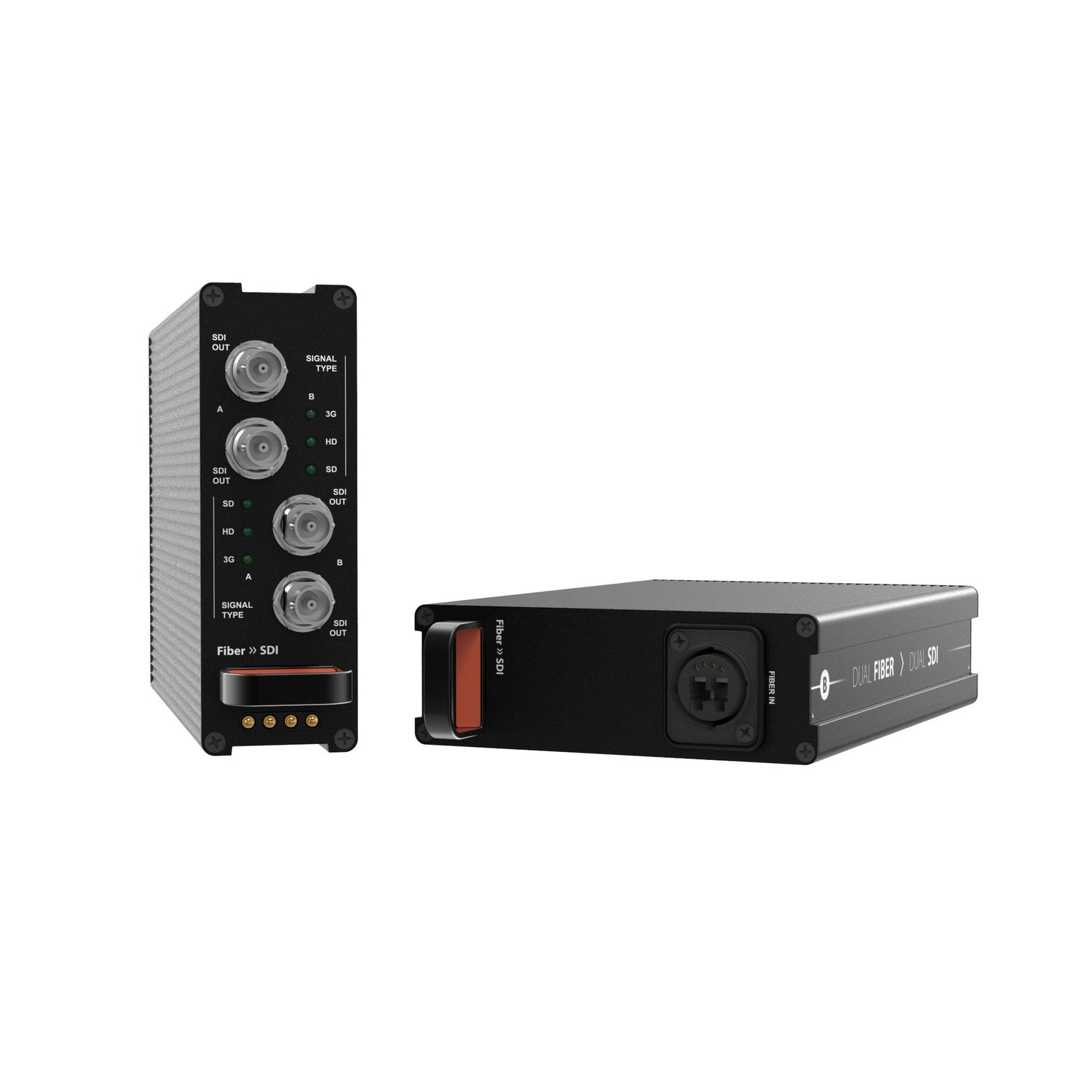

The Theatrixx RM-2Fiber2SDI is a high-performance dual fiber to dual SDI converter that provides seamless video signal transmission for professional broadcasting and AV applications. With support for 3G-SDI, HD-SDI, and SD-SDI formats, this device ensures compatibility with a wide range of video equipment. Its compact design and robust build quality make it ideal for both studio and field use, while the choice of multimode or singlemode fiber connections offers flexibility in various setups.
Designed for reliability, the RM-2Fiber2SDI features redundant power supply options and operates within a wide temperature range, making it suitable for demanding environments. The device is also available as a standalone converter, providing additional versatility for users who require a dedicated solution.
Key Features:

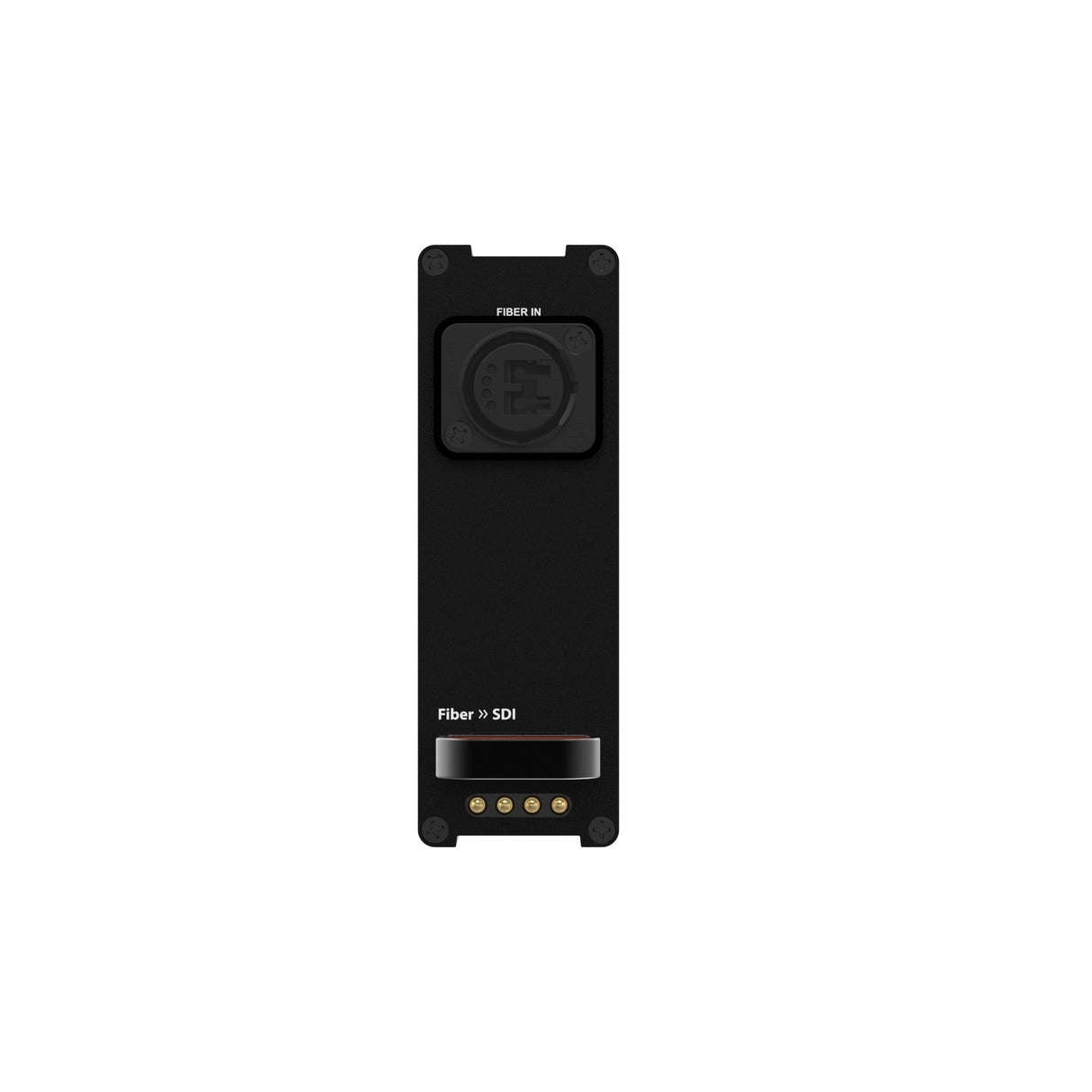

- Video Input: Choice of Multimode or Singlemode fiber with Optical SDI on ST, OpticalCON DUO, or OpticalCON QUAD connectors.
- Video Output: 4 x 3G/HD/SD SDI BNC outputs for versatile connectivity.
- Supported Signals: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio.
- SMPTE Standards: Complies with 425 M Level A & B, 424 M, 292 M, and 259 M standards.

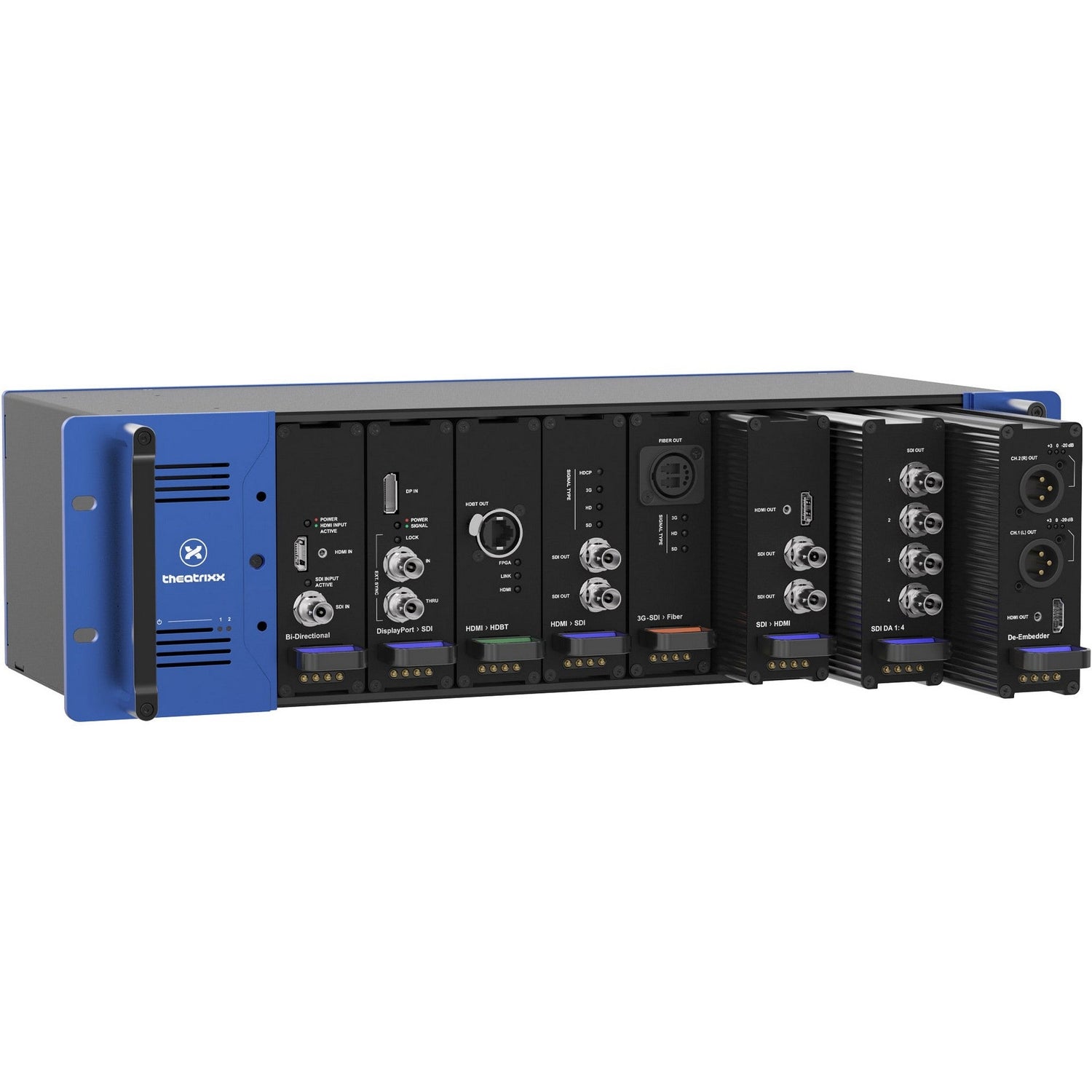

- Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame).
Technical Specifications
- Height: 121.5 mm (4.78 in)
- Depth: 225 mm (8.85 in)
- Width: 41 mm (1.61 in)
- Weight: 710 g (1.56 lbs)
- Relative Humidity: 0% to 90% non-condensing
- Operating Temperature: 0-40 °C
- Power Consumption: 20W
- Voltage Range: 12VDC
What's in the Box
- Theatrixx Reversible Module Dual Fiber to Dual SDI
