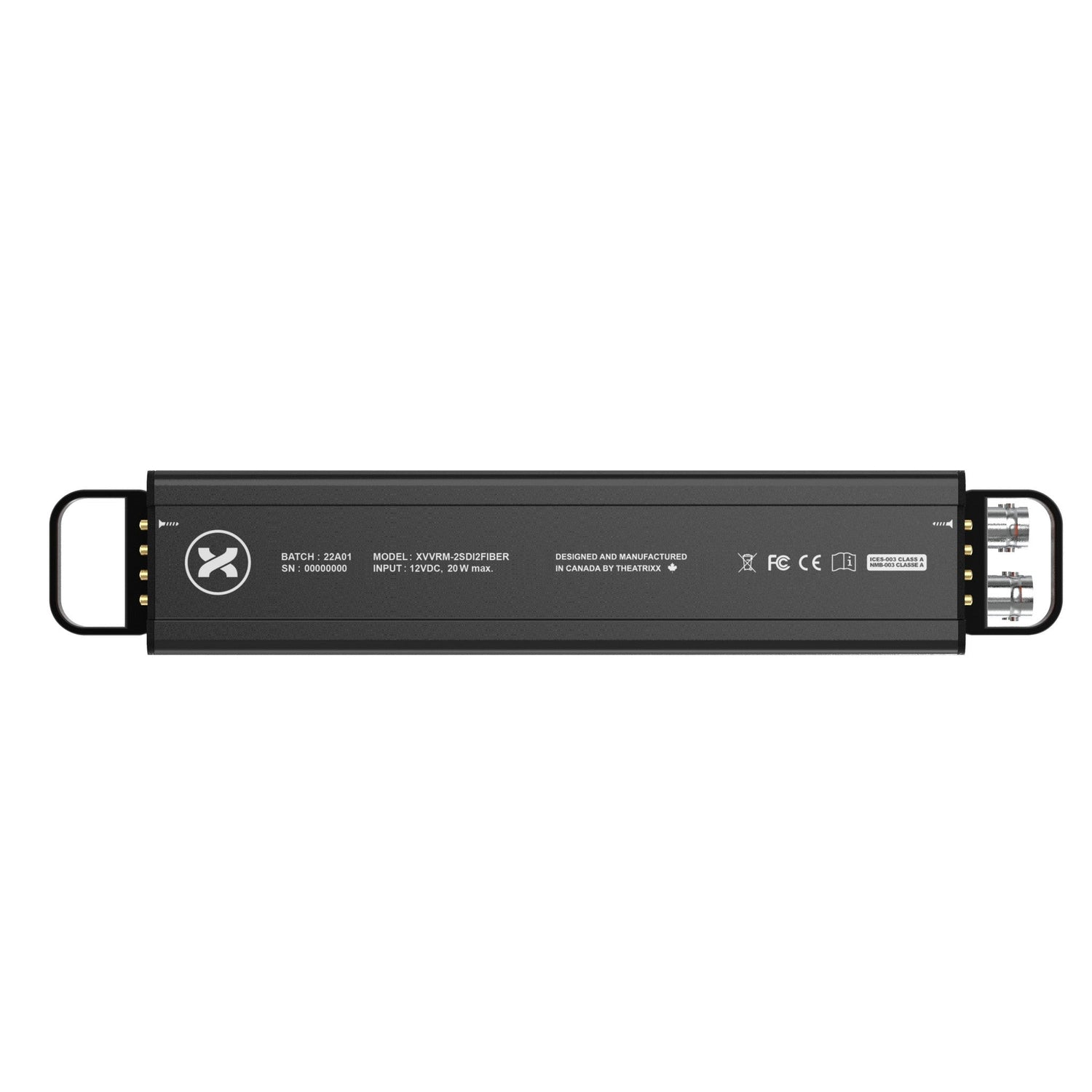

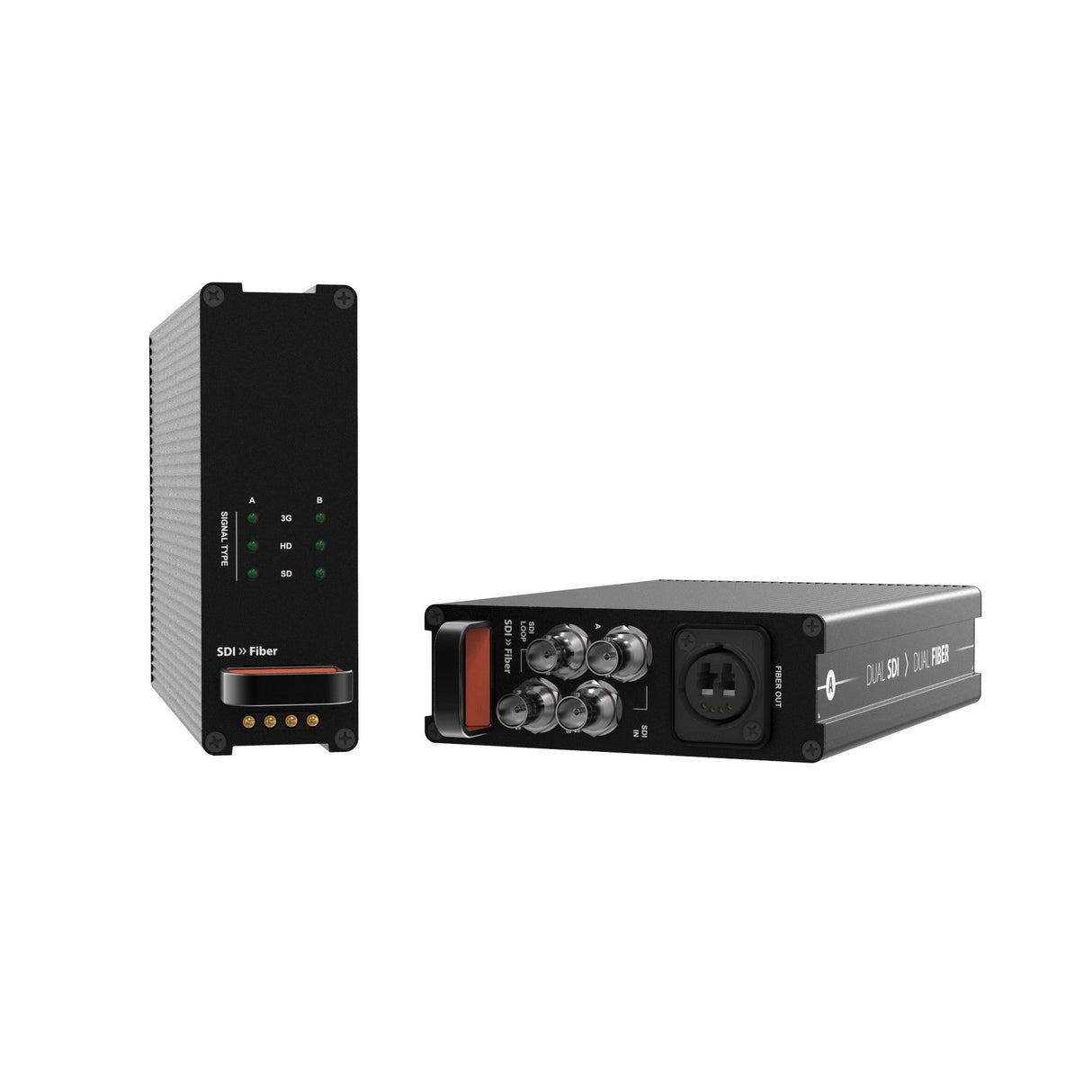

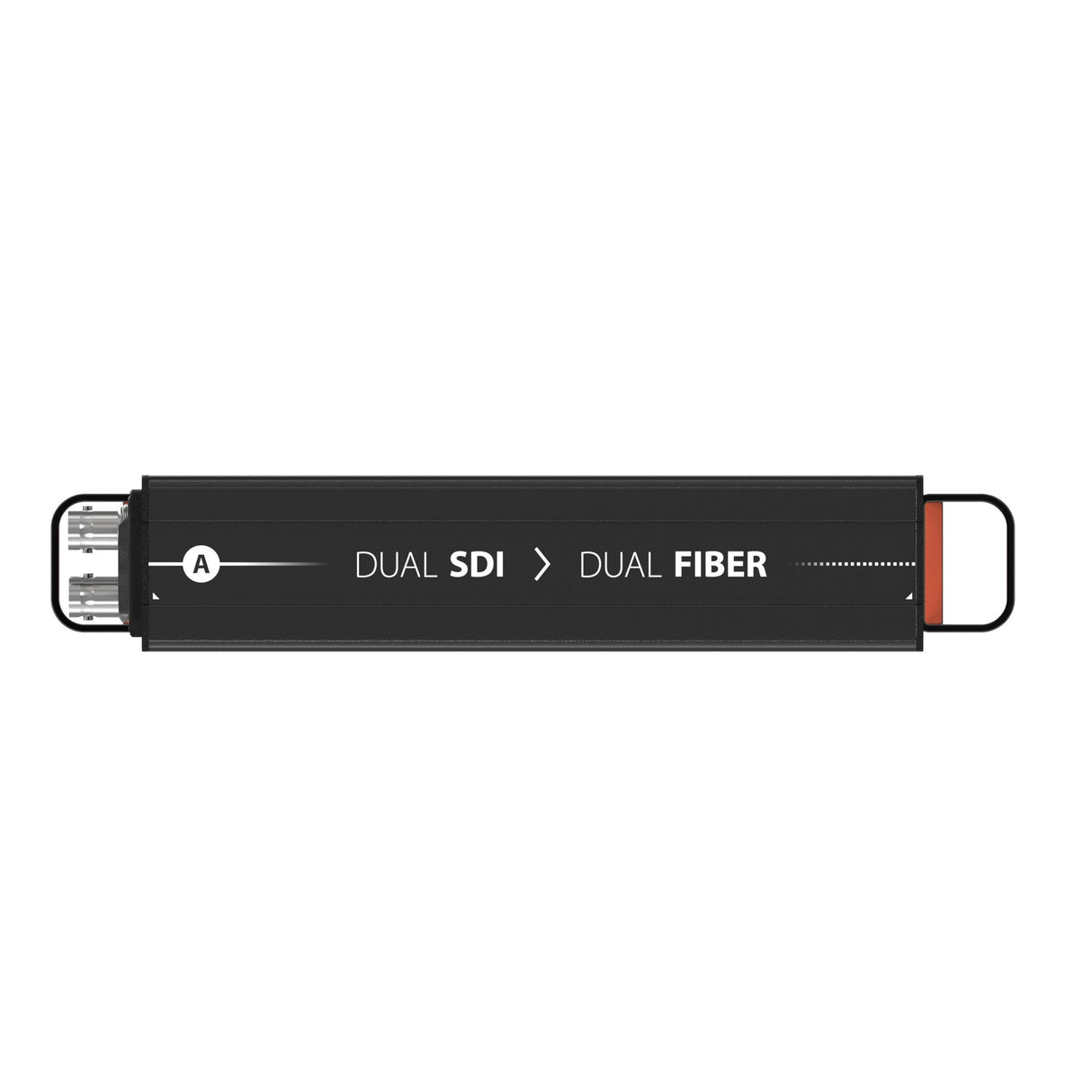

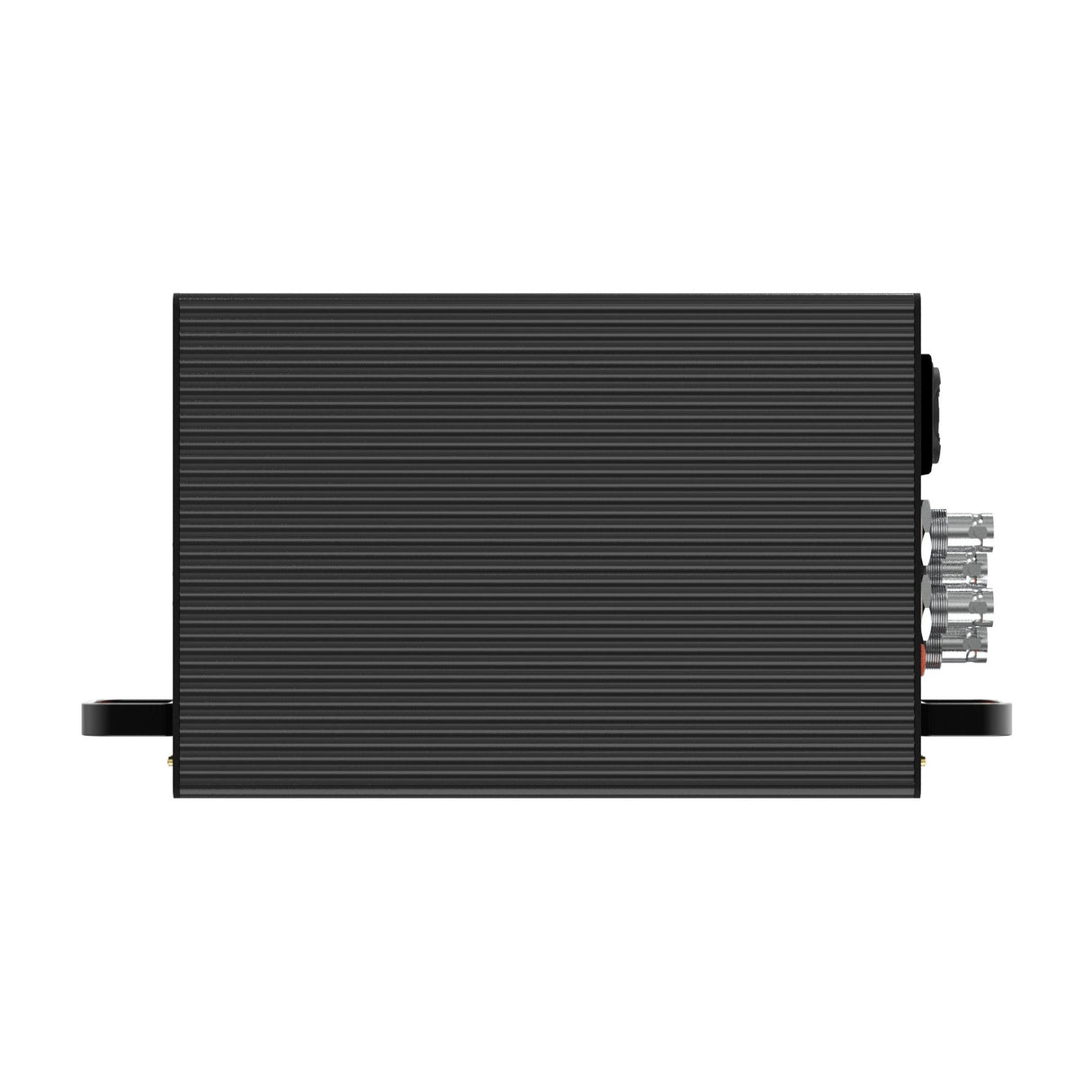

Theatrixx Reversible Module Fiber to 12G-SDI Converter, Single-Mode or Multimode, OpticalCON Duo or Optical QUAD
The Theatrixx Fiber to 12G-SDI Reversible Module is designed for seamless conversion of fiber optic signals to 12G-SDI, ensuring high-quality video transmission over long distances. As part of the 8-Bay Reversible Rackmount Converter system, this module offers flexibility in professional audiovisual setups, allowing for efficient and adaptable signal management.
Built with a robust enclosed housing, this module provides protection against static shock, dust, and environmental wear, enhancing long-term durability. It features a gold-plated, redundant spring pin design with magnetic retention, ensuring a stable DC power connection without the need for external power bricks, reducing cable clutter.
Supporting various video formats including 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI with embedded audio, the module guarantees broad compatibility. It adheres to multiple SMPTE standards, making it a reliable choice for professional broadcasting and production environments.
Key Features:
- Reversible design for front or back installation.
- Enclosed housing protects against static shock, dust, and wear.
- Gold-plated, redundant spring pins with magnetic retention for stable DC power.
- Supports multiple video formats: 12G/6G/3G/HD/SD-SDI with embedded audio.
- Complies with SMPTE standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M.
- Available with Multimode or Singlemode fiber input.
- Optical SDI connectivity options: ST, OpticalCON DUO, OpticalCON QUAD.
- Dual 12G/6G/3G/HD/SD-SDI BNC outputs.
Technical Specifications:
Video Input: Multimode or Singlemode fiber with ST, OpticalCON DUO, or OpticalCON QUAD options.
Video Output: 2 x 12G/6G/3G/HD/SD-SDI BNC.
Video Format Support: 12G/6G/3G-SDI Level A & B, HD-SDI, SD-SDI with embedded audio.
SMPTE Standards Compliance: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M.
Dimensions (HxDxW): 4.78 in x 8.85 in x 1.61 in.
Weight: 1.56 lbs.
Operating Temperature: 32°F to 104°F.
Relative Humidity: 0% to 90% non-condensing.
Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame).
Power Consumption: 20W.
Voltage Range: 12VDC.
Package Contents:
- 1 x Theatrixx Fiber to 12G-SDI Reversible Module.
