Theatrixx Reversible Module Fiber to 3G-SDI, Single-Mode or Multi Mode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD

The Theatrixx Reversible Module Fiber to SDI is designed to provide seamless conversion from fiber optic signals to SDI formats, making it an essential tool for video professionals. With support for 3G-SDI, HD-SDI, and SD-SDI, this module ensures high-quality video transmission with embedded audio. Its compact design allows for easy integration into existing setups, while the choice of multimode or singlemode connections offers flexibility for various applications.

Built with durability in mind, the RM-Fiber2SDI features a robust construction that withstands the rigors of professional use. The module supports a wide range of SMPTE standards, ensuring compatibility with industry equipment. Additionally, its environmental specifications make it suitable for diverse operating conditions, providing reliable performance in both studio and field environments.

Key Features:

• Video Input: Choice of Multimode or Singlemode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
• Video Output: 2 x 3G/HD/SD SDI BNC
• Supported Signals: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
• SMPTE Standards: 425 M Level A & B, 424 M, 292 M, 259 M

Technical Specifications

• Height: 121.5 mm (4.78 in)
• Depth: 225 mm (8.85 in)
• Width: 41 mm (1.61 in)
• Weight: 710 g (1.56 lbs)
• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 °C

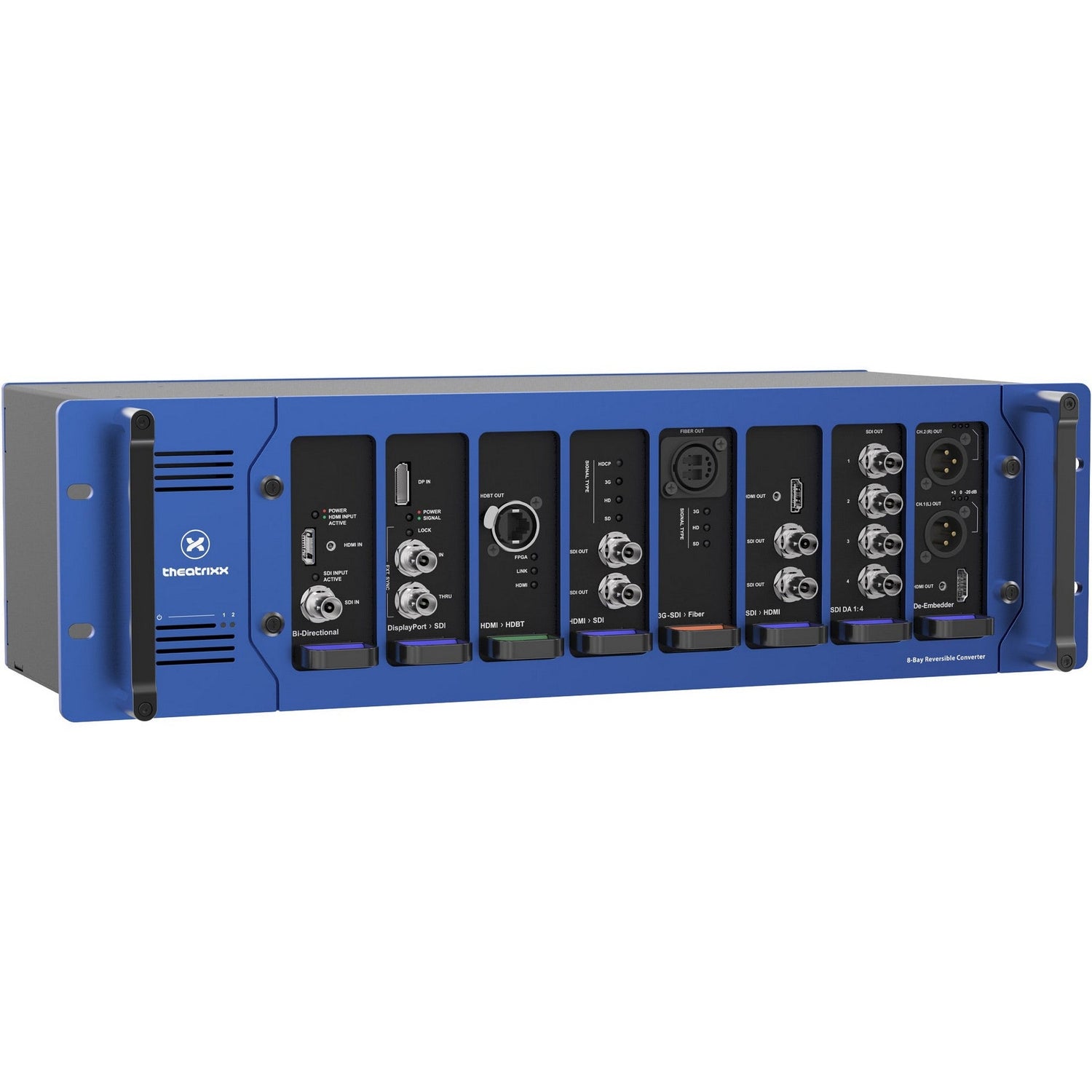

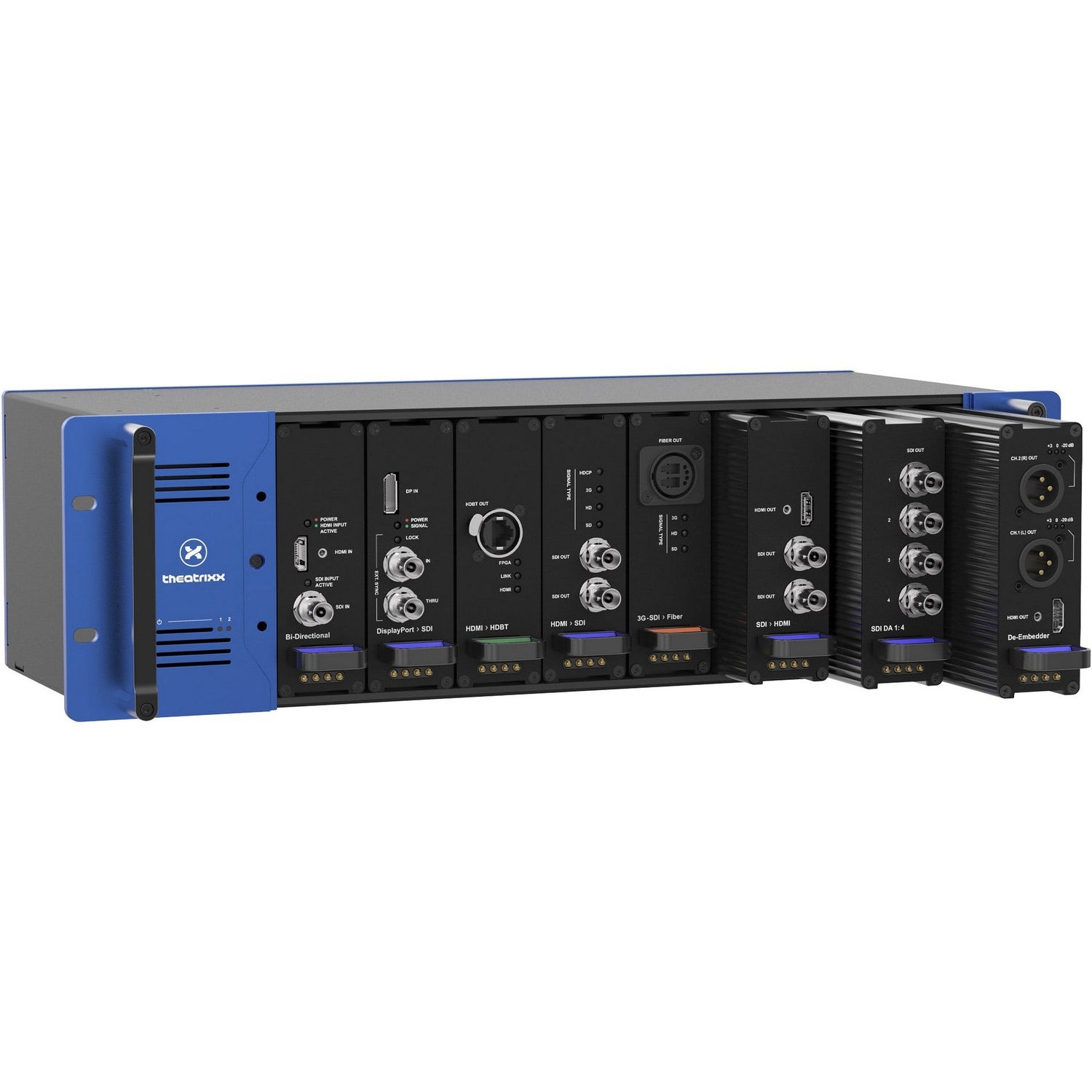

• Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
• Power Consumption: 20W
• Voltage Range: 12VDC

What's in the Box

• Theatrixx Reversible Module Fiber to SDI
