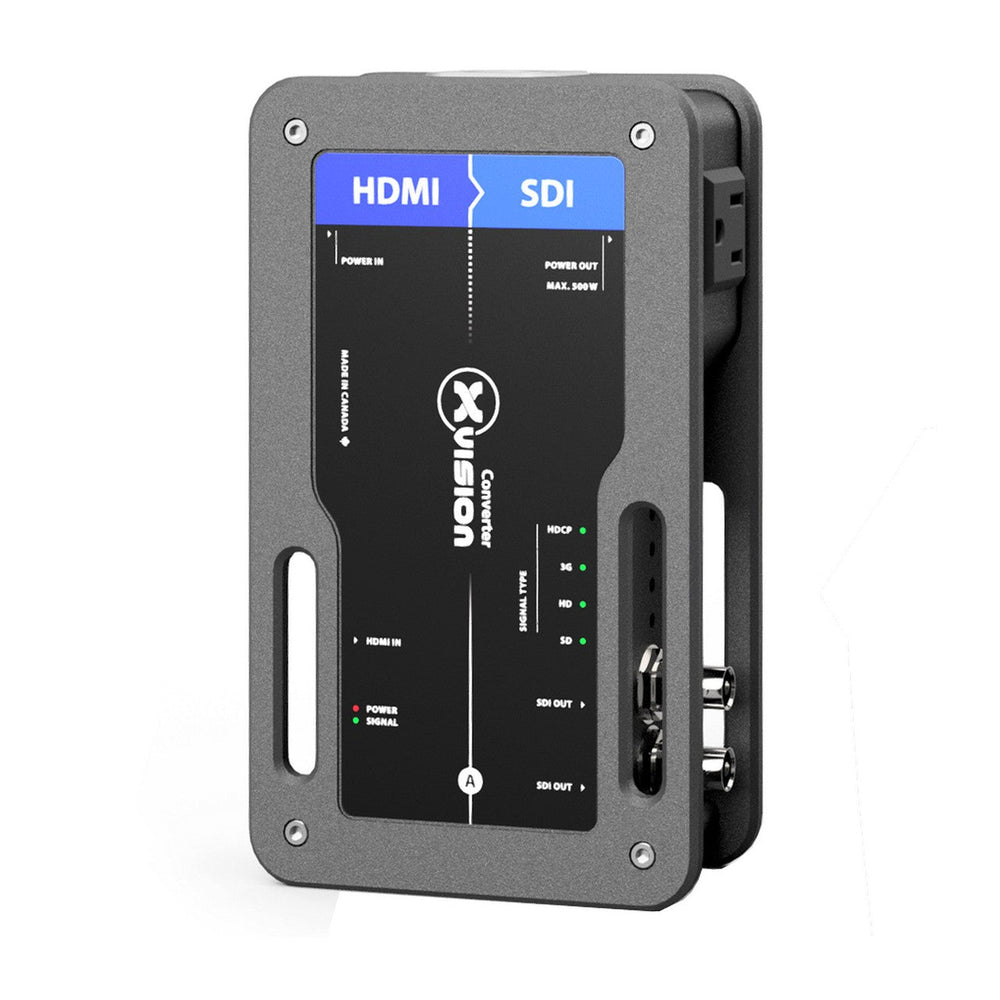

Theatrixx XVV-HDMI2SDI xVision 1080p 720p HDMI to SDI Tour Ready Video Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what may soon become your most trustworthy piece of equipment.

Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

• Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
• Built-in convenience 120V outlet to power nearby projector, TV, laptop...Power bar to power both the converter and device not required anymore.
• Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
• Multiple mounting options : Pipe coupler, wall-mount adapter, LCD mount adapter.
• Rugged, tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
• Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
• Clear and ample status LED indicators for quick troubleshooting
• HDMI inputs tested and compatible with Apple computers and iPad.
• Easy on-the-field identification with unique color and alphabetic coding system
• Locking HDMI port prevents accidental disconnection.
• SDI loop-thru and/or integrated splitter.
• Proudly designed and assembled in Canada.

Technical Specifications

Converter Option
XVV-HDMI2SDI: xVision HDMI to SDI Video Converter
Video Input
HDMI 1.4 type A with lock system
Video Output
2 x 3G/HD/SD SDI BNC
Supported Signals
3G Format Support: 1080p50, 1080p59.94, 1080p60.
HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL.
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Sample rate of 48 kHz and 24 bit.
SDI Color Space: YUV and RGB
SDI Auto Switching: Automatically detects incoming signal format.
Power Requirements
Power Supply: Built-in power supply
PowerCON True1 input
PowerCON True1 output
Power Consumption: 25 W
Operational Voltage Range: 90-250 V with True1
Connectors
Environmental Specifications
Relative Humidity
0 % to 90 % non-condensing
Dimensions
1.97 x 7.08 x 4.21 inches
Weight
2.2 lbs
In the Box
xVision converter HDMI to SDI (True1)
HDMI male with locking system to DVI male (1m)
