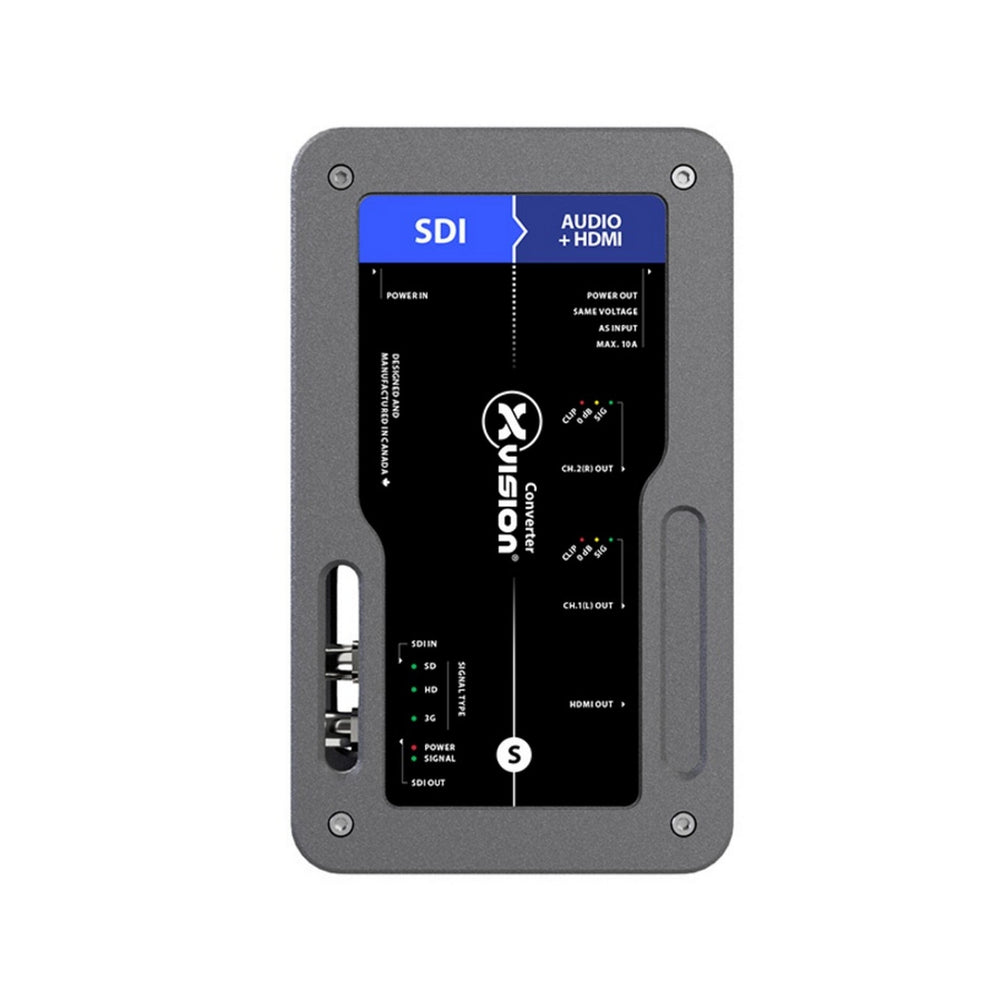

Theatrixx XVV-SDI2AUDIO xVision Converter, SDI Audio De-Embedder
A new member is joining Theatrixx's popular line of xVision SDI Converters, this time featuring audio de-embedding. Following Theatrixx's commitment to using only professional, locking connectors, the new xVision XVV-SDI2AUDIO SDI Audio De-Embedder boasts two Neutrik balanced XLR outputs assigned to SDI channels 1 and 2. The outputs are equipped with a 3-segment LED level meter, a unique feature to quickly identify channel status with no external equipment required. The new Audio De-Embedder also features a reclocked SDI loop-thru and HDMI output, effectively making this unit the perfect companion for common LCD-monitor-and-powered-speaker setups, or any other application requiring professional audio and video connectivity from a SDI source.
Key Features
- Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again
- Built-in convenience 120V outlet to power nearby projector, TV, laptop, Power bar to power both the converter and device not required anymore
- Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year
- Multiple mounting options: Pipe coupler, wall-mount adapter, LCD mount adapter
- Rugged, tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come
- Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works
- Clear and ample status LED indicators for quick troubleshooting
- HDMI inputs tested and compatible with Apple computers and iPad
- Easy on-the-field identification with unique color and alphabetic coding system
- Locking HDMI port prevents accidental disconnection
- SDI loop-thru and/or integrated splitter
- Proudly designed and assembled in Canada
Technical Specifications
Supported resolutions
3G - 1080p50/60; HD - 1080p24/25/30; HD - 1080i50/60; HD - 720p50/60; SD - 625i (PAL); SD - 525i (NTSC)
Audio
Up to 8 channels, 24 bits, 48kHz
Power
Built in power supply; PowerCON input; Edison NEMA 5-15 convenience output
Power Consumption
15 watts
Power Input
85-125 VAC 50/60 Hz
Item Includes
xVision Converter
Locking HDMI male to DVI male cable (1 meter)
Edison NEMA 5-15P to PowerCON cable (1 meter)
