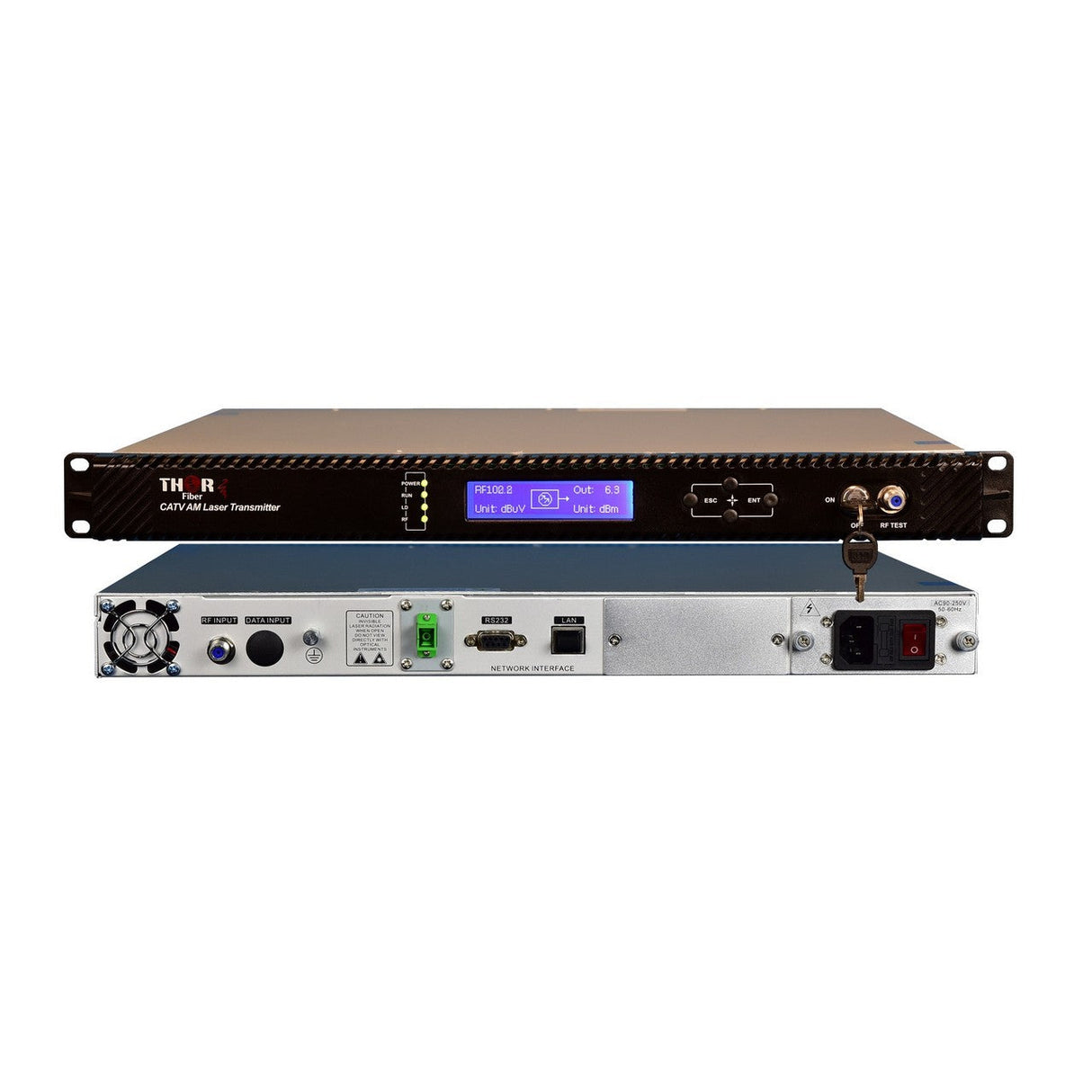

Thor F-RF-1310-TX-4MW CATV RF Over Fiber Transmitter
Thor F-RF-1310-TX-4MW CATV RF Over Fiber Transmitter
Free Shipping
Thor F-RF-1310-TX-4MW CATV RF Over Fiber Transmitter
1310nm - 4mW fiber optic transmitter for Television RF (Radio Frequencies) from 45-870 MHz. Directly converts any incoming RF signal within this band to optical RF. Transports all channels and programs over one fiber. Can be used for point to point, or combined with PLC couplers and fiber optic splitters for point to multipoint applications. Outputs Industry standard RFoG (RF over Glass) signals that can be accepted by most fiber optic RF receivers from other manufacturers. Easy to read front panel LCD provides information and alarm data, and simplifies configuration. This system features a highly linear DFB laser with automatic adjustment circuitry with Automatic Gain Control. For added reliability, a second internal Power Supply Unit is available as an option.
Key Features
- 4mW Laser Optics for Optical Output Power of at least +3 dBm
- Temperature controlled optics for consistent power output
- Broadband RF response for full lineup transport of telivision RF
- Transports any channels in the 45-870 MHz broadband range
Technical Specifications
Laser Power
4mW
Optical Power
> +3.5 dBm
Fiber Connector
SC/APC
RF Input Power
19 - 21 dBmV
RF Connector
Type-F 75 Ohm
Power Input
120-240 VAC
Power Rating
50W
Dimensions
19 x 10 x 1.75 IN
Temperature
-5 - 65 C
Item Includes
Optical Transmitter
US Power Cable
User Manual
