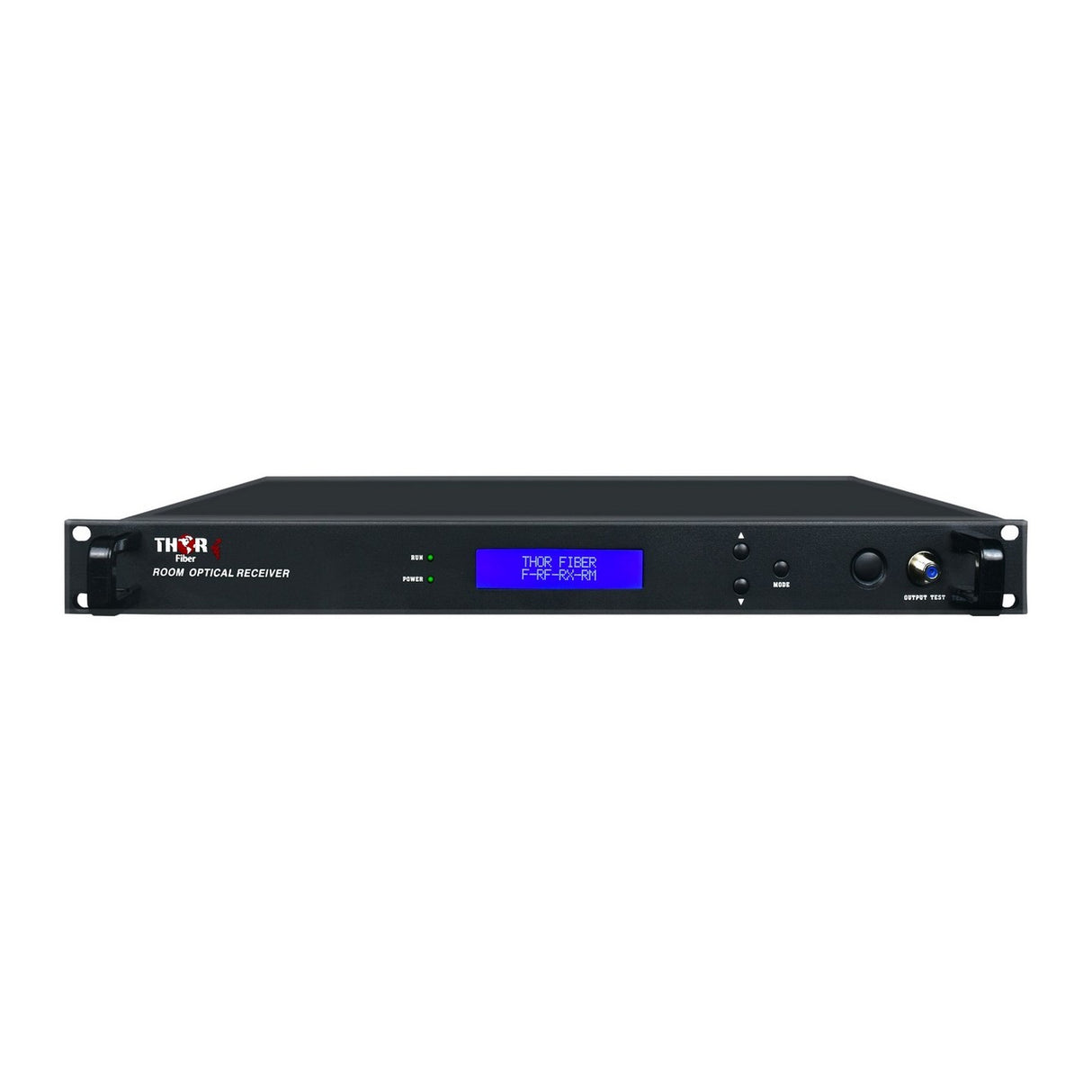

Thor F-RF-RX-RM RF Over Fiber Rack Mount Headend Receiver
Thor F-RF-RX-RM RF Over Fiber Rack Mount Headend Receiver
Free Shipping
Thor F-RF-RX-RM RF Over Fiber Rack Mount Headend Receiver
The F-RF-RX is used for receiving RF cable TV signals (45-870MHz) that are transmitted over an optical fiber. The unit can receive optical signals in either the 1310nm or the 1550nm bands. RF output power is controlled through Automatic Gain Control. Designed to work well with the F-RF-TX units, the F-RF-RX offer two optical receivers as well as two power supplies (optional). When one power supply becomes too warm the unit will automatically switch to the second power supply. The second optical receiver adds further redundancy and system reliability. The F-RF-RX features an easy to read front panel LCD screen that displays relative operating status and fault information. All operating parameters of the F-RF-RX series receivers are designed for high reliability and suitable fore even the most high end applications.
Key Features
- Rack Mount Broadband Optical RF Receiver for 45 - 870 MHz
- Automatic Gain Control AGC for RF power output level
- Heavy duty rack mount chassis with temperature control
- High Optical receiver sensitivity of -10 dBm optical power
Technical Specifications
Wavelength Response
850-1610nm
Optical Sensitivity
-9 dBm
Fiber Connector
SC/APC
RF Connector
Type-F 75 Ohm
Power Input
120-240 VAC
Power Rating
50W
Dimensions
19 x 10 x 1.75 IN
Temperature
-5 - 65 C
Item Includes
Optical Receiver
US Power Cable
User Manual
