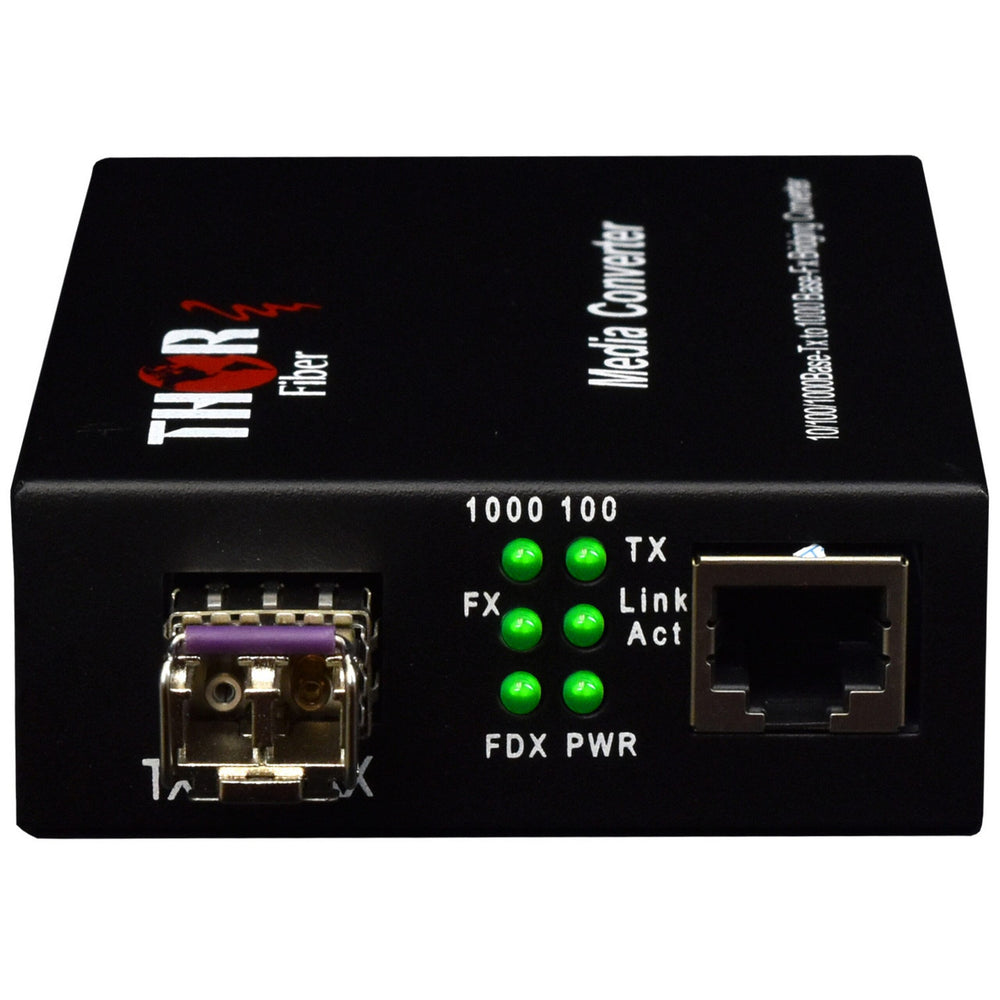

Thor Fiber F-GET-TR-SFP 10/100/1000 Ethernet Transceiver

Thor Fiber F-GET-TR-SFP 10/100/1000 Ethernet Transceiver

The Thor F-GET-TR-SFP Ethernet Transceiver with SFP is used for transporting a Gigabit Ethernet port over a fiber from one location to another. The units work in pairs with a transceiver on each end of the link. Any network cable connected to the RJ-45 port one one unit is transported to the corresponding RJ-45 port on the second unit. Our units work transparently, meaning they are non-IP addressable and any network traffic traveling through the the fiber link remains unmodified. Any two devices that are connected over the fiber link appear to be directly connected by a standard network cable. This is useful for connecting switches or other network devices in different buildings or for extending an IP network to a far away location. We also offer custom equipment to incorporate more signals onto a single fiber. In addition to Ethernet you can also carry video and audio channels, telephone lines, E1 or T1 links, or even satellite signals all over a single fiber. Our units have a maximum transmission distance of 120 km when used with singlemode fiber. We feature easy to read diagnostic LED's for continuous monitoring of link status and network speed. Contact a sales representative for more information.

Key Features

• 10/100/1000Base-T to 1000Base-X or 100Base-X FlexibleFiber SFP Media Converters
• Connect 10/100 devices to Fast Ethernet or 1000 Gigabit backbone
• Empty slot for standard Gigabit or Fast Ethernet Fiber SFPs
• Automatically adjusts to speed of Gigabit and Fast Ethernet fiber SFPs
• Connect to 10 Mbps, 100 Mbps or 1000 Mbps copper connections
• Allows for Fast Ethernet and Gigabit speeds using different SFP modules
• Supports Multimode or Single-mode fiber using different SFP modules

Technical Specifications

Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX
IEEE 802.3z 1000BASE-LX
Operating Mode
Full-Duplex
Fiber Type
Single Mode
Connection Ports
2 Fiber Port SFP Transceiver: LC/PC
RJ-45 Female
Dimensions
1" <26 mm> x 3.7" <95 mm> x 2.8" <70 mm>
Environment
Operating temperature
0C to 50C
Storage temperature
-20C to 70C
Operating humidity
10% to 90% RH
Storage humidity
5% to 90% RH
Power Requirements
Voltage
110/240V Auto-sense Internal Power
Registration
FCC Part 15 Class A, CE, UL, CUL, TUV
Network Media
62.5/125 microns muitimode or Single mode fiberfiber cable
LED Indicators
1 - Power
1 - Fiber Port Link/Act
1 - Copper Port Link/Act
1 - 1000Mbps
