Thor Fiber F-HDMI-SMSC HDMI Over Fiber Transmitter and Receiver
The F-HDMI-SMSC transmitter and receiver pair are used to carry HDMI video signals over longer distances than have traditionally been available. Thor singlemode HDMI over fiber systems only need a single strand of singlemode fiber optic cable with SC connectors. Modern SM-FOC gives these units a range of up to 25km. HDMI video cables are expensive and have a very limited range, typically less than 50 ft. Longer runs of HDMI cables also experience significant distortion of the signal. The F-HDMI-SMSC system allows a user to transport full uncompressed HDMI video at 1080i/1080p with up to 8 incorporated audio signals over a simple and inexpensive fiber optic cable. A simple passive DVI to HDMI adapter can also be used to transport DVI signals over the fiber. For extending set top boxes we also have a IR return path option. This uses an IR receiver at the receiving end to transmit commands from an IR remote over a return optical path. The IR signals are then rebroadcast via an included LED to control equipment on the transmitting end.
Key Features
- Simple to read input and output signal indicators
- Supports HDTV resolutions up to 1080p
- Supports computer display resolution up to 1920/1200@60Hz
- Transmission distances of up to 25km possible with single mode fiber
- Easy setup with Plug and Play interfaces
- IR remote control over seperate optical Return Path
Technical Specifications
Video Parameters
Resolutions
720p,1080i,1080p,800*600 to 1920*1200
Interface Supports
HDMI Interface with HDCP Function
Audio Parameters
Working Mode - Un-balance (stereo), Input/Output Impedance - 10k/50 Ohms
Max Input/Output Power Level
5 dBu/4Vpp (stereo)
Characteristics of Frequency
20Hz ~20kHz @ -3dB
Signal to Noise Ratio
>70dB @ 1k Hz (stereo)
Interface
3.5 mm
Dimensions
170x100x35 mm
Power Supply
12VDC @ 1.5A
Working Temperature
0-50 C
Optical Parameters
Optical Fiber Complies with IEEE802.3zin in 1000BASE_LX
Optical Wavelength
1310 nm
Rate of Emission
-9.5 3dBm rate of emission for balance optical signal @1310nm
Optical Receiver Sensitivity
-23dBm balance optical rate @1310nm
Item Includes

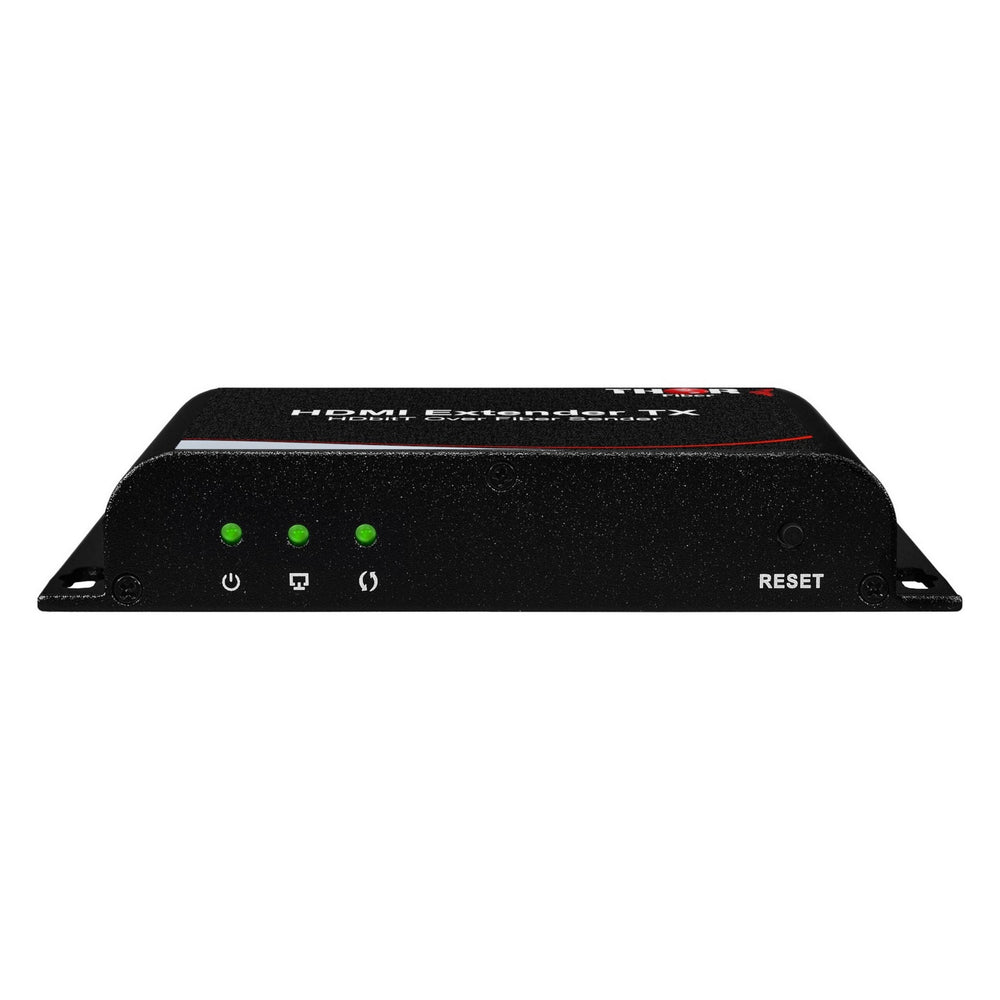

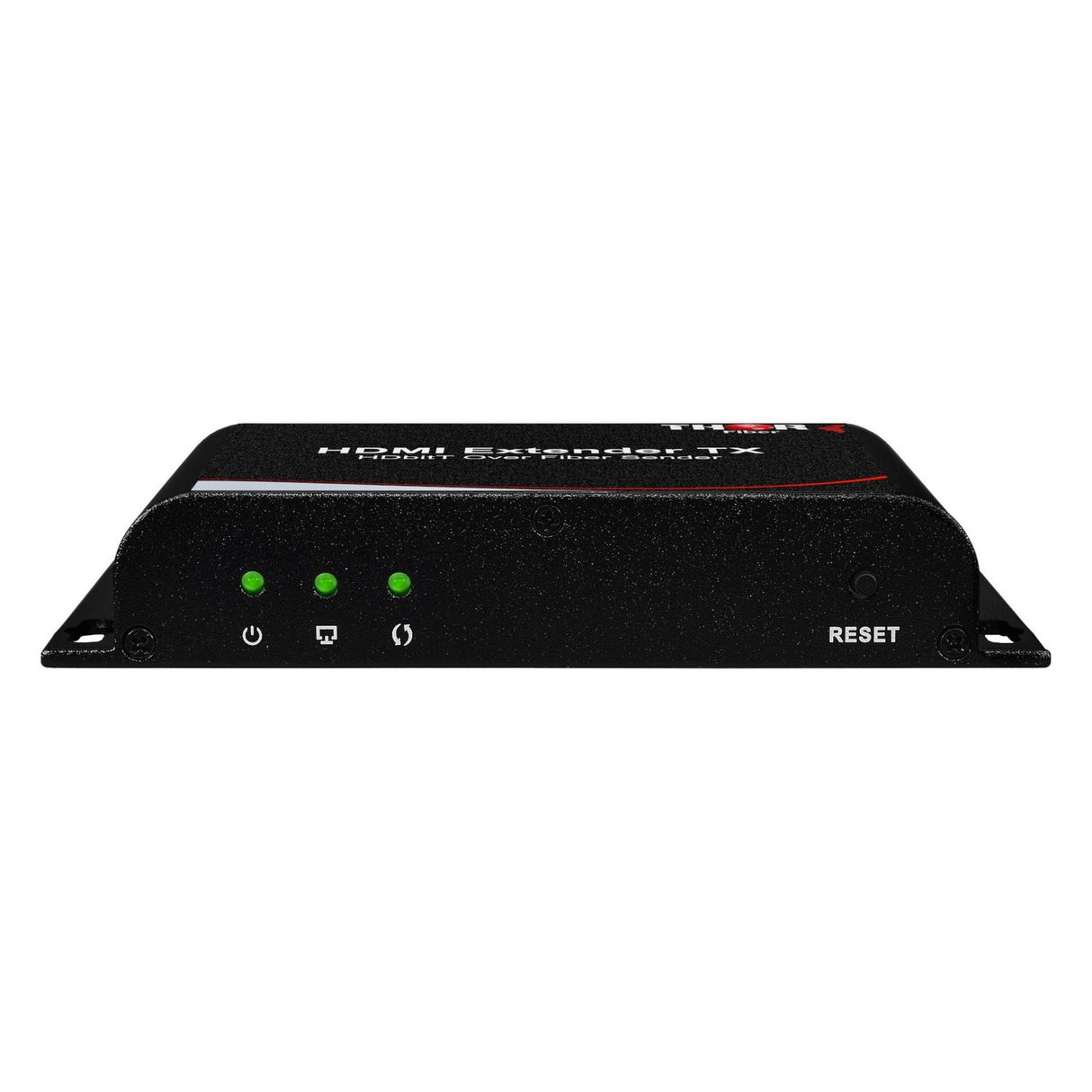

HDMI Transmitter with SC/APC
HDMI Receiver with SC/APC
2x External Power Supplies
