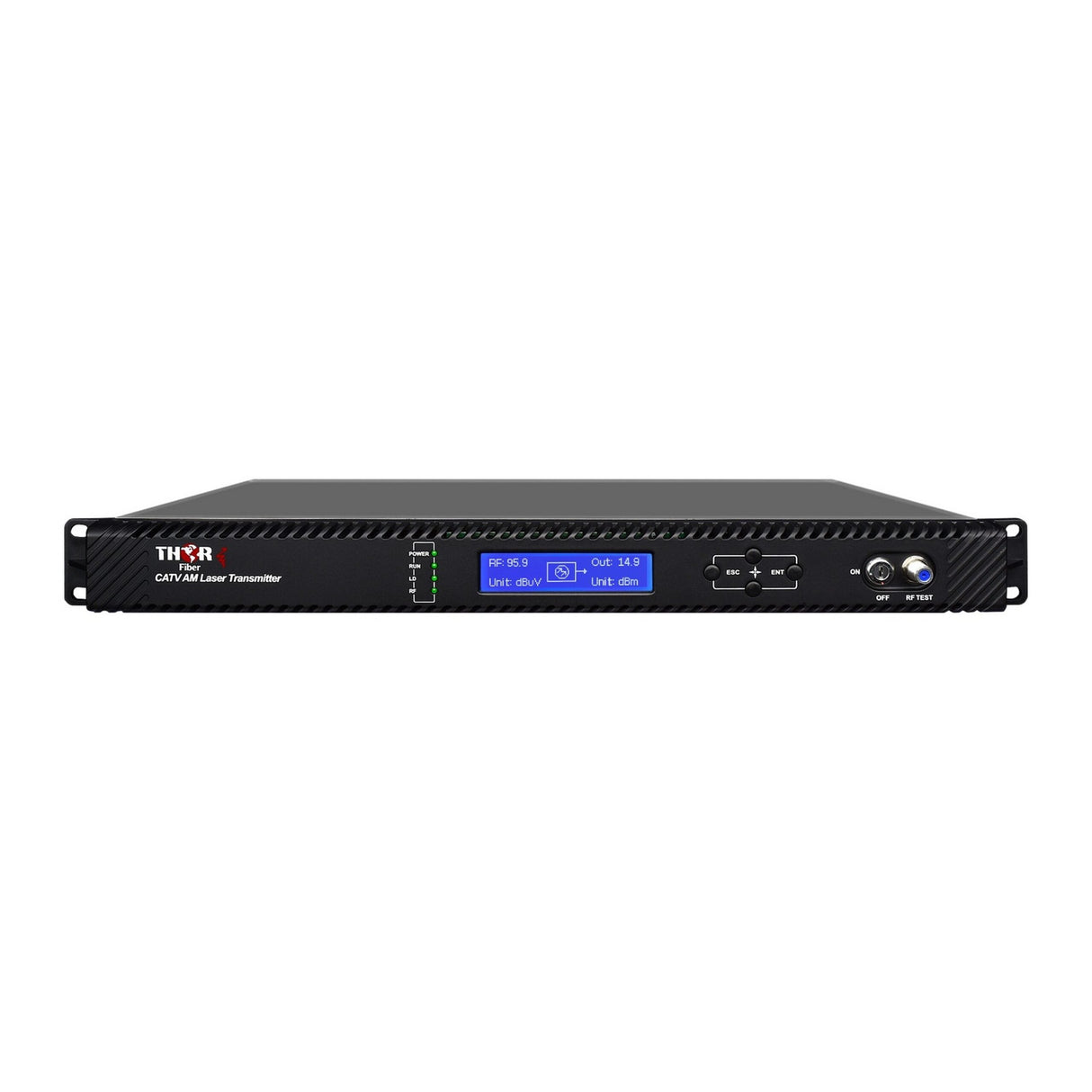

Thor Fiber F-RF-BR Thor Fiber CATV Fiber Break Solution Transmitter and Receiver
Thor Fiber F-RF-BR Thor Fiber CATV Fiber Break Solution Transmitter...
Free Shipping
Thor Fiber F-RF-BR Thor Fiber CATV Fiber Break Solution Transmitter and Receiver
Low cost RF Fiber Break for military and high security applications. RF Fiber Breaks are used to transport the RF over a single directional fiber link. This prevents signals from being passed in the return direction. Often times this is required for high security and military applications. These units are for short distance RF over fiber applications to create a single direction RF Fiber Break. Because of the nature of RF over fiber systems, signals can only travel in one direction without return path optics. Our standard units are for CATV band 45-870 MHz, but we can also provide units for satellite bands as well as other communication system frequencies. Coax cabling represents a serious security vulnerability to any location with access to highly sensitive data. Protect your facility today with low cost RF Fiber Breaks from Thor.
Key Features
- Low cost RF Fiber Break for Security Applications
- All working parameters controlled by a microprocessor
- Form Factor 1 RU Transmitter
- Includes Thor Transmitter, Jumper, and Mini Receiver
- Single Directional RF Transport
- Easy & quick installation with everything included
Technical Specifications
Laser Power
4mW
RF Frequency
5-1000Mhz
Wavelength
1310nm
Optical Power
> +3.5 dBm
Fiber Connector
SC/APC
RF Input Power
19 - 21 dBmV
RF Connector
Type-F 75 Ohm
Power Input
120-240 VAC
Power Rating
50W
Dimensions
19 x 10 x 1.75 IN
Temperature
-5 - 65 C
RF Receiver- Compact simple fiber Input and RF output
