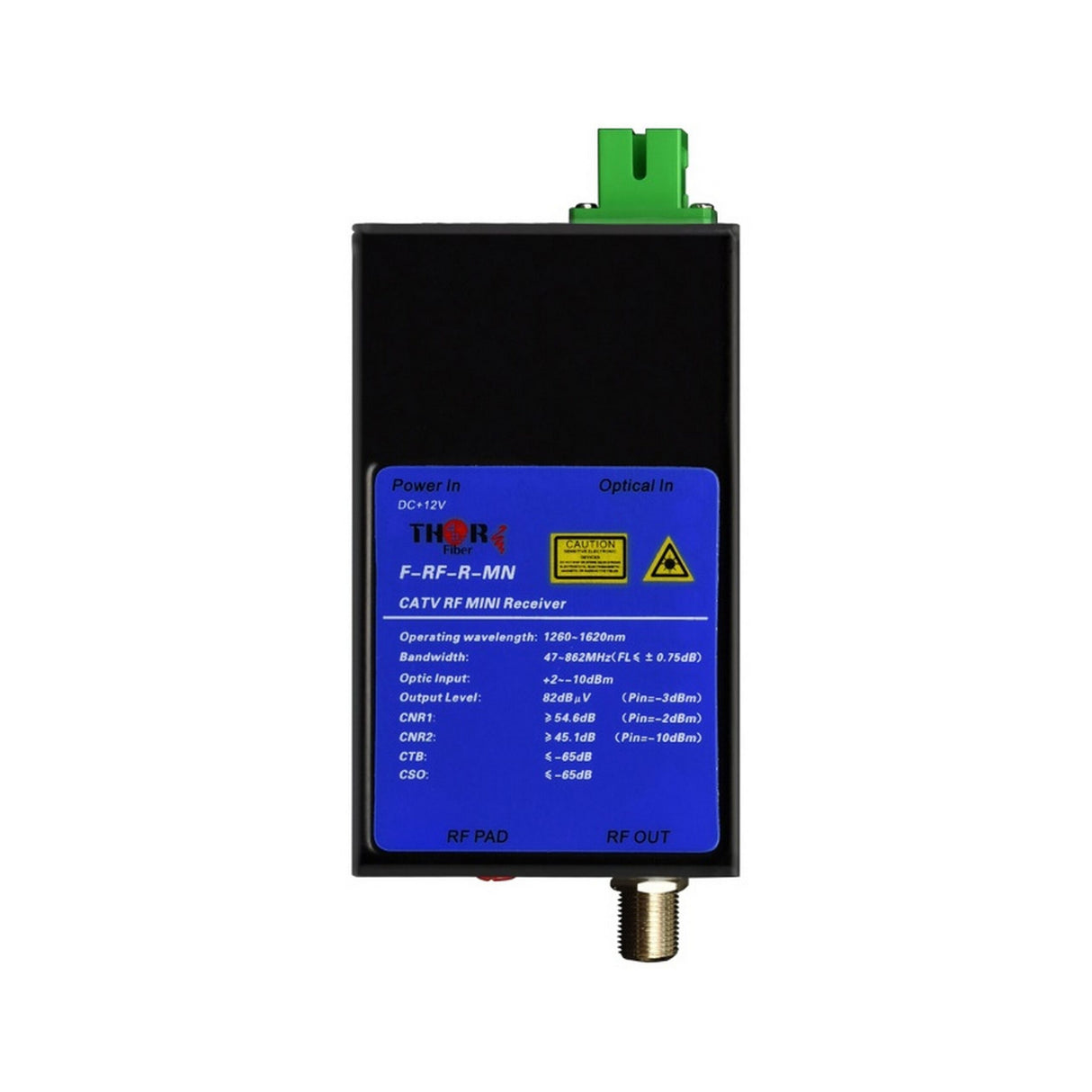

Thor Fiber F-RF-Rx-MR RF Over Fiber Compact RFoG Drop Receiver, 45-870 MHz

Compact and affordable RF fiber optic receiver for Television Coax signals. Converts the fiber optic signal from a transmitter back to coax for distribution to TV’s and tuners. The Thor F-RF system is used for the transport and distribution of CATV RF signals over fiber optic cable. The transmitter converts the incoming RF signal (870 MHz) to an optical signal. This optical signal can be distributed to multiple end points with a coupler, or can be run more than 20 miles over a singlemode fiber optic cable. Often times a full size rack mount receiver is not needed at the endpoints. The CATV mini receiver is used as a low cost end point when rack equipment is not needed. The units have adjustable RF output level to drive multiple displays and ship with robust external power supplies. These units can also be used to make low cost 'Fiber Breaks'. A Fiber Break allows RF to pass in only one direction and are essential for high level data security. Without an RF return path, the system cannot be modified to extract data over an RF line.

Key Features

• Compact Drop Receiver for Fiber to Coax Silent Design with Passive Cooling
• Fanless design for silent operation and installation in any location
• Compact form factor with adjustable manual gain control and external PSU
• Works with full channel linup telivision RF signals from 45 - 870 MHz

Technical Specifications

Wavelength Response
850-1610nm
Optical Sensitivity
-9 dBm
Fiber Connector
SC/APC
RF Connector
Type-F 75 Ohm
Power Input
12 VDC
Power Rating
20W
Termperature
-5 - 65 C
Item Includes
Optical Receiver
US Power Cable
User Manual
