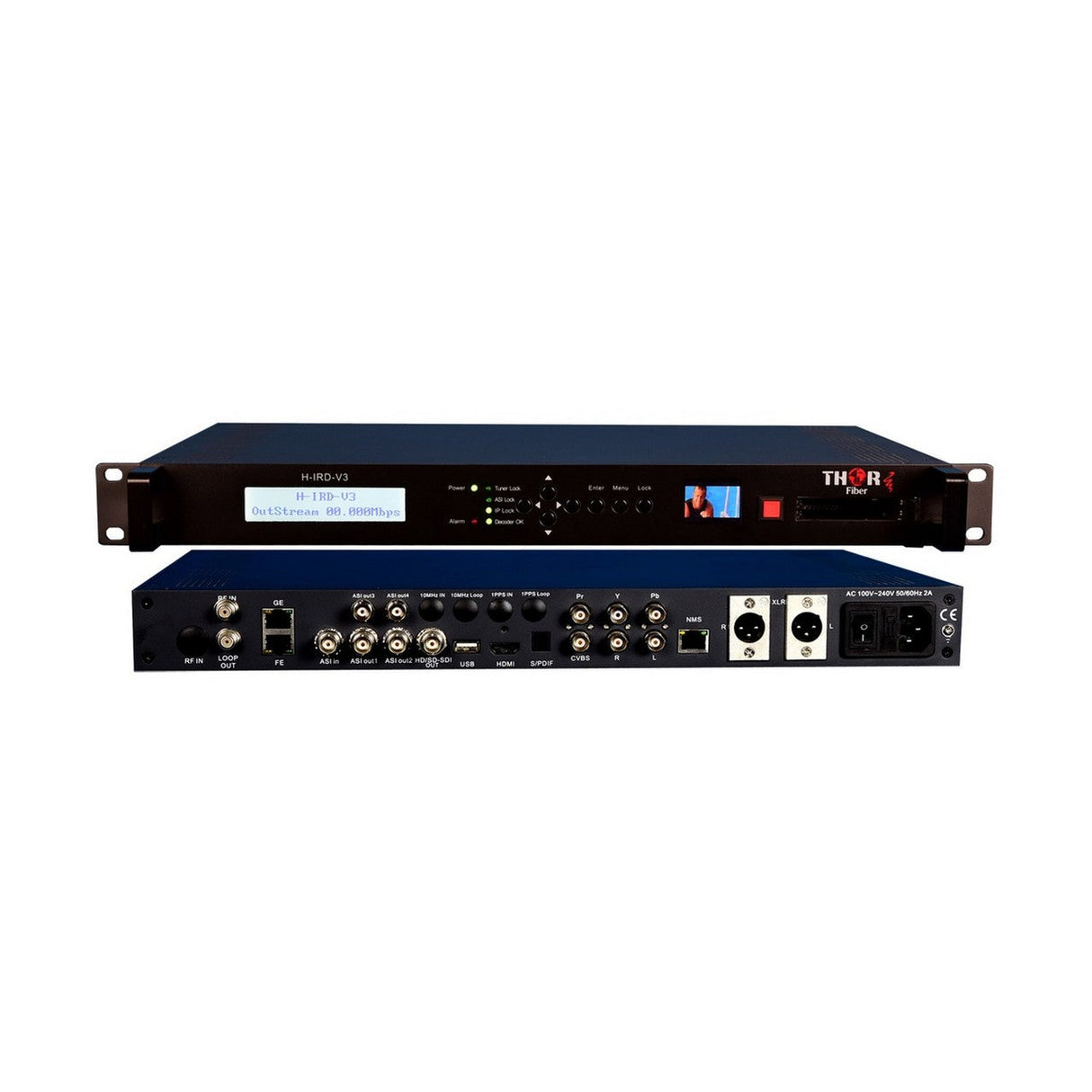

Thor H-HD-IRD-V3A Integrated Receiver Decoder for 8VSB/ DVB-ASI, IP to 3G-SDI/ HDMI/ YPbPr and CVBS
Thor H-HD-IRD series Integrated Receiver Decoders have several applications for decoding program content to broadcast quality video. Equipped with every major video signal output, including HD-SDI, Thor H-HD-IRD units can provide HD video to any display or professional video system. Also available are modern digital audio outputs on both optical Toslink and XLR connectors. Dolby AC/3 audio pass through is standard, and closed caption support for both 608 and 708 captioning systems is present.
Key Features
- Broadcast Integrated Receiver Decoder System
- Integrated RF Tuner ATSC 8VSB Antenna type TV
- Decodes any IP or ASI program from SPTS or MPTS
- Network managed on decidated network interface
- Supports 608 closed captions & 708 on HD-SDI out
- Remap PIDs from any TS input to any TS output
- Process, remap, and remultiplex up to 32 streams
Technical Specifications
Input
RF Tuner - DVB-S/S2. ATSC Off Air, Cable QAM, DVB-T, ISDB-T (model dependent), DVB-ASI, Network IP.
Supported Output Resolutions
HD-SDI 1080i, 720p, 720i, 576i, 480i, HDMI 1080i, 720p 720i, YPbPr 1080 720p 720i, CVBS 576i, 480i.
Video Codecs
H.264 - MPEG-2.
Audio Codecs
MPEG1 Layer 2, MPEG2 Layer 2, Dolby AC/3, HD-AAC V2, LC-AAC.
ASI Input
1x BNC 188/204 format up to 200 Mbps.
IP Input
1x RJ-45 10/100 UDP or RTP up to 85 Mbps.
RF Input
1x Type-F, ATSC-T: 54-860 MHz 6M Bandwidth, QAM: 47-860 MHz QAM16, 32, 64, 128, 256, DVB-S: 950-2150 MHz Symbol Rate 2-45 MBaud, DVB-S2: 950-2150 MHz QPSK 1-45 MBaud, DVB-T: 145-870 MHz 6, 7, 8 M Bandwidth, DVB-C: 45-870 MHz QAM16, 32, 64, 128, 256, ISDB-T: 153-858 MHz 6, 7, 8 M Bandwidth.
Audio Output
2x BNC - Analog Unbalanced, 2x XLR - Digital AES/EBU, 1x Toslink - Digital Optical.
IP Transport Stream Output
1x MPTS UDP or RTP, 1-32x SPTS UDP or RT.
ASI Transport Stream Output
2x ASI Multiplexed Output, 2x ASI Tuner Pass Through.
Managment Interface
Web Based Browser Interface, Full Front Panel LCD Interface, Front Panel LCD Video Monitor.
Dimensions
20 x 18 x 1 -1/2 Inches .
Weight
7 lbs.
Operating Temperature
28 ~110 degrees F.
