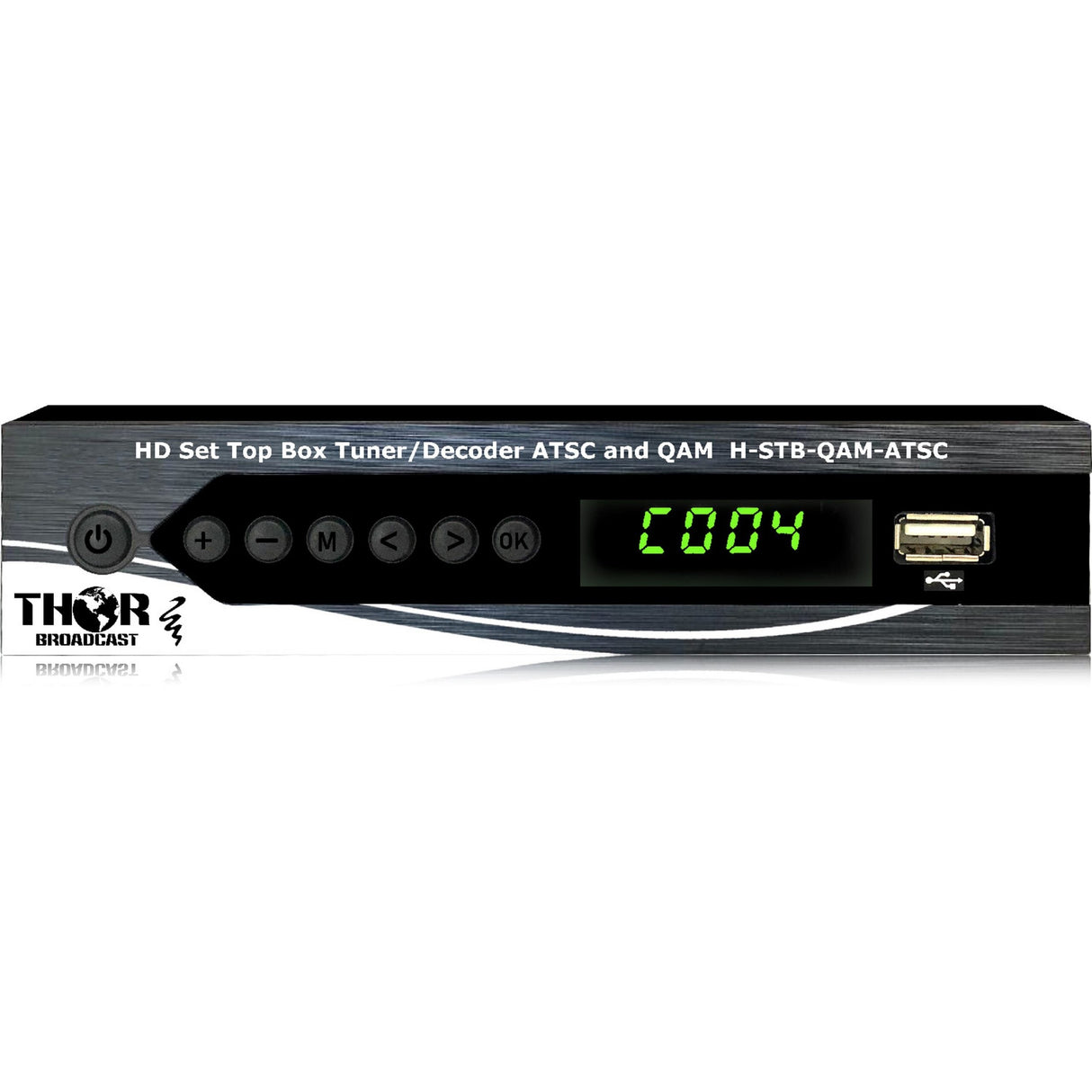

Thor H-STB-QAM-ATSC QAM CATV RF and ATSC RF to HDMI Decoder
The Thor H-STB-QAM-ATSC is a unique universal dual-standard Set Top Box - IRD Integrated Receiver Decoder and PVR Recorder -Digital TV converters
1) CATV RF Off the Air antenna digital ATSC signal Tuner Decoder
2) CABLE TV Digital DVB-C Annex B QAM 64/256 Tuner Decoder.
This decoder can decode ATSC and Clear QAM Modulated RF.
The decoder has four outputs
1) HDMI output up to 1080p60
2) YPbPr component Audio Video Output up to 1080i (RCA connectors)
3) CVBS Analog Baseband Video and Audio output (RCA connectors)
4) CATV RF Analog Output NTSC/PALchannel 3 and 4 (Application - Digital RF to Analog NTSC /PAL converter)
Key Features
- Auto & Manual search, 4000channels for TV & Radio
- ATSC and DVB-C Annex B QAM 64/256
- EPG for enhanced program information, favorite channel and station list
- USB2.0 PVR for record & playback TV channels
- 16:9 full screen, 4:3 letterbox & fullscreen
- Support Teletext and DVB subtitle
- Timer On/Offsetting
- Parental guidance locking
- Full function remote control
- Low power mode
- HDMI output up to 1080p/60
- YPbPr video output up to 1080i/60
- CVBS baseband video output up to 480i
- ANALOG RF OUTPUT CH 3 or 4 selectable NTSC/PAL
Technical Specifications
High-Frequency Tuner
Input Frequency Range
54 ~ 862MHz (VHF&UHF), ATSC and DVB-C QAM ANNEX B
Bandwidth
6 MHz
Input Signal Level
0- +25dBmv
RF Input Connector
F Type Female
Input Impedance
75 OHMS
Demodulation Mode
Waveform
8VSB and QAM
Demodulation
ATSC / QAM 64/256
Video Outputs
HDMI, YPbPr, CVBS, Analog RF CH3/4
Video Decoding
Video Decoding Format
MPEG-1, MPEG-2, MPEG-4 HD? H.264 DivX (free version)
Video Resolution
480i/576i/480p/576p/720p/1080i/1080P
Video Input Code Rate
45,5MbIt's Max.
Teletext
Support DVB-ETS300472
Aspect Ratio
4:3/16:9
Image Signal System
AUTO/PAL/NTSC
Audio Decoding
Audio Decoding Format
IMPEG-1, MPEG-2(Layer I/II), MP3, AC3
Audio Track
Stereo, Dual Track, Monophony (L, R), USB 2.0
Format
MP3/JPEG/BMP
File System
FAT32, FAT 16, NTFS
Current
500mA Max
Supports software upgrade
Power
Rated Voltage
~230V, 50Hz
Rated Voltage Range
~176-264V, 50Hz
Rated Power Consumption
ā¤ 8 W
Power Consumption
ā¤ 13 W Max
Standby Power Consumption
0,45W
Work Environment
Temperature
0~40 Degrees C
Humidity
<90%
Dimensions
Weight
1.0 Kg
Size
130(W)*113(D)*33(H) mm
Item Includes
1x Thor H-STB-QAM-ATSC QAM CATV RF and ATSC RF to HDMI Decoder STB / Digital RF to HDMI Decoder
