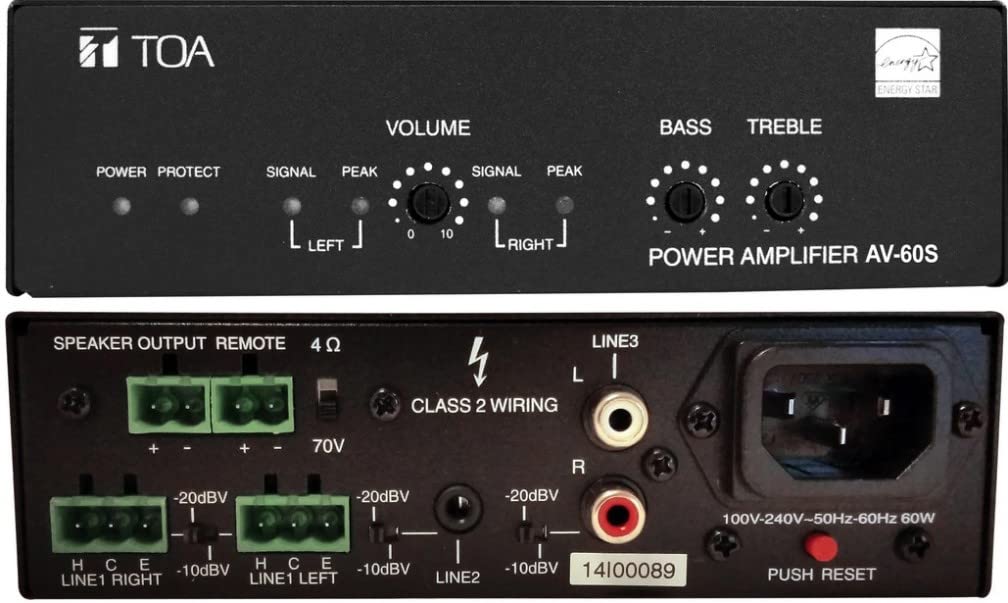

TOA Electronics AV-60S-AM Single Channel 60W Digital Amplifier
The AV-60S-AM is a single channel digital amplifier for speech and general announcement. This compact amplifier is equipped switching power supply circuit inside, Energy Star 3.0 certified and PLENUM rated (UL 2043 tested) for the installation into air handling space without external AC adaptor. The rated output power is 60W at 70V or 4 Ohms. The unit is suited to use in board room, conference room and AV presentation room
Technical Specifications
Power Source
100V-240V AC, 50Hz/60Hz
Rated Output
60W @ 4 Ohms, 60W @ 70 V
Power Consumption Rated Output
Less than 85 W @ 70 V, Less than 110 W @ 4 Ohms
Idle Power Consumption
Less than 10 W @ 70 V, Less than 7 W @ 4 Ohms
Power Consumption in Power Saving Mode
Less than 1 W
Frequency Response
4 Ohms mode: 20Hz to 20KHz -3dB
70V mode: 60Hz to 20KHz -3dB
(Line1 input with transformer: 100Hz to 20KHz)
Total Harmonic Distortion
Less than 0.15%
Input
Line 1: -10/-20dB* (selectable), 10 K ohms, transformer-balanced, removable terminal block
Line 2: -10/-20dB* (selectable), 10 K ohms, unbalanced, 3.5mm stereo jack
Line 3: -10/-20dB* (selectable), 10 K ohms, transformer isolated unbalanced, RCA jacks
Output
Speaker output, removable terminal block (2P)
Tone Control
Bass: -10 dB at 100 Hz, Treble: - 10dB at 10 kHz
Controls
Master volume control
Remote volume control
Bass tone control, Treble tone control
70 V / 4 Ohm switch
Input sensitivity switches (Line 1, Line 2, Line 3)
Indicator
Power LED, Protection LED, Signal LED, Peak LED
Other Feature
Automatic Level Control, Thermal/Over-current protection, Automatic power save function (EnergyStar rated)
Operating Temperature
-10C to 40C (14F to 104F)
Case
Black metal case
Dimensions
150 (W) x 44 (H) x 156 (D) mm (5.9” x 1.73” x 6.14”)
Weight
1.12 kg (2.5 lb)
