TOA Electronics BG-235 Amplifier and Mixer (Used)
Great: Minimal signs of use.

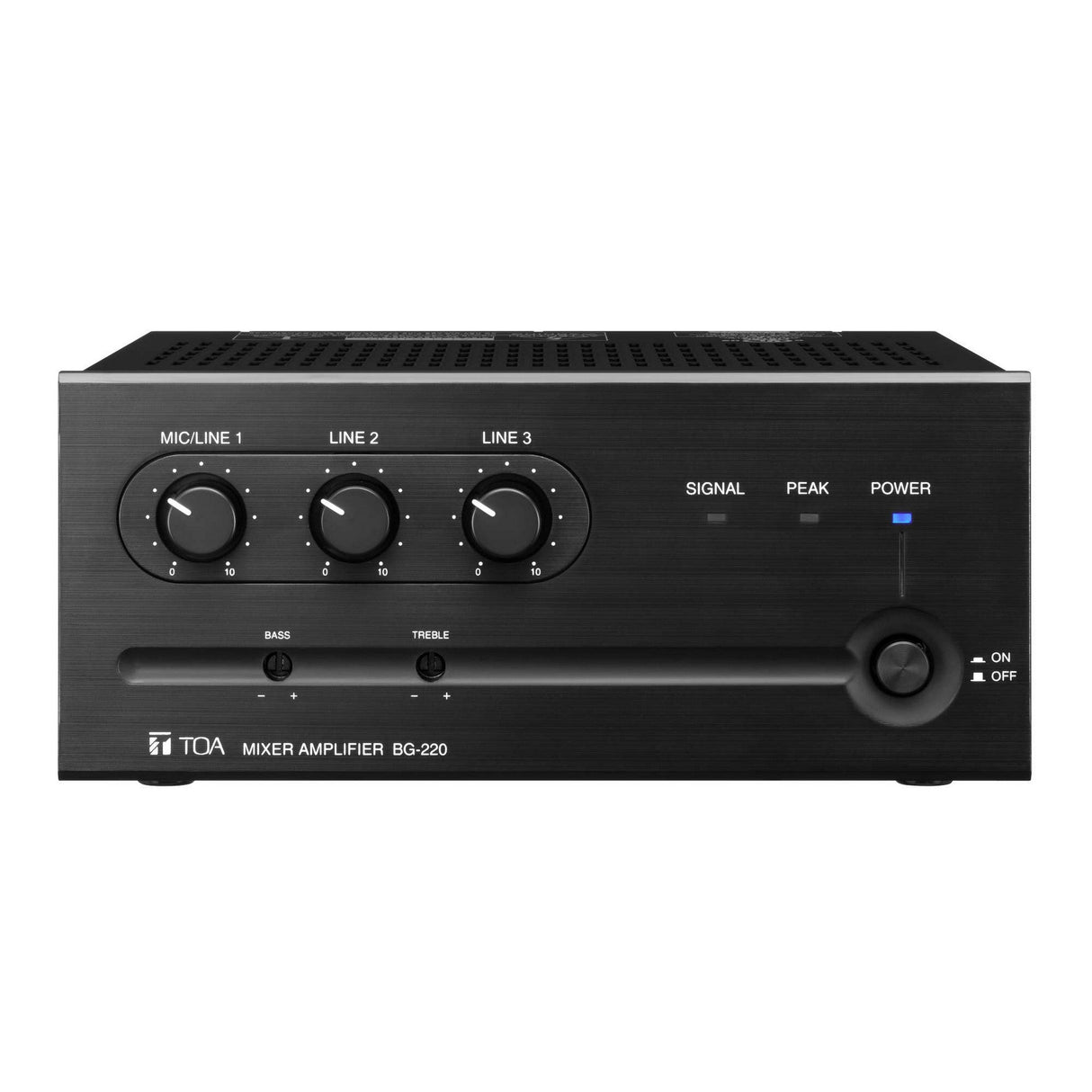

TOA Electronics BG-235 Amplifier and Mixer
The TOA BG-235 is a versatile 35-watt mixer amplifier designed to deliver high-quality background music and clear announcements. Ideal for environments such as bars, retail stores, and banquet rooms, this unit seamlessly integrates into various audio setups. Its robust construction and thoughtful design ensure reliable performance, making it a preferred choice for both new installations and system upgrades.

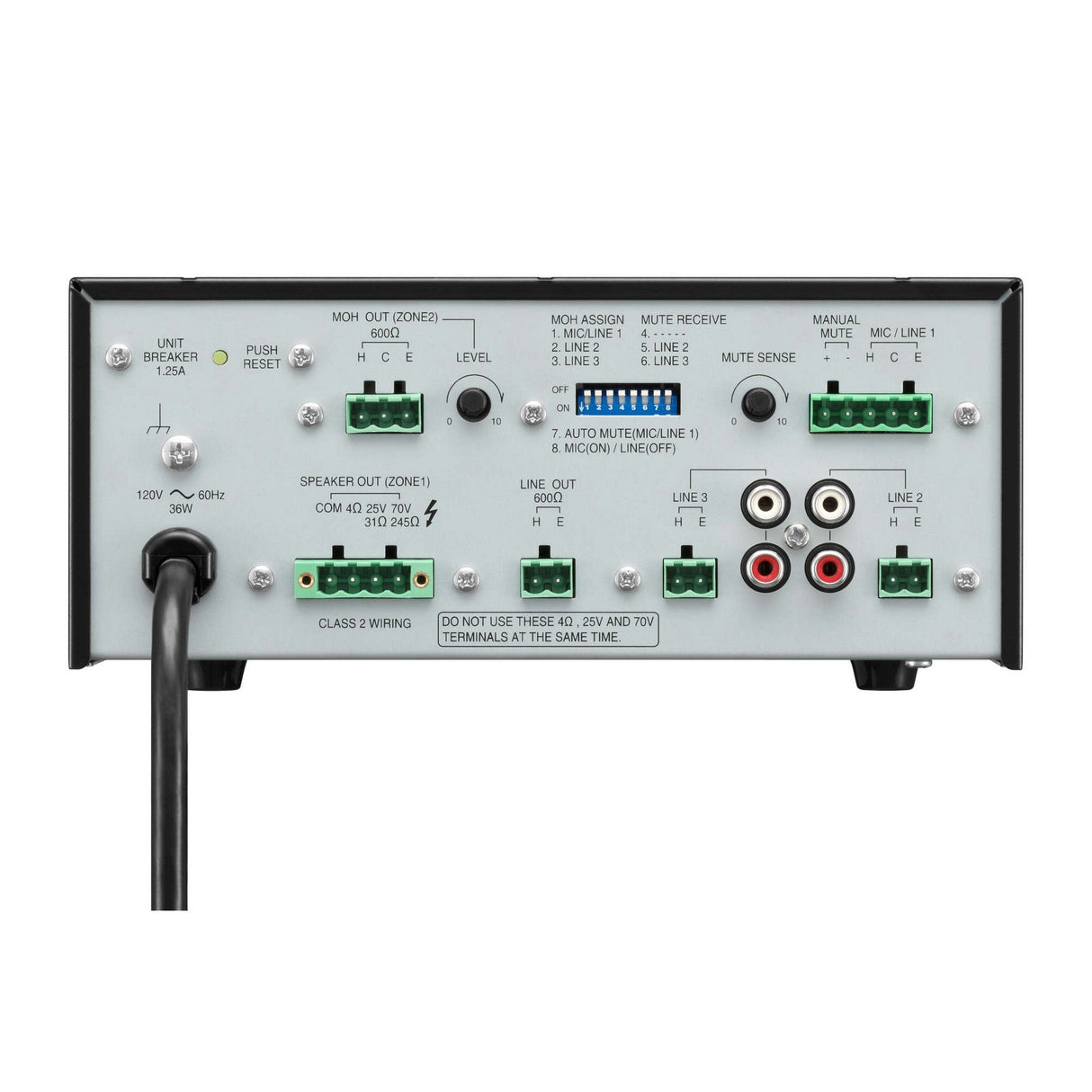

Equipped with three inputs, the BG-235 offers flexibility to accommodate different audio sources. Input 1 is selectable between microphone and line-level signals, providing adaptability for various applications. Inputs 2 and 3 are designed with RCA pin jacks, facilitating easy connection to standard audio equipment. The inclusion of removable terminal blocks for all inputs and outputs simplifies installation and maintenance, ensuring a hassle-free setup process.
One of the standout features of the BG-235 is its Music On Hold (MOH) output, which enables two-channel broadcasting when paired with optional booster amplifiers like the BA-235 or BA-260. This capability allows for expanded audio coverage and zone management, enhancing the overall audio experience in multi-room or large-area setups. Additionally, the amplifier includes recessed, tamper-proof bass and treble controls to preserve system settings and maintain consistent audio quality.
Key Features
- 35 W mixer amplifier suitable for background music and announcements
- Three inputs: one mic/line selectable and two line inputs with RCA pin jacks
- Removable terminal blocks for quick and easy installation
- Rear panel-mounted DIP switches for straightforward configuration
- Auto/manual mute function with adjustable sensitivity
- MOH output for two-channel broadcasting with optional booster amplifiers
- Recessed bass and treble controls to prevent accidental adjustments
Technical Specifications
Power Source: 120 V AC, 60 Hz
Rated Output: 35 W
Power Consumption: 90 W (rated output), 55 W (based on cULus standards)
Frequency Response: 50 Hz - 20 kHz
Total Harmonic Distortion: 0.5% or less at 1 kHz, rated output
Signal to Noise Ratio: Mic/Line 1: 60 dB or more; Line 2, 3: 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Input: Mic: -60 dB; Line 1: -10 dB (Mic/Line 1 selectable, 600 Ī©, electronically balanced, removable terminal block); Line 2, 3: -10 dB, 10 kĪ©, unbalanced, removable terminal block or RCA jack
Output: Speaker: 4 Ī©, 25 V (18 Ī©), and 70 V (140 Ī©), balanced, removable terminal block; MOH: 0 dB, 600 Ī©, balanced, removable terminal block; Line: 0 dB, 600 Ī©, unbalanced, removable terminal block
Output Regulation: 2 dB or less, no load to full load (1 kHz)
Tone Control: Bass: Ā±10 dB at 100 Hz; Treble: Ā±10 dB at 10 kHz
Muting: Manual mute/Automatic mute
Control: Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1), Mic/Line 1 selector switch, Mute receive switch (Line 2, 3), MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch
Indicator: Power LED, Signal LED, Peak LED
Operating Temperature: 32Ā°F to 95Ā°F (0Ā°C to +35Ā°C)
Operating Humidity: 35% to 80% RH (no condensation)
Finish: Panel: ABS resin, black; Case: Steel plate, black paint
Dimensions: 8.27" (W) x 3.71" (H) x 10.43" (D)
Weight: 8.82 lbs
What's Included
- Volume control cover: YA-920 (3 pieces)
- Removable terminal plugs: 2-pin (3 pieces), 3-pin (1 piece), 4-pin (1 piece), 5-pin (1 piece)
