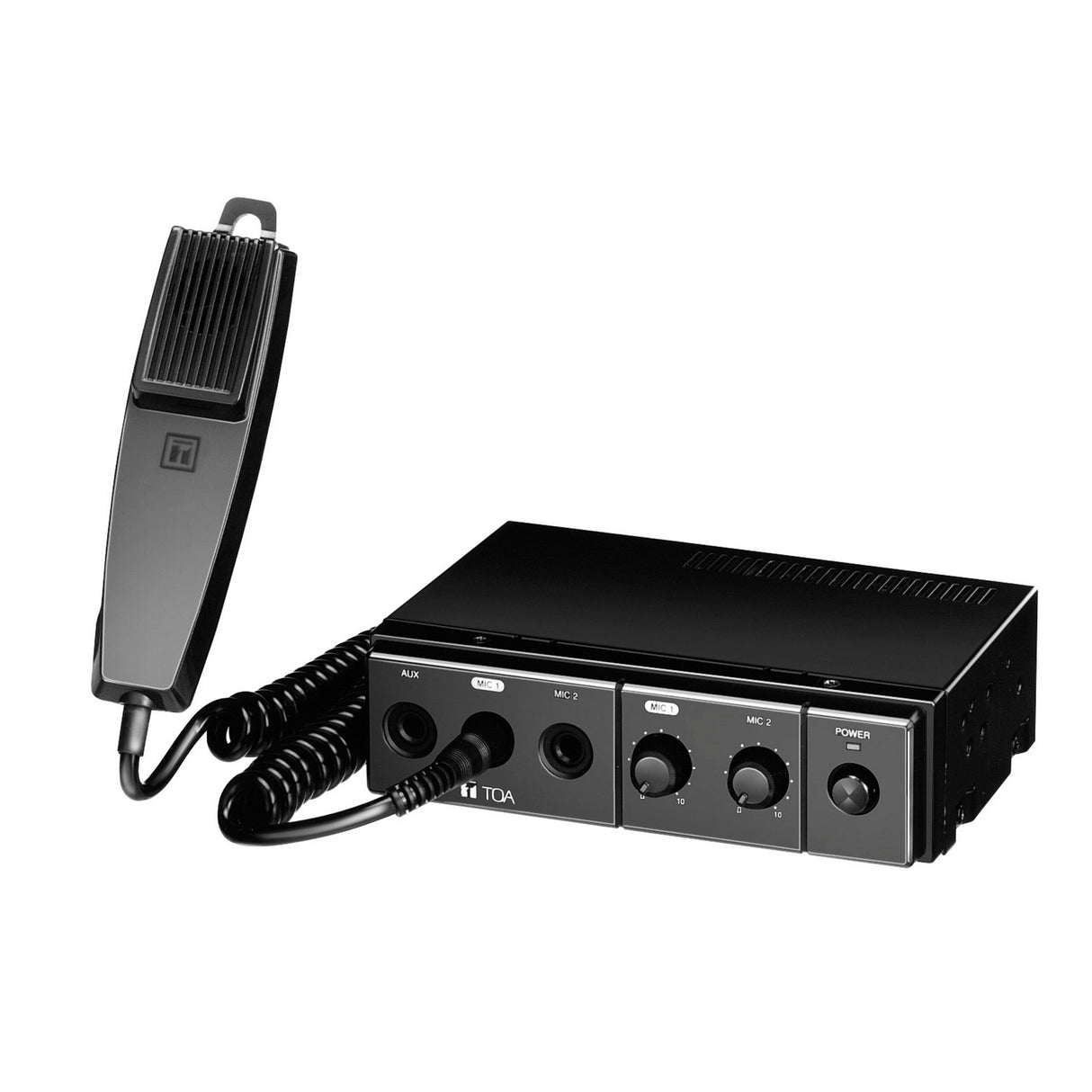

TOA Electronics CA-115 15 Watt Car Amplifier/Mixer with Microphone

The CA-115 is a 1-DIN size unit 15 W car amplifier designed for use with a 12 V car battery.

Technical Specifications

Power Source
Standard voltage: 14 V DC
Usable voltage: 10 16 V DC (12 V battery used)
Power Consumption
3 A or less at rated output
Rated Output
15 W
Output Impedance
4 (BRN), 8 (ORG), Common (WHT)
Changeable by changing lead wire connections
Distortion
Less than 5% (at 1,000 Hz rated output)
Frequency Response
100 10,000 Hz
Input
Mic1, 2: 600 , 4 mV, phone jack
Aux: 10 k, 500 mV, phone jack
Finish
Front panel: ABS resin, black
Case : Zinc plated steel sheet
Dimensions
178 (W) - 50 (H) - 132 (D) mm (Mounting device excluded)
Weight
900 g
