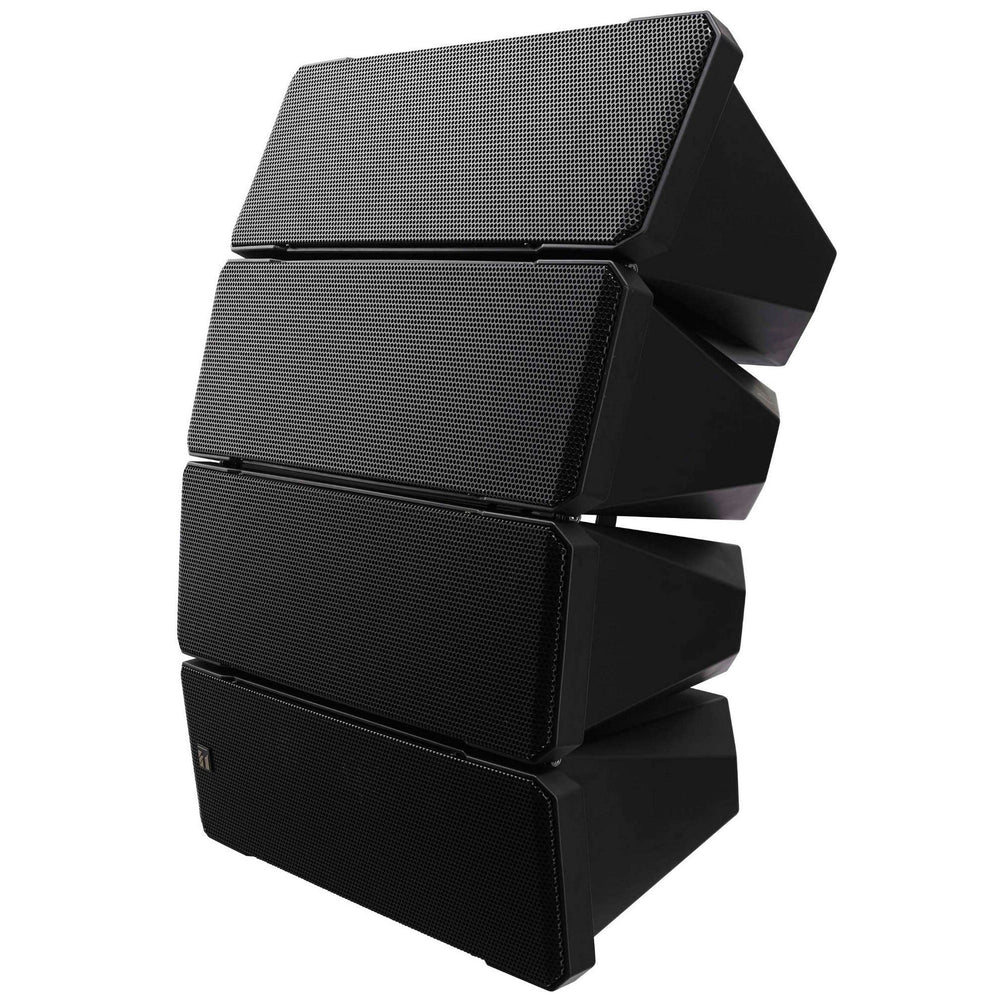

TOA Electronics HX-7B Variable Dispersion Line Array Speaker
TOA Electronics HX-7B Variable Dispersion Line Array Speaker
TOA Electronics HX-7B Variable Dispersion Line Array Speaker
The TOA HX-7B Compact Line Array Speaker redefines the way you experience sound. Designed for a variety of applications—from live events to fixed installations—this speaker delivers exceptional audio quality, ensuring that every note is crisp and every voice is clear. With its innovative design, the HX-7B features a unique array configuration that allows for precise sound directionality, making it ideal for spaces where clarity is paramount. Its compact size does not compromise on performance, enabling it to blend seamlessly into any environment while still delivering powerful output. Whether you are in a small venue or a larger auditorium, the HX-7B is engineered to provide an immersive listening experience that keeps your audience engaged.
Constructed with high-quality materials, the HX-7B ensures durability and longevity, making it a reliable choice for professionals in the audio industry. Its lightweight build allows for easy transport and installation, while the speaker's adjustable angles provide flexibility in sound projection. The HX-7B is also equipped with advanced technologies that minimize distortion and enhance overall sound quality. This makes it a perfect fit for conferences, concerts, or any event where high-quality audio is essential. Experience the next level of audio performance with the TOA HX-7B—where innovation meets quality.
Key Features
- Compact design for easy integration in various environments
- Adjustable angle for customized sound projection
- Durable construction for long-lasting performance
- Lightweight for easy transport and installation
- High-quality sound reproduction with minimal distortion
Technical Specifications
Enclosure
Bass-reflex type
Power Handling
Continuous pink noise: 250 W (IEC60268-5: 350 W)
Continuous program: 750 W
Rated Impedance
8 Ω
Sensitivity
100 dB (1 W, 1 m)
Frequency Response
75 Hz – 20 kHz
Crossover Frequency
1.7 kHz
Directivity Angle
Horizontal: 100º
Vertical: Depending on directivity angle mode
Speaker Component
Low frequency: 13 cm (5.5") cone-type x 8
High frequency: Wave front control horn with compression driver x 4
Input Terminal
Speakon NL4MPXX x 2 and M4 screw terminal, distance between barriers: 9 mm (0.35")
Finish
Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black, paint
Hanging bracket: Steel plate, t3.0, black, paint
Dimensions
497 (W) x 664 (H) x 274 (D) mm (19.57" x 26.14" x 10.79")
Weight
30 kg (66.14 lb)
Included Accessories
Hanging bracket L, R (L and R are symmetrical to each other) x 1 each,
Hanging bracket mounting bolt x 4
