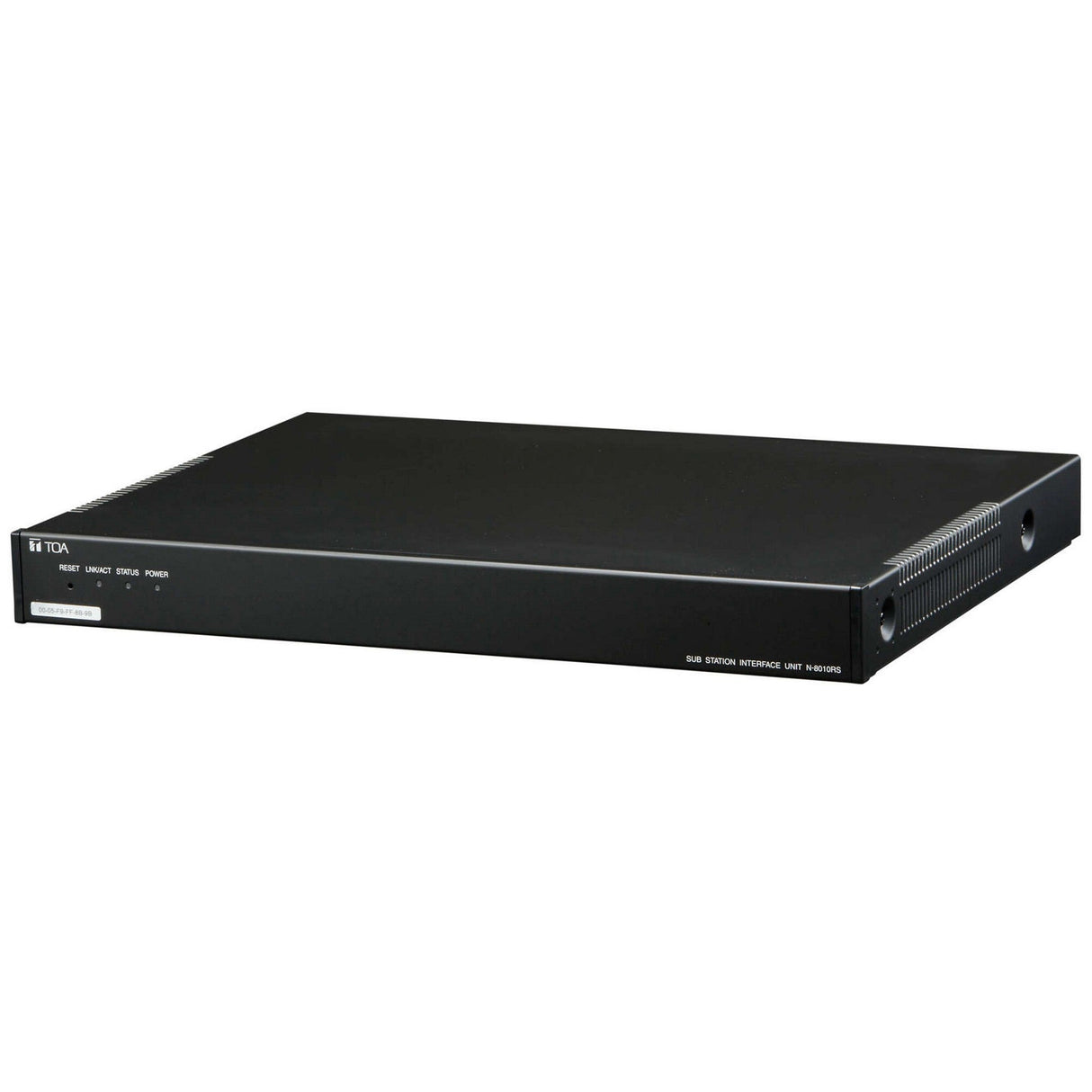

TOA Electronics N‑8010RS IP Network Sub-Station Controller

The TOA N‑8010RSCU is a high-performance IP network sub-station controller designed to complement TOA’s N‑8010EX intercom systems. This controller enables seamless communication between stations and sub-stations, providing reliable half-duplex conversations over analog baseband lines. With support for up to 16 lines and a single speech link, the N‑8010RSCU ensures clear, hands-on communication for medium to large-scale facilities, including offices, factories, and commercial buildings.

Equipped with a 10BASE-T/100BASE-TX network interface, the N‑8010RSCU integrates smoothly into existing IP infrastructures. It supports TCP/IP, UDP, HTTP, RTP, ARP, ICMP, and IGMP protocols and allows audio packet transmission through both unicast and multicast systems. Voice sampling frequencies can be configured between 8 kHz and 16 kHz with 16-bit quantization, while Sub-band ADPCM encoding and optional cryptosystem support ensure secure, high-quality audio delivery even under packet loss conditions.

Installation is highly flexible. The N‑8010RSCU can be mounted in a standard rack, placed on a desk, or surface-mounted using included brackets. Constructed with a black pre-coated steel chassis and forced-air cooling, the unit is built for continuous operation. Its robust design and operational tolerance-from 32 °F to 104 °F and up to 90% relative humidity-make it suitable for a wide variety of indoor environments.

Key Features

• Supports up to 16 lines and 1 speech link for sub-station communication
• Half-duplex analog baseband transmission system with multiple transmission ranges
• Network-ready with 10BASE-T/100BASE-TX and support for standard TCP/IP protocols
• Unicast and multicast audio packet transmission
• Flexible installation: rack-mountable, desktop, or surface-mounted
• Voice sampling configurable at 8 kHz or 16 kHz with 16-bit quantization and Sub-band ADPCM encoding
• Robust black pre-coated steel chassis with forced-air cooling

Technical Specifications

Power Source: 120 V AC, 50/60 Hz
Power Consumption: 26 W (rated), 32 W (max.)

Sub-Station Interface

Number of Lines: 16
Number of Speech Link: 1
Transmission System: Analog baseband
Transmission Range: 500 m / 541.81 yd (Ø0.5 mm, AWG24), 800 m / 874.89 yd (Ø0.65 mm, AWG22), 1300 m / 1421.7 yd (Ø0.9 mm, AWG19)
Speech Method: Half-duplex conversation via voice switch

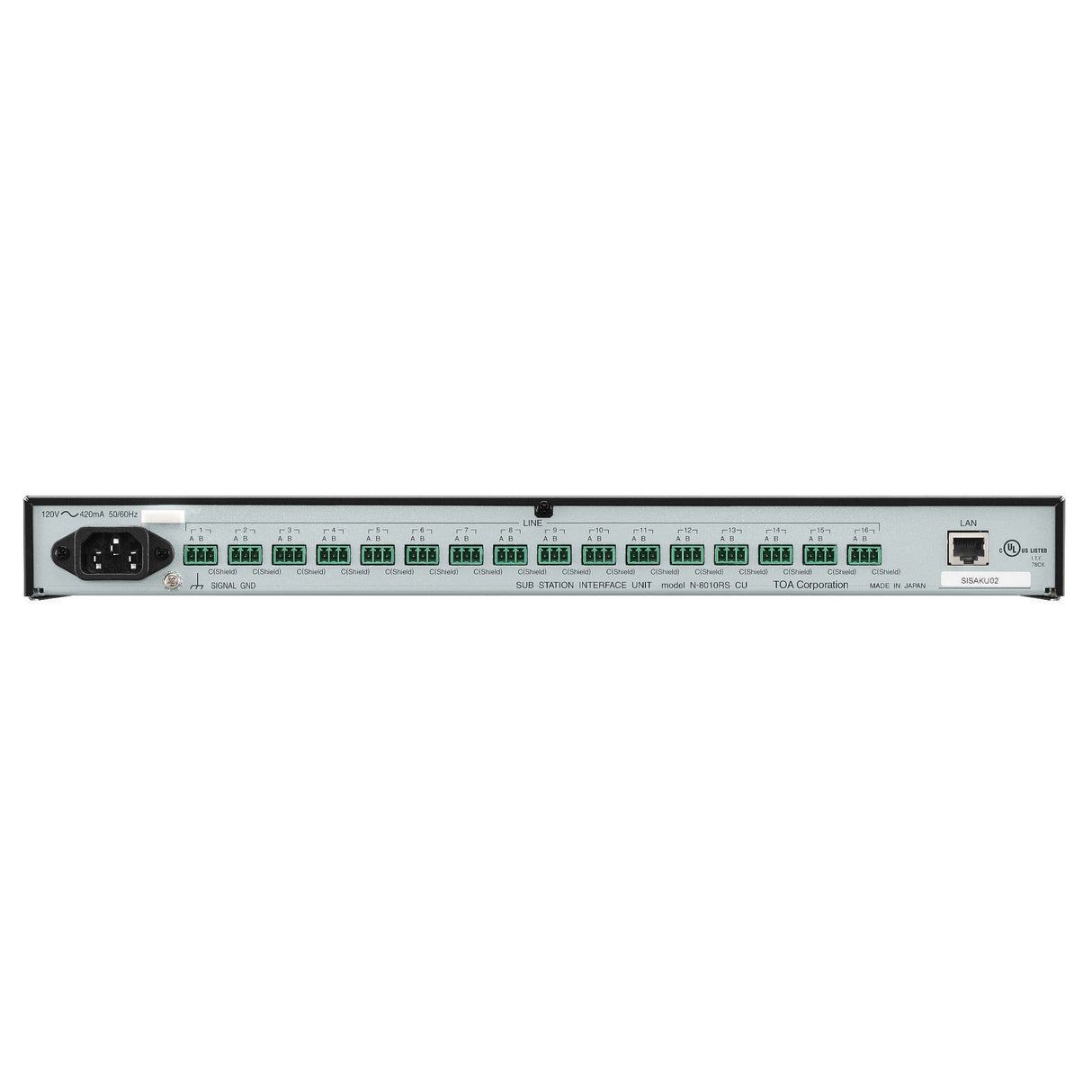

Connector: Removable terminal block
Wiring Method: Two-core shielded cable
Audio Output: Max 1 W/line (conversation), Max 0.5 W/line (paging)
Feeding Voltage / Current: 22 V DC, max 30 mA
Control Signal: Call-in button detection, privacy button detection, hook detection

Network Section

Network Interface: 10BASE-T / 100BASE-TX (Automatic Negotiation)
Network Protocols: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio Packet Transmission: Unicast, Multicast
Number of Paging Destinations: 0 (Reception Only)
Connector: RJ45
Voice Sampling Frequency: 16 kHz or 8 kHz (software-controllable)
Quantization Bit Depth: 16-bit
Voice Encoding Method: Sub-band ADPCM, Cryptosystem
Voice Packet Loss Recovery: Silence insertion
Audio Delay Time: 80 ms or 320 ms (software-controllable)

Indicators & Control

Indicators: LNK/ACT, Status, Power
Other Functions: Firmware update function, system data hold, front-panel reset switch, forced-air cooling

Installation & Physical

Installation Method: Rack, Desk, Surface mount
Operating Temperature: 32 °F to 104 °F (0 °C - 40 °C)
Operating Humidity: Up to 90% RH (non-condensing)
Finish: Black pre-coated steel plate, 30% gloss
Dimensions: 16.54" x 1.84" x 12.81" (W x H x D)
Weight: 8.38 lb (3.8 kg)

What’s Included

• TOA N‑8010RSCU Sub-Station Controller
• Power cord (2 m / 6.56 ft)
• Configuration / maintenance CD
• 16 x Removable terminal plug (3-pin)
• 4 x Plastic feet + screws
• 2 x Rack mounting brackets + 4 rack mounting screws
• 8 x Screws for mounting brackets
