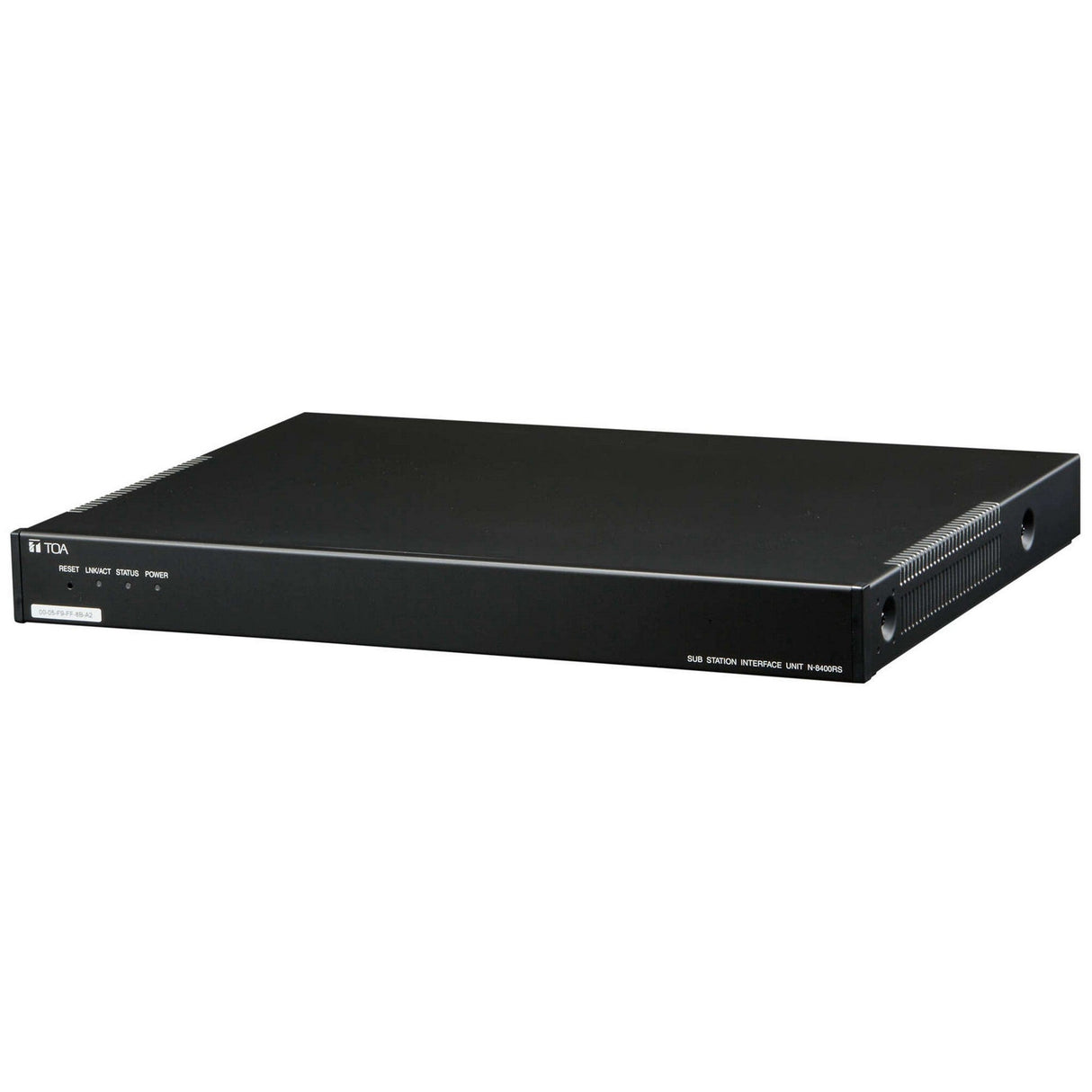

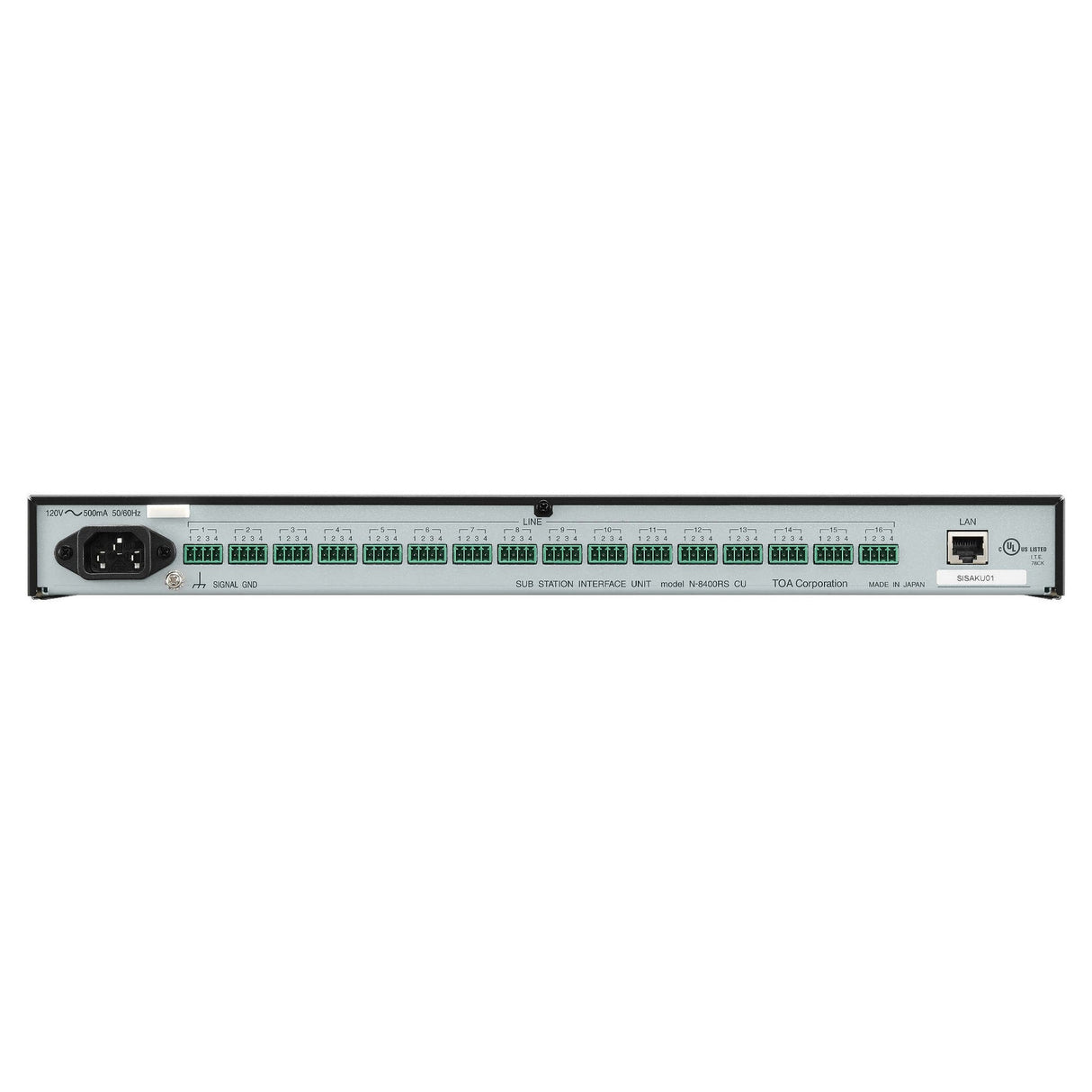

TOA Electronics N‑8400RS IP Network Sub-Station Controller

The TOA N‑8400RS is a high-performance IP network sub-station controller designed for seamless integration with TOA’s N‑8400 series intercom systems. This versatile controller supports up to 16 lines with both internal and external speech links, offering reliable half-duplex and full-duplex communication for medium to large facilities. Its robust design and advanced analog baseband transmission system provide clear voice transmission over long distances, making it ideal for offices, schools, factories, and commercial environments.

Equipped with a 10BASE-T/100BASE-TX network interface, the N‑8400RS ensures smooth IP integration and supports TCP/IP, UDP, HTTP, RTP, ARP, ICMP, and IGMP protocols. Audio packet transmission is available via unicast and multicast systems, enabling reception-only paging with high-quality voice. Voice sampling can be configured at 8 kHz or 16 kHz with 16-bit quantization, and Sub-band ADPCM encoding with optional cryptosystem ensures secure, reliable voice delivery even under packet loss conditions.

The N‑8400RS is designed for flexible installation. It can be mounted in a standard rack, placed on a desk, or surface-mounted using the included brackets. Constructed with a black pre-coated steel chassis and forced-air cooling, it is built for continuous operation. Its operational tolerances-from 32 °F to 104 °F and up to 90% relative humidity-ensure reliable performance in a variety of indoor settings.

Key Features

• Supports up to 16 lines with 1 internal and 2 external speech links
• Half-duplex hands-free and full-duplex handset communication
• Analog baseband transmission system with long-range capability
• Network-ready with 10BASE-T/100BASE-TX and standard TCP/IP protocols
• Audio packet transmission via unicast and multicast (Reception only)
• Flexible installation: rack-mountable, desktop, or surface-mounted
• Voice sampling selectable at 8 kHz or 16 kHz, 16-bit quantization, Sub-band ADPCM encoding
• Durable black pre-coated steel chassis with forced-air cooling

Technical Specifications

Power Source: 120 V AC, 50/60 Hz
Power Consumption: 35 W (rated), 50 W (max.)

Sub-Station Interface

Number of Lines: 16
Number of Speech Links: Internal: 1 / External: 2
Transmission System: Analog baseband
Transmission Range: 1000 m / 1093.61 yd (Ø0.5 mm, AWG24), 1500 m / 1640.42 yd (Ø0.65 mm, AWG22), 2000 m / 2187.23 yd (Ø0.9 mm, AWG19)
Speech Method: Half-duplex (hands-free) / Full-duplex (handset)
Connector: Removable terminal block (4 pins)
Wiring Method: 2 sets twisted pair cables
Audio Output: Max 1 W/line (conversation), Max 0.5 W/line (paging)
Feeding Voltage / Current: 24 V DC, max 30 mA
Control Signal: Call-in button detection, hook detection

Network Section

Network Interface: 10BASE-T / 100BASE-TX (Automatic Negotiation)
Network Protocols: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio Packet Transmission: Unicast, Multicast
Number of Paging Destinations: 0 (Reception only)
Connector: RJ45
Voice Sampling Frequency: 16 kHz or 8 kHz (software-controllable)
Quantization Bit Depth: 16-bit
Voice Encoding Method: Sub-band ADPCM, Cryptosystem
Voice Packet Loss Recovery: Silence insertion
Audio Delay Time: 80 ms or 320 ms (software-controllable)

Indicators & Control

Indicators: LNK/ACT, Status, Power
Other Functions: Firmware update function, system data hold function, front-panel reset switch, forced-air cooling

Installation & Physical

Installation Method: Rack, Desk, Surface mount
Operating Temperature: 32 °F to 104 °F (0 °C – 40 °C)
Operating Humidity: Up to 90% RH (non-condensing)
Finish: Black pre-coated steel plate, 30% gloss
Dimensions: 16.54" x 1.84" x 12.81" (W x H x D)
Weight: 8.82 lb (4 kg)
