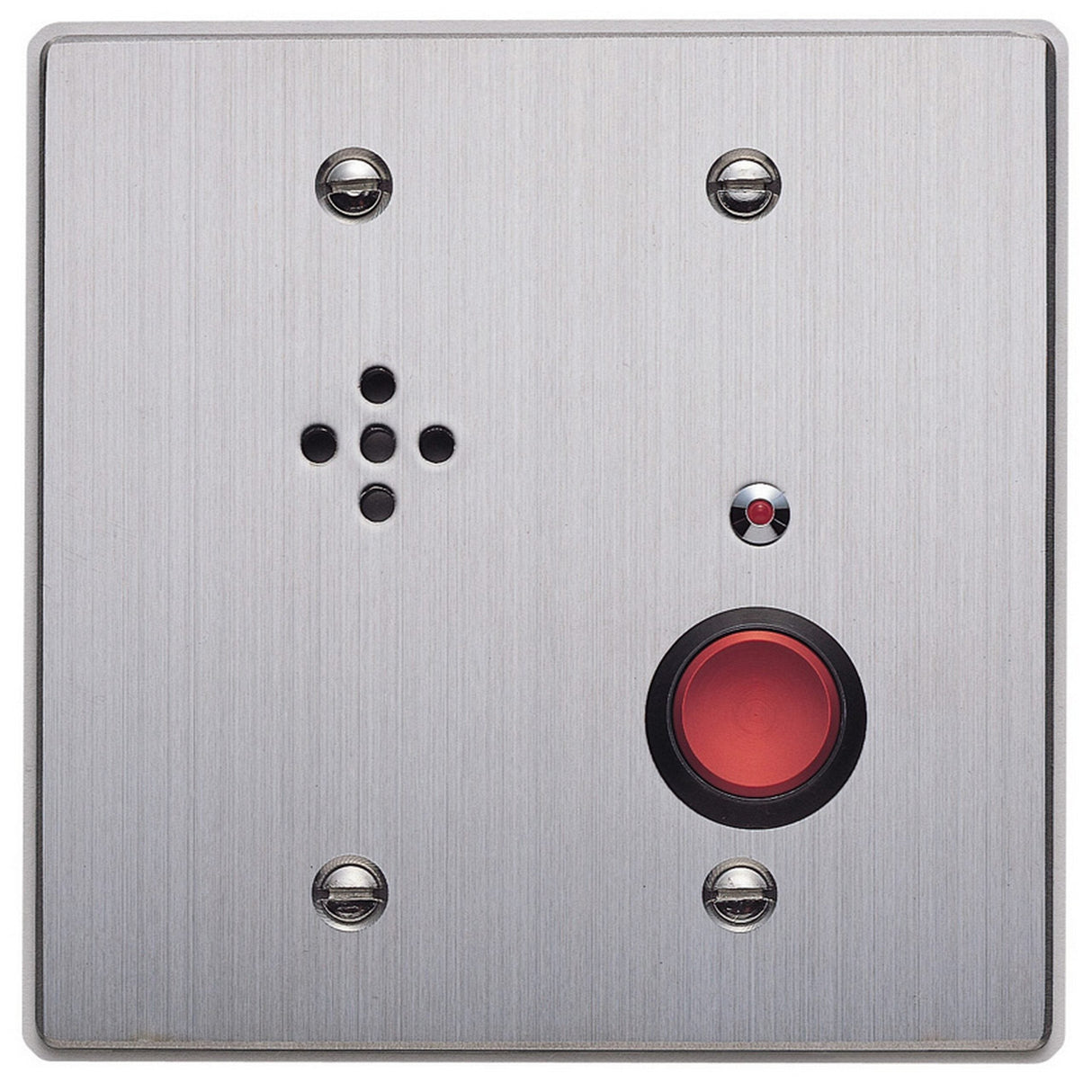

TOA Electronics RS-180 Indoor/Outdoor Sub-Station with Call Button
The RS-180 can call and converse with the registered master stations. It has an indicator lamp and control output channel, and utilizes a 2-core shielded cable.
Technical Specifications
Rated Input
1 W
Rated Impedance
625 Ω (1 W/25 V)
Internal Speaker
4 cm cone-type
Control Output
Open collector, WIt'stand voltage: 30 VDC, Control current: 30 mA
(The open collector output is kept turned on till the conversation is finished after the call button was pressed.)
Wiring
Two-core shielded cable
Transmission Range
0.5 km (546 yd)/φ0.5 mm (AWG24)
0.8 km (874 yd)/φ0.65 mm (AWG22)
1.3 km (1421 yd)/φ0.9 mm (AWG19)
Finish
Panel: Stainless steel, hairline
Call button: Metal
Printed circuit board: Weather-resistant coating
Dimensions
120 (W) x 120 (H) x 58.5 (D) mm
Weight
570 g
Accessory
Box mounting screw (No.6-32UNC x 18) ……4, Box mounting screw (M4 x 25) ……4
Applicable Box
For flush-mount: 2-gang electrical box YC-302 (option)
For surface-mount: Indoor wall-mount box YC-822 (option), Outdoor wall-mount box YC-823 (option)
