TP-Link Omada EAP650-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point

The TP-Link Omada EAP650-Outdoor is a high-performance WiFi 6 access point designed for both indoor and outdoor deployments. With dual-band speeds reaching up to 3 Gbps, it ensures seamless connectivity for high-density environments, making it ideal for campuses, hotels, and large outdoor areas. Its robust IP67-rated weatherproof enclosure guarantees reliable operation in various weather conditions, while the included mounting kits provide flexible installation options.

Equipped with advanced features like Omada Mesh technology, seamless roaming, and centralized cloud management via the Omada SDN platform, the EAP650-Outdoor offers enhanced network efficiency and simplified management. Support for both 802.3at PoE+ and Passive PoE (adapter included) allows for flexible power options, ensuring uninterrupted performance across diverse deployment scenarios.

Key Features:

• Dual-band WiFi 6 speeds up to 3 Gbps (2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps)
• Supports 250+ concurrent clients for high-density environments
• Omada Mesh technology enables wireless connectivity between access points
• Seamless roaming for uninterrupted streaming and mobility
• IP67-rated weatherproof enclosure for reliable outdoor performance
• Supports both 802.3at PoE+ and Passive PoE (adapter included)
• Centralized cloud management via Omada SDN platform
• Advanced wireless functions: MU-MIMO, OFDMA, Beamforming, Band Steering
• Multiple SSIDs (up to 16), VLAN mapping, and robust security protocols including WPA3

Technical Specifications:

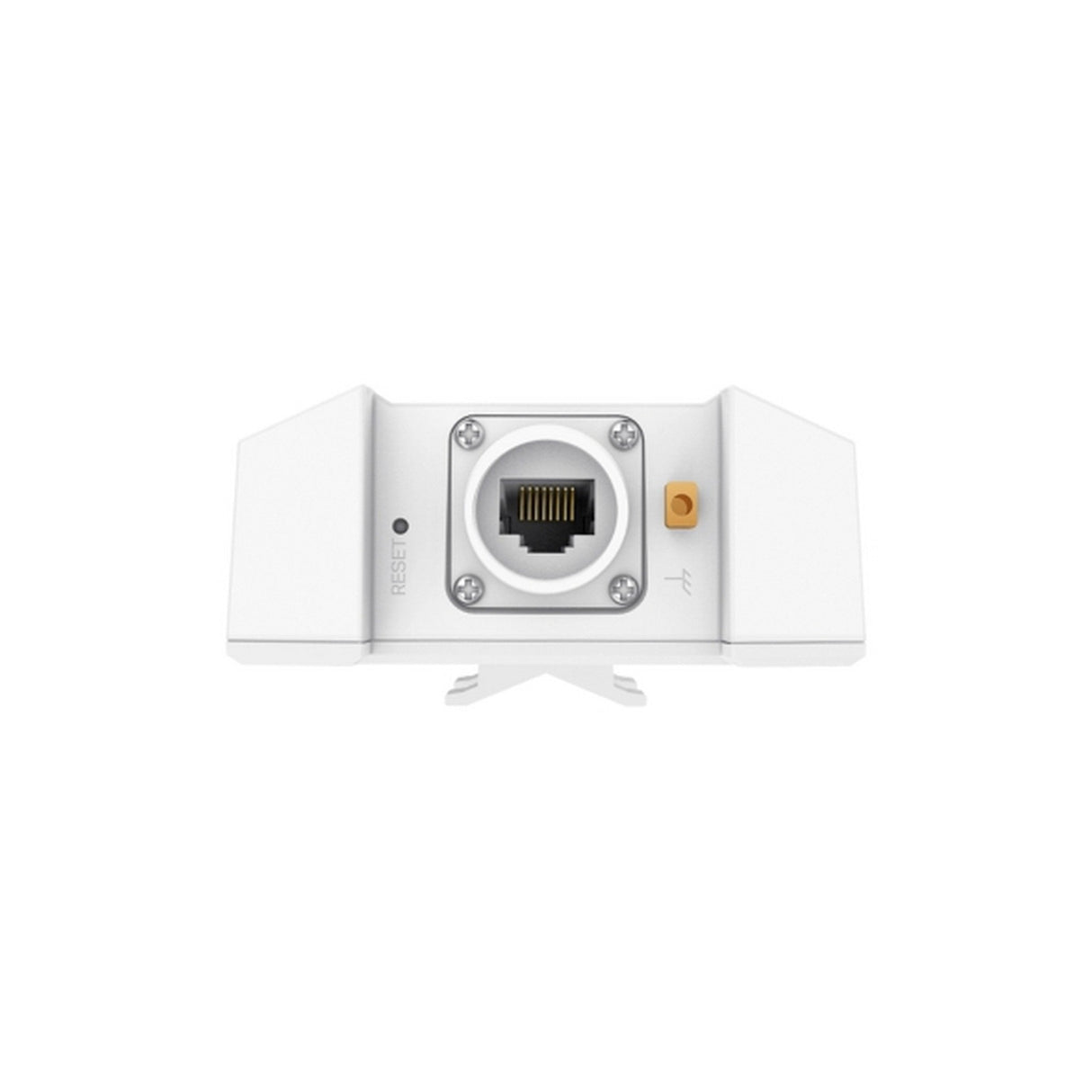

Interface: 1× Gigabit Ethernet (RJ-45) Port (Supports 802.3at PoE and Passive PoE)
Button: Reset
Power Supply: 802.3at PoE, 48V Passive PoE (PoE Adapter Included)
Power Consumption: EU: 12.5W; US: 14.7W
Dimensions (W × D × H): 280.4 × 106.5 × 56.8 mm (without antenna & mounting kit)
Antenna: 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi
Weatherproof Enclosure: IP67
Mounting: Pole/Wall Mounting (Kits included)
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz, 5 GHz
Signal Rate:

• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Transmit Power:

• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm (5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)

Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO, Omada Mesh, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Management: Omada App, Centralized Management via Omada Cloud-Based Controller, Omada Hardware Controller (OC300/OC200), Omada Software Controller, Cloud Access, Email Alerts, Management MAC Access Control, SNMP v1/v2c, System Logging (Local/Remote Syslog), SSH, Web-based Management, L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning (requires Omada Cloud-Based Controller)
Certifications: CE, FCC, RoHS
System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Linux
Environment: Operating Temperature: -30–70 ℃ (-22–158 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Package Contents:

• Access Point EAP650-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
