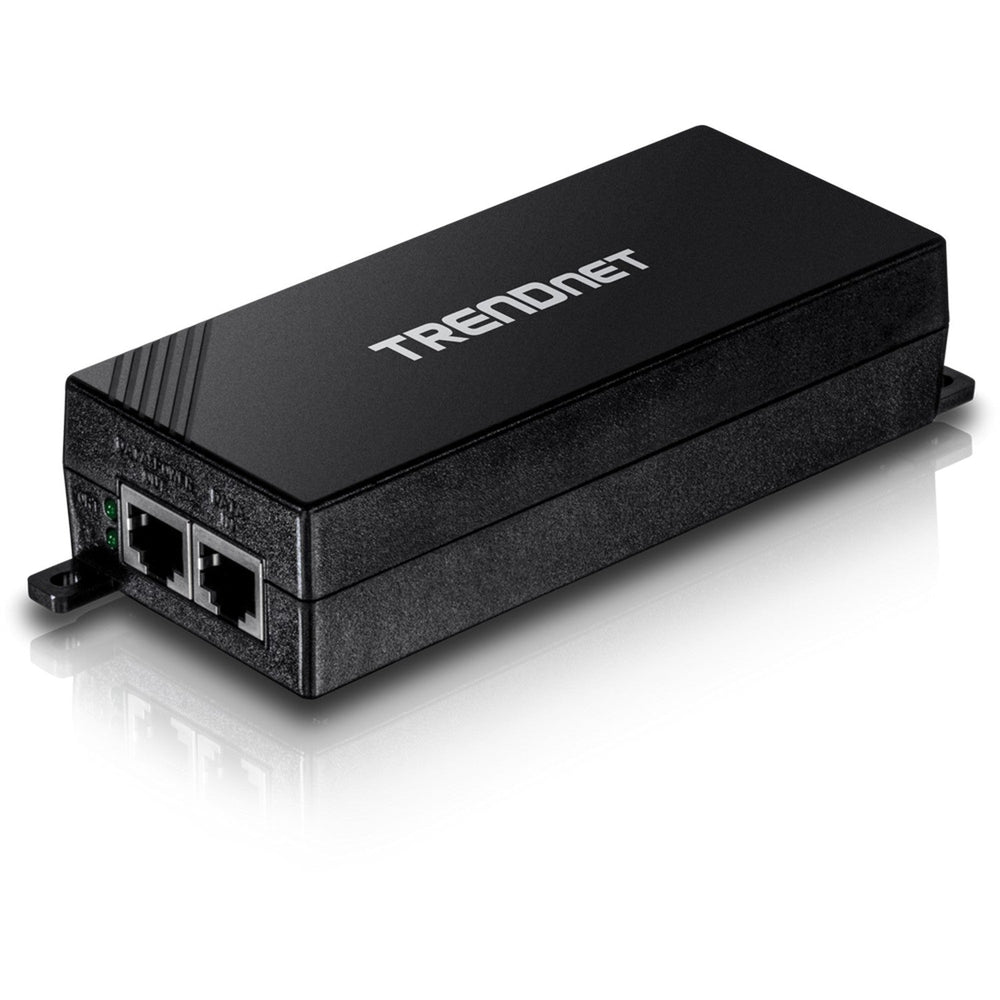

TRENDnet TPE-115GI Gigabit PoE+ Injector
TRENDnet TPE-115GI Gigabit PoE+ Injector
TRENDnet's Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit PoE+ signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE and PoE+ devices. Connect the injector to a non-PoE Gigabit switch and then run an Ethernet cable with data + power to network a PoE or PoE+ device up to 100 meters (328 ft.) away.
PoE
Supplies a PoE device with PoE (15.4W) or PoE+ (30W) power.
Installation Flexibility
Wall-mountable design accommodates most installations scenarios.
Gigabit Speeds
Full Duplex 2Gbps Ethernet speeds with this PoE+ injector.
Key Features
- Full Duplex Gigabit speeds
- Supplies PoE (15.4W) or PoE+ (30W) power
- Integrated power supply
- Network a PoE device located up to 100 meters (328 ft.) away
- Converts a non-PoE Gigabit port to a PoE+ Gigabit port
- Save on installation and equipment costs
- IEEE 802.3af and IEEE 802.3at compliant
- NDAA compliant
Technical Specifications
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Device Interface
1 x Gigabit Data in port
1 x Gigabit Data & Power out port
LED indicators
Special Features
Wall-mountable
Data Transfer Rate
Ethernet
10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet
100Mbps (half duplex), 200Mbps (full duplex)
Gigabit
2000Mbps (full duplex)
PoE Delivery
Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Power
Input: 100~240V AC, 50/60Hz, 0.6A max.
Power Consumption
Max 1.03W (No PD connected)
Operating Temperature
0 - 40 Degrees C (32 - 104 Degrees F)
Operating Humidity
Max. 90% non-condensing
Dimensions
155 x 57 x 33mm (6.1 x 2.3 x 1.3 in.)
Weight
188g (6.64 oz.)
Certifications
CE
FCC
Warranty
3 year
PACKAGE CONTENTS
TPE-115GI
Quick Installation Guide
Power cord
