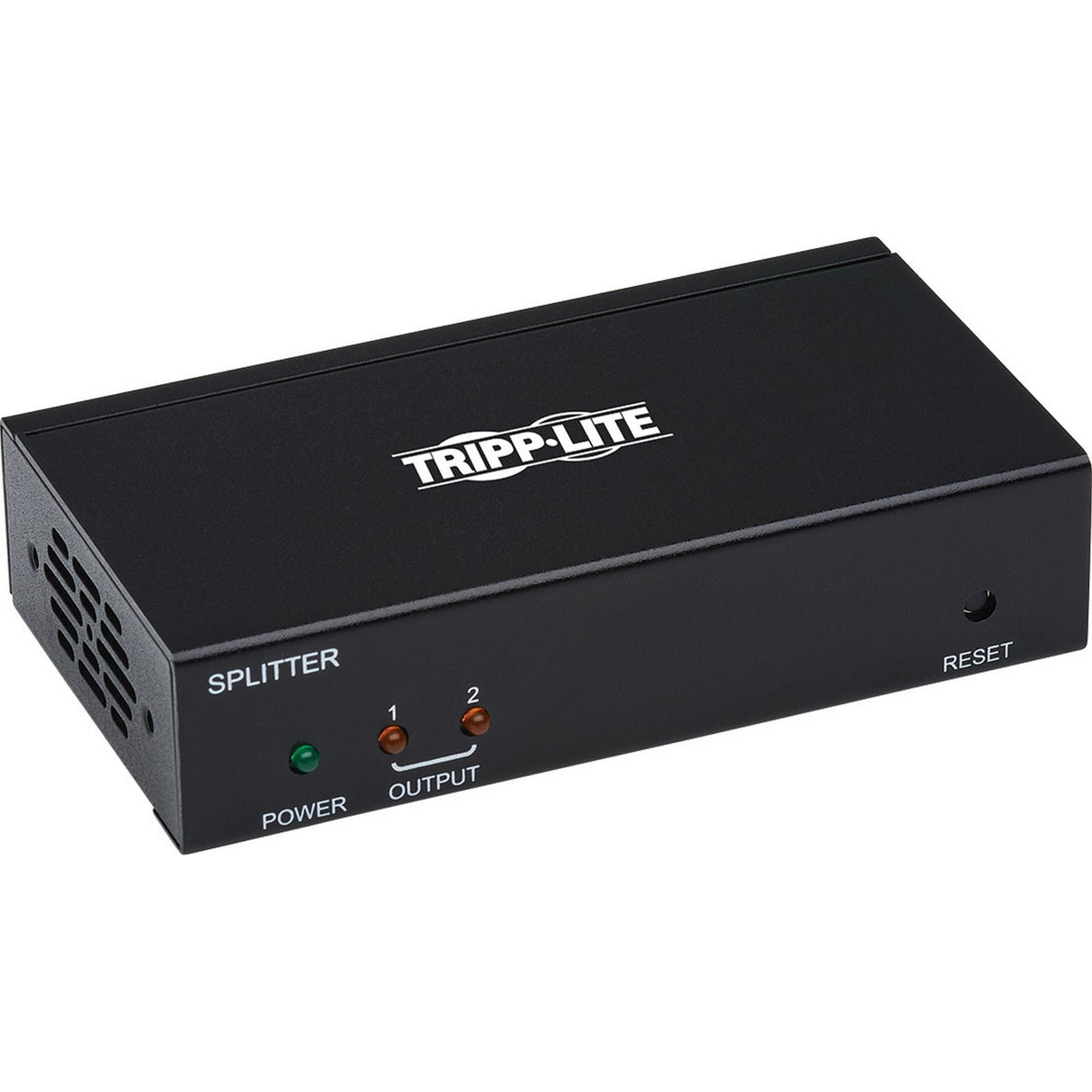

Tripp-Lite B127-002-H HDMI Over Cat6 Extender Splitter

Tripp Lite B127-002-H Transmitter/receiver kit extends a 4K HDMI audio/video signal via Cat6 cable to 2 projectors, monitors or HDTVs up to 125 ft. away. The two-port transmitter/splitter and dual receivers are recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-002-2H2 extends 4K video and stereo audio signals from an HDMI source device to two HDMI displays up to 125 feet (38.1 meters) away via user-supplied Cat6 cabling.

Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
The B127-002-2H2 supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote displays with no time-consuming manual fiddling needed. This extender kit is compatible with HDCP 2.2, EDID and HDMI 2.0 standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. The transmitter and receivers are backward compatible with non-4K equipment, so you can use this kit with most HDMI source and display devices.

Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Built-in Power over Cable (PoC) technology powers the low-profile receivers over Cat6 cable. Green and orange LEDs on the transmitter and receivers light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of bulky power bricks and gives you the freedom to place the receivers away from AC outlets.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter/splitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receivers to the displays with user-supplied HDMI cables (such as Tripp Lite’s P568- or P569-Series). Then, connect the transmitter to the receivers using Cat6 patch cable (such as Tripp Lite N202-Series cable).

TAA-Compliant for GSA Schedule Purchases
The B127-002-2H2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications
Connect a media server, Blu-ray player, cable/satellite box, Roku, gaming system or other home theater component to two large-screen 4K televisions or projectors

Upgrade the video quality of your trade show presentation or digital signage installation in a commercial or educational setting to 4K x 2K

System Requirements
Source device with HDMI output (Blu-ray player, cable box, laptop)
Display devices with HDMI input (HDTV, projector, monitor)

Key Features

• Supports UHD resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) for crystal-clear 4K video
• Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
• Transmits full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio
• High Dynamic Range (HDR) supported for richer contrast and expanded color accuracy
• Plug-and-play operation with no software required for easy, immediate installation
• 1-year limited warranty

Technical Specifications

Input
Voltage Compatibility (VAC): 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
External Power Supply Input Specs (V / Hz / A): 100-240V~50/60Hz, 0.6A
External Power Supply Output Specs (V / A): 24V/1A
External Power Supply Cord Length (ft.): 4.5
External Power Supply Plug(s): AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
External Power Supply Certifications: CCC; CE; FCC; GS; PSE; TUV; UL; cUL
User Interface, Alerts & Controls
LED Indicators: TX: x1 Green (Power), x2 (1 & 2 Output); TX: RJ45 port: x2 Green (Connected), x2 Orange (Activity) RX: x1 Green (Power); Rx RJ45 port: Green (Connected), Orange (Activity)
Physical
Color: Black
Material of Construction: Metal
Rackmountable: Yes
Receiver Unit Dimensions (hwd / in.): 1.06 x 4.53 x 2.46
Receiver Unit Weight (lbs.): 0.49
Transmitter Unit Dimensions (hwd / in.): 1.06 x 4.53 x 2.46
Transmitter Unit Weight (lbs.): 0.55
Unit Packaging Type: Box
Environmental
Operating Temperature Range: 32 to 104 F (0 to 40 C)
Storage Temperature Range: 5 to 122 F (-13 to 50 C)
Relative Humidity: 0% to 85% RH, Non-Condensing
Communications
Signal Range (ft.): 125
Connections
Ports: 2
Side A - Connector 1: HDMI (FEMALE)
Side A - Connector 2: (2) RJ45 (FEMALE)
Side B - Connector 1: HDMI (FEMALE)
Side B - Connector 2: RJ45 (FEMALE)
Features & Specifications
Max Supported Video Resolution: 4K x 2K (3840 x 2160) @60Hz
HDMI Specification: 2.0
HDCP Specification: 2.2
Audio Specification: True uncompressed 7.1 Channel, DTS-HD & Dolby-TrueHD digital audio
Driver Required: No
Recommended Category Cable: Solid Wire Cat6 Cables (Tripp Lite's N202-Series)
Max Supported Color Depth: 24-bit True Color
EDID Compatible: Yes
Power Over Cable (PoC) Support: Yes
Technology: Cat6; HDMI; HDR
Chroma Sub Sampling: 4:4:4
Special Features
HDR Support: Yes
Certifications
Certifications: Tested to CE, FCC, REACH, RoHS
Item Includes
1x Transmitter unit
2x Receiver units
1x External power supply (Input: 100-240V)
4x International plug adapters (North America, Europe, U.K. and Australia)
1x Mounting hardware
1x Owner’s manual
Warranty
1-year limited warranty
