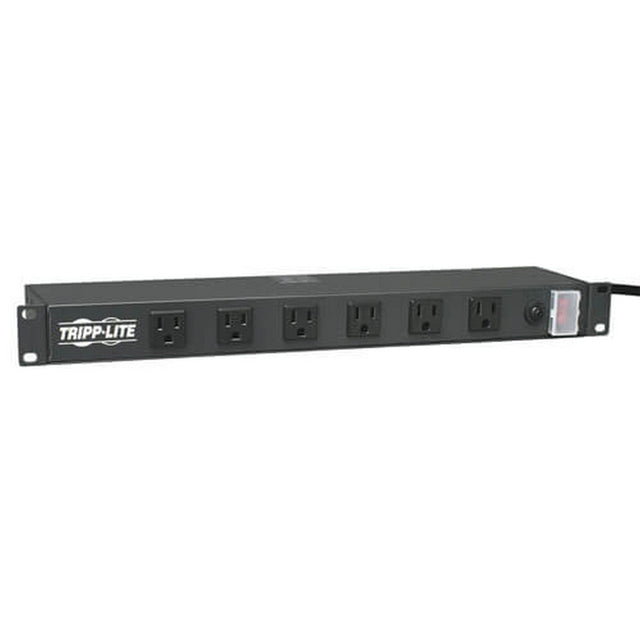

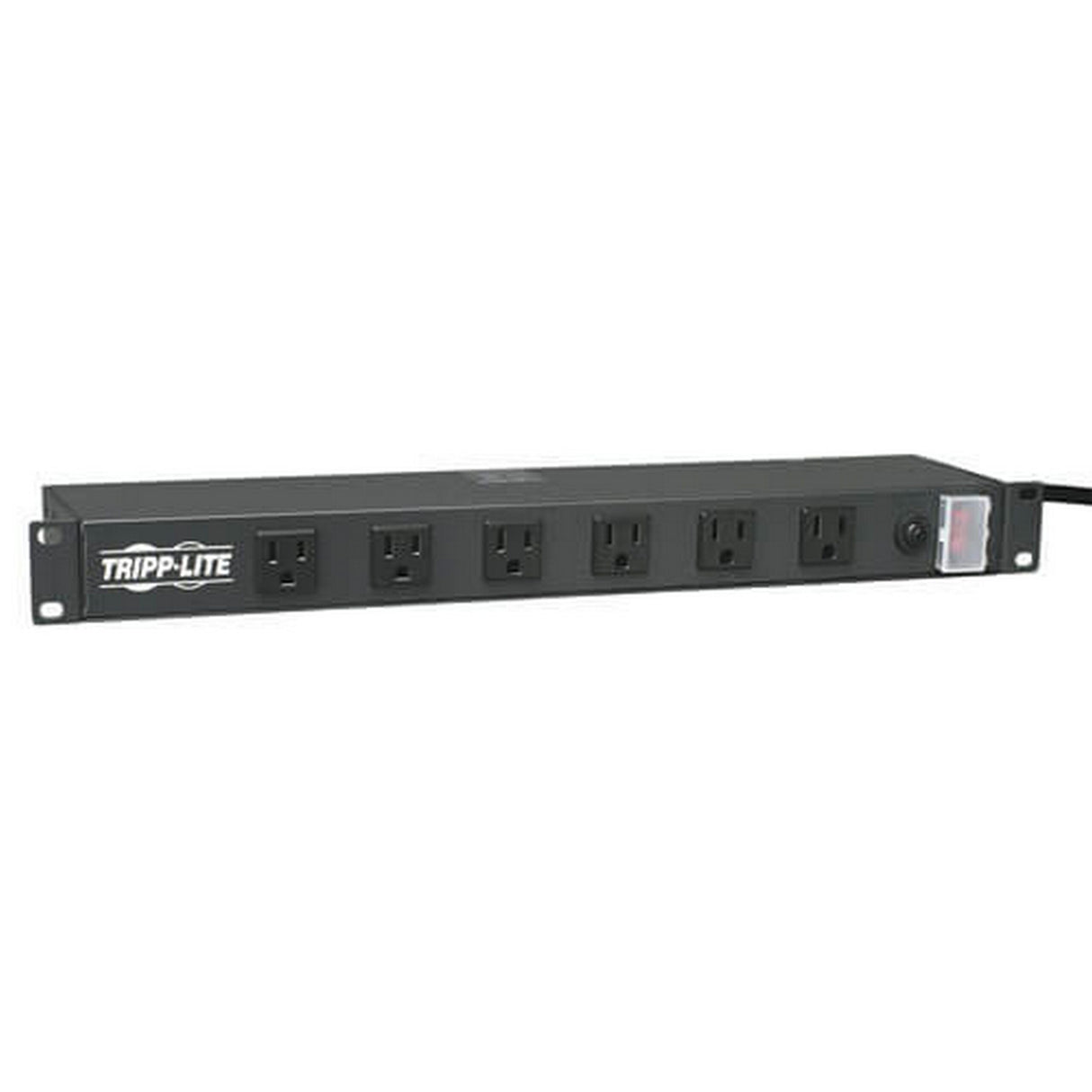

Tripp-Lite RS-1215-RA 1U Rackmount Power Strip

Tripp Lite's RS-1215-RA Power Strip offers 15A capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19-in. rack meeting EIA standards. Unfiltered electrical pass-through makes RS-1215-RA ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Features 12 NEMA5-15R outlets (6 front/6 rear) placed at a right angle (with ground pin at bottom), 15-ft. AC power cord and lighted power switch with cover that prevents risk of accidental turn-off.

PLUG/OUTLETS: Input: NEMA 5-15P
Output: 12 x NEMA 5-15R (6 front/6 rear)
ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)
FORMAT: 19-in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

Key Features

• Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
• Uses one rack space (1U) in standard 19-in. rack ("zero U" mounting possible in many racks)
• Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
• 12 x NEMA5-15R output receptacles (6 front/6 rear)
• 15-ft. AC cord with NEMA5-15P plug
• Right-angle outlet orientation with ground pin at the bottom
• Lighted power switch confirms power on/off status
• Snap-in switch guard prevents accidental turn off
• 15A electrical capacity with circuit breaker
• 120V AC, 50/60Hz electrical compatibility

Technical Specifications

Frequency Compatibility
50 / 60 Hz
Output (Watts)
1800
Output Receptacles
(12) 5-15R
Circuit Breaker (amps)
15
Transformer Accommodation
(9) Yes
Outlet Orientation
6 front-facing / 6 rear-facing, all with ground pin oriented to the bottom (when viewed in 1U rackmount configuration)
Right-Angle Outlets
Yes
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
15A 120V
Voltage Compatibility (VAC)
120
Input Plug Type
NEMA 5-15P
Input Cord Length (ft.)
15
Integrated Cord Clip
No
Switches
Red illuminated - positon switch controls power to all outlets
Locking Switch Cover
Transparent locking switch cover prevents accidental shutoff
Anti-Microbial Protected
No
Color
Black
Color (AC Line Cord)
Black
Form Factors Supported
1U rackmount, wall-mount and undercounter installation supported
Included Mounting Accessories
Rackmount flanges
Integrated Keyhole Mounting Slots
No
Material of Construction
Sheet metal
Outlets Measurement (Center to Center)
Distance between Front outlets = 51.6mm; Distance between Rear outlets = 71.1mm
Receptacle Color
Black
Shipping Dimensions (hwd / in.)
9.30 x 2.25 x 20.30
Shipping Weight (lbs.)
5.32
Unit Dimensions (hwd / in.)
1.75 x 17.5 x 4.5
Unit Weight (lbs.)
4.6
TVSS Grounding
Back panel nut-and-bolt grounding lug
UL1363 (Power Tap)
UL1363 (UR status)
Canada
cUL
Product Warranty Period (Worldwide)
Lifetime limited warranty
Package Includes
RS-1215-RA 1U Rackmount Power Strip
Instruction manual with warranty information
