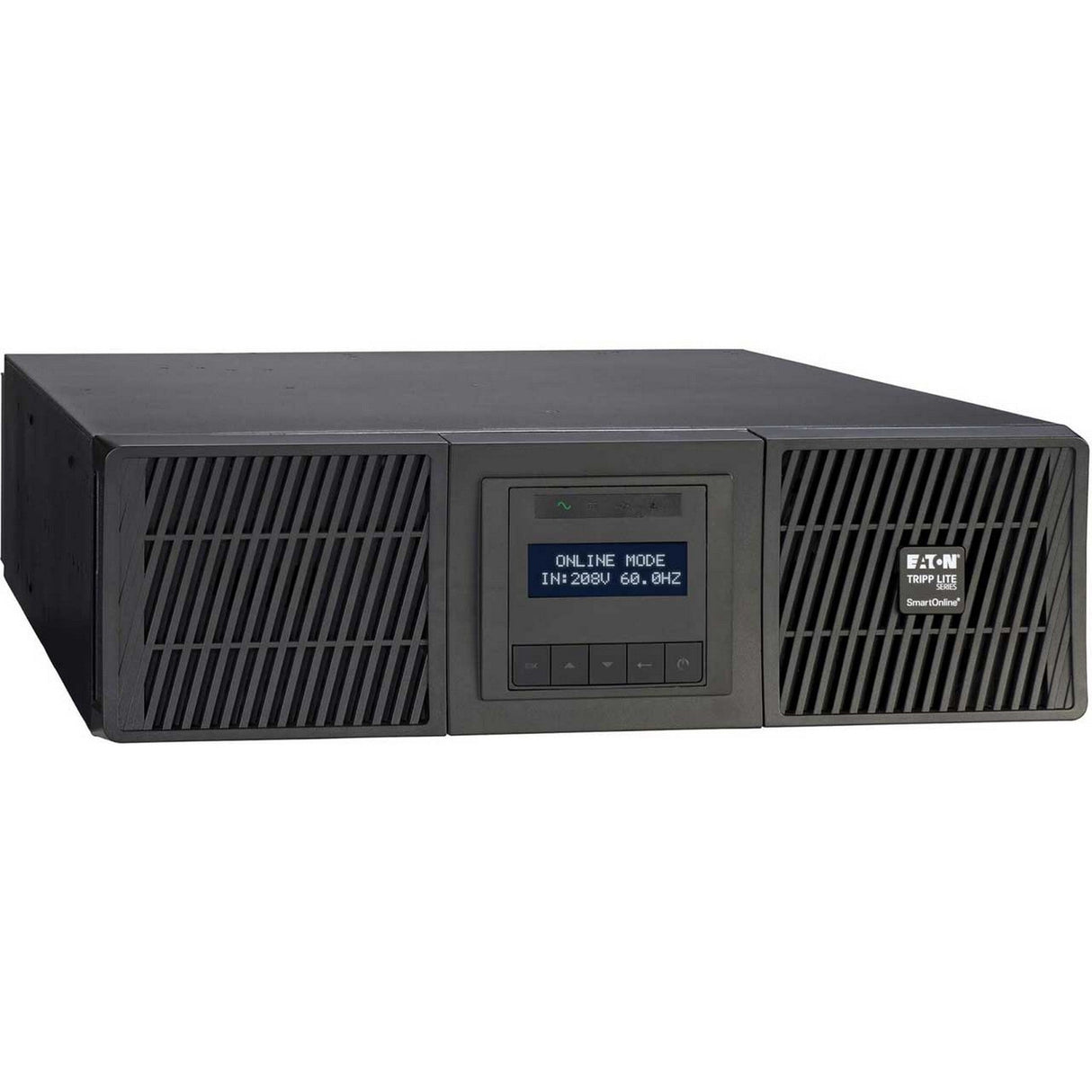

Tripp Lite SU5000RT SmartOnline 5000VA 4500W 208V Online Double-Conversion UPS

This SmartOnline rack-mount online double-conversion UPS system provides uninterrupted battery backup and AC power protection against blackouts, brownouts, surges, and line noise that can damage valuable IT equipment or destroy data. The SU5000RT is a reliable power management solution for education, commercial, financial, or healthcare networking components, including Cisco switches and servers.

The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Automatic restart after power outages reduces costly on-site visits. You can also connect up to four extended battery modules (BP180RT, sold separately) for hours of extended runtime.

The pre-installed WEBCARDLXE network interface turns the SU5000RT into a managed device on your network. It enables full remote configuration and SNMP-based UPS management, including load shedding, safe shutdowns, and automated alerts. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity, and automatically rebooting IT equipment without an on-site visit. Optional EnviroSense2 modules (E2MT, E2MTDO, and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

Two L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise.

The menu-driven LCD provides control settings and critical information to help diagnose any issues, including alarm and fault notifications. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing.

RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components.

Key Features:

• Protects equipment against blackouts, brownouts, transient surges, and line noise
• Keeps equipment running during outages to allow time for file saves and safe shutdown
• Pre-installed WEBCARDLXE network card enables full remote access and control
• Menu-driven LCD interface keeps you updated on critical load information in real-time
• Optional extended battery modules allow extended runtime to keep equipment powered
• 2-year limited warranty
• $250,000 Ultimate Lifetime Insurance

Specifications:

Input

Input Phase: Single-Phase

Rated input current (Maximum Load): 23.3A

Nominal Input Voltage(s) Supported: 200V AC; 208V AC; 220V AC; 230V AC; 240V AC

Nominal Input Voltage Description: Factory configured to 208V

UPS Input Connection Type: Hardwire; L6-30P

Input Circuit Breakers: 20A

UPS Input Cord Length (ft.): 10

Recommended Electrical Service: 30A

Plug Type: L6-30P 10ft.

Total Harmonic Distortion: < 2% THDV on linear load; < 5% THDV on non-linear load

Input Cord Length (ft.): 10

Output

Output Capacity (VA): 5000

Output Capacity (kVA): 5

Output Capacity (Watts): 4500

Output Capacity (kW): 4.5

Power Factor: 0.9

Crest Factor: 3:1

Nominal Voltage Details: 200V, 208V, 220V, 230V, 240V

Frequency Compatibility: 50 / 60 Hz

Frequency Compatibility Details: 50 or 60Hz, autosensing or configurable as a frequency converter

Output Voltage Regulation (Line Mode): +/- 1%

Output Voltage Regulation (Battery Mode): +/- 1%

Output Circuit Breakers: 20A breaker protects L6-20R outlets

Output AC Waveform (AC Mode): Pure Sine wave

Output AC Waveform (Battery Mode): Pure Sine wave

Nominal Output Voltage(s) Supported: 200V; 208V; 220V; 230V; 240V; 250V

Output Receptacles: (2) L6-20R; (2) L6-30R; Hardwire

Battery

Battery Type: Valve Regulated Lead Acid (VRLA)

Runtime Full Load (min.): 3 min. (4500W)

Runtime Half Load (min.): 11 min. (2250W)

Expandable Runtime: Yes

Expandable Runtime Description: Add up to 4 extended battery modules (EBM). Part number BP180RT

External Battery Pack Compatibility: BP180RT

DC System Voltage (VDC): 180

Battery Access: Battery access door

Internal UPS Replacement Battery Cartridge: 744-A1974

Battery Replacement Description: Hot-swappable, user replaceable batteries. UPS requires 1 Replacement Battery Cartridge.

Voltage Regulation

Voltage Regulation Description: Online, double-conversion power conditioning

Surge / Noise Suppression

UPS AC Suppression Response Time: 0 ms

EMI / RFI AC Noise Suppression: Yes

Physical

Primary Form Factor: Rackmount; Tower

Rack Height: 3RU

Cooling Method: Fan

Included Mounting Accessory Description: Includes 4 post rackmount and tower pedestal accessories

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount; Tower

Installation Form Factors Supported with Optional Accessories: 2 post rackmount (RK2PC)

Minimum Required Rack Depth (inches): 31

Minimum Required Rack Depth with External Battery Pack (in.): 31

Shipping Dimensions (hwd / in.): 12.25 x 38.00 x 28.50

Shipping Weight (lbs.): 125.20

UPS Housing Material: Metal

UPS Power Module Weight (lbs.): 106

Unit Dimensions (hwd / in.): 5.10 x 17.30 x 27.03

Unit Weight (lbs.): 106.00

Environmental

Operating Temperature Range: 32° to 104°F

Relative Humidity: 0-95% non-condensing

AC Mode Efficiency Rating (100% Load): 93

AC Economy Mode Efficiency Rating (100% Load): 98

Online Mode Heat Dissipation (BTU/Hr) @ Full Load: 1150

Battery Mode Heat Dissipation (BTU/Hr) @ Full Load: 1560

Operating Elevation: 0-3280 ft. (0-1000 m)

Audible Noise: <45 dB at 1 meter

Line / Battery Transfer

Transfer Time: No transfer time (0 ms.) in online, double-conversion mode

Low Voltage Transfer to Battery Power (Setpoint): 176V

High Voltage Transfer to Battery Power (Setpoint): 276V

Item Includes:

• 1x 5000VA 4500W 208V Double-Conversion UPS
• 1x WEBCARDLXE network card
• 1x USB cable
• 1x RS-232 cable
• 1x Tower support stands
• 1x Cable gland for hardwire connection
• 1x Rack-mounting hardware
• 1x Quick start guide

Warranty:

2-year limited
