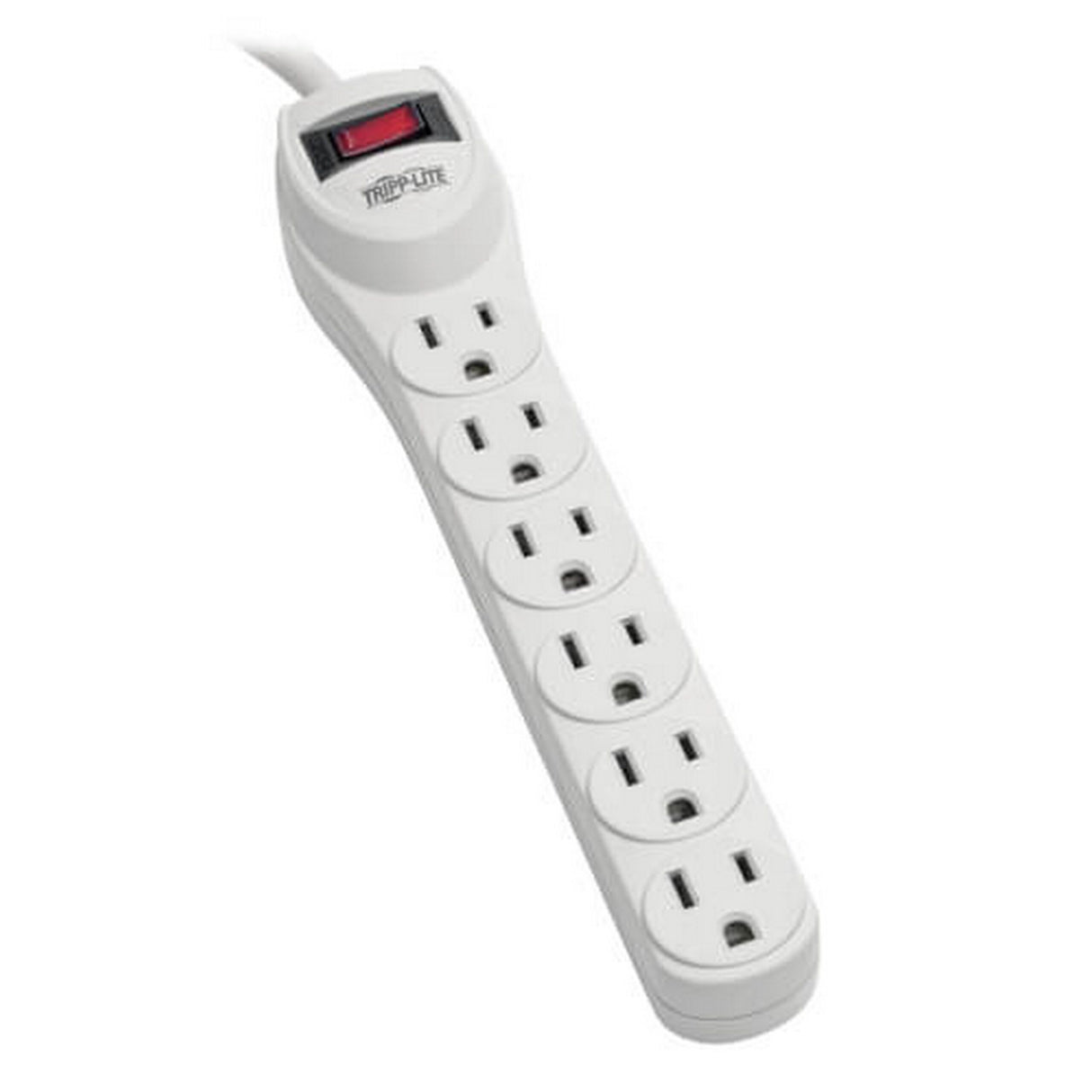

Tripp-Lite TLP602 6-Outlet Home Computer Surge Protector
Tripp-Lite TLP602 6-Outlet Home Computer Surge Protector
Tripp-Lite TLP602 6-Outlet Home Computer Surge Protector
Tripp Lite's TLP602 offers economical AC surge suppression for workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. TLP602 offers 6 total outlets, 2 foot cord. AC suppression rated at 180 joules shields equipment from surges and line noise. Attractive gray housing with keyhole mounting tabs and 1 designated transformer plug outlet offers convenient protection of desktop computer equipment and accessories.
PLUG/OUTLETS: Input: NEMA5-15P/Output: 6 NEMA5-15R/2-ft. AC line cord
ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA5-15R wall receptacle)
FORMAT: Corded multi-outlet strip
SUPPRESSION: AC: 150V RMS Clamping/180 joules
Key Features
- 6 outlets
- 2-ft. cord
- Surge suppression rating: 180 joules
- 15 amp resettable circuit breaker
- Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
- Can accommodate 1 large transformer plug without covering remaining outlets, 4 total transformers
- Keyhole support for wall mounting
- Lighted power switch
- $2,500 Ultimate Lifetime Insurance (USA and Canada Only)
Technical Specifications
Frequency Compatibility
50 / 60 Hz
Output (Watts)
1800
Output Receptacles
(6) 5-15R
Circuit Breaker (amps)
15
Transformer Accommodation
(2) Yes
Outlet Orientation
Single row
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
120V (110-125V)
Voltage Compatibility (VAC)
120
Maximum Surge Amps
12000
Input Plug Type
NEMA 5-15P
Input Cord Length (ft.)
2
Right-Angle Plug
No
Integrated Cord Clip
No
Diagnostic LED(s)
No
Switches
Combination AC circuit breaker and 2 position on/off power switch
AC Suppression Joule Rating
180
AC Suppression Response Time
< 1 ns
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping Voltage (RMS)
150
UL1449 Let Through Rating
500V
Automatic Shut-Off
No
Telephone/DSL Protection
No
Cable (Coax) Protection
No
Network (Ethernet) Protection
No
Anti-Microbial Protected
No
Color
Light Gray
Color (AC Line Cord)
Light Gray
Housing Color
Light Gray
Integrated Keyhole Mounting Slots
Yes
Keyhole Slot Mounting Measurement (Center to Center)
Distance between slots = 101mm; Distance between slot height = 28mm
Material of Construction
Plastic
Outlets Measurement (Center to Center)
28.5mm
Receptacle Color
Light gray
Shipping Dimensions (hwd / in.)
2.00 x 4.00 x 11.20
Shipping Weight (lbs.)
0.70
Unit Dimensions (hwd / in.)
1.18 x 1.69 x 9.44
Unit Weight (lbs.)
.57
Rotatable Outlets
No
UL1449 3rd Edition (AC Suppression)
UL1449 3RD EDITION
UL1363 (Power Tap)
UL1363
Canada
cUL
Approvals
Exceeds IEEE 587 category A&B specifications
Product Warranty Period (Worldwide)
Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
$2,500 Ultimate Lifetime Insurance
Package Includes
TLP602 Surge Suppressor
Instruction manual and warranty information
