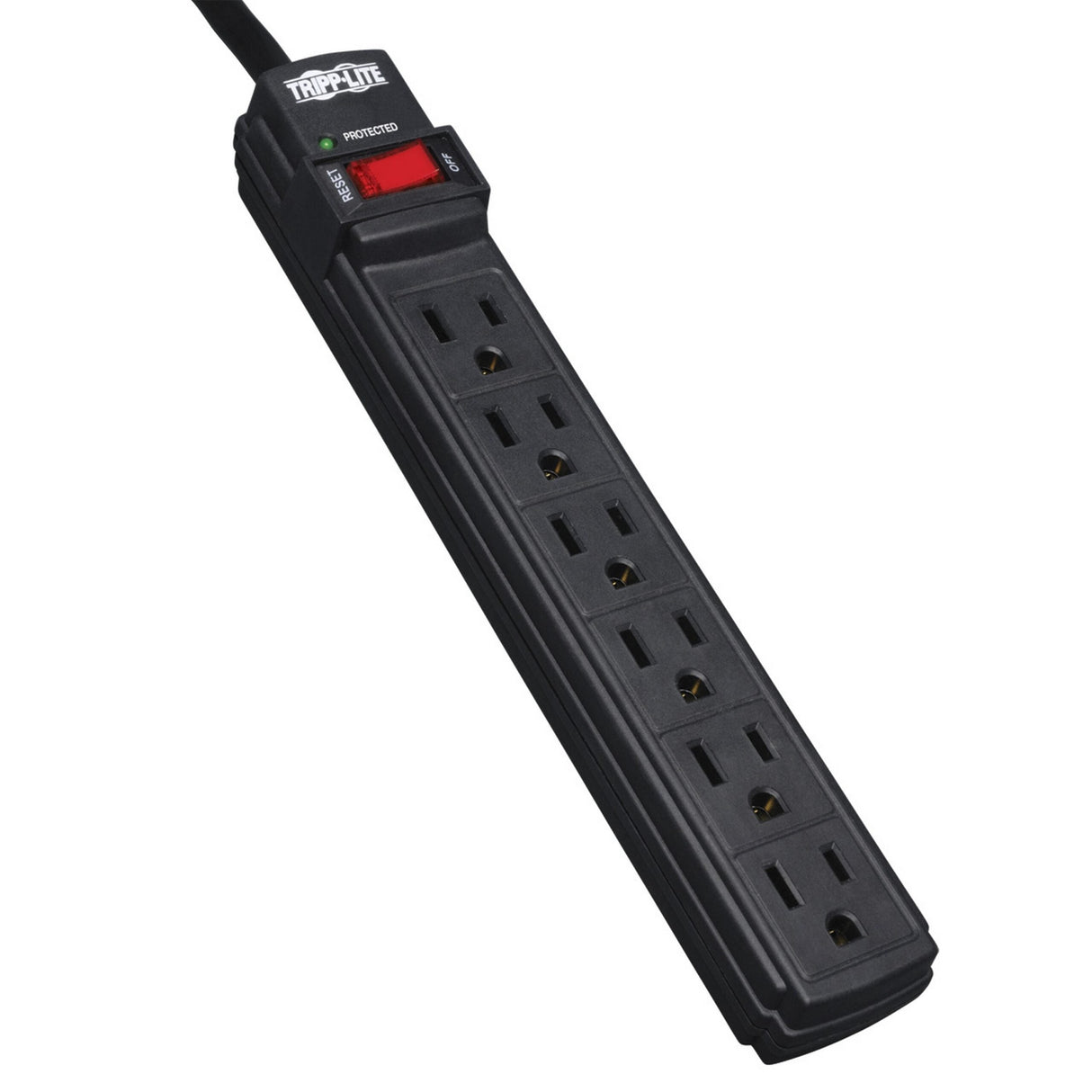

Tripp Lite TLP6B 6-Outlet Surge Protector Strip

Perfect for your home or office workstation, the Tripp Lite TLP6B Protect It! 6-Outlet Surge Protector features a surge protection rating of 360 joules to defend your sensitive electronic components against surges and spikes. In fact, Tripp Lite will repair or replace any connected equipment damaged by surges, including direct lightning strikes, up to $10,000 for life (valid in the U.S., Canada and Puerto Rico only).

Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the TLP6B protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

Your devices plug into six NEMA 5-15R outlets, one of which is placed at the end to accept a bulky transformer without blocking adjacent outlets. An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The lighted on/off switch provides one-touch control over connected equipment. A diagnostic LED confirms your connected equipment is protected.

The six-foot AC power cord with NEMA 5-15P plug reaches nearby outlets to fit easily into your workstation or home theater setup. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the black plastic housing.

Key Features

• Protects your computer, printer, scanner, router, modem and other small home electronics against surges and spikes
• Recommended for any desktop, network or home electronics application requiring AC line protection
• Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
• Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
• Exceeds IEEE 587 Category A and B surge suppression specifications
• Lighted on/off switch provides one-touch control over connected equipment
• Integrated 15A circuit breaker shuts down outlets in case of power overload
• Diagnostic LED confirms protection status at a glance
• Conforms to current UL 1449 3rd Edition safety standards
• 6 NEMA 5-15R AC outlets accept most computers and peripherals
• Special end outlet designed for bulky transformers without blocking other outlets

Technical Specifications

Input
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
120V (110-125V)
Input Cord Gauge Type
14 gauge; SJT
Voltage Compatibility (VAC)
120
Maximum Surge Amps
24000
Input Plug Type
NEMA 5-15P
Input Cord Length (ft.)
6
Right-Angle Plug
No
Integrated Cord Clip
No
Output
Frequency Compatibility
60 Hz
Output (Watts)
1800
Output Receptacles
(6) 5-15R
Circuit Breaker (amps)
15
Overload Protection
15A resettable illuminated combo switch / circuit breaker
Transformer Accommodation
(2) Yes
Outlet Orientation
Single row of 6 outlets
Right-Angle Outlets
No
User Interface, Alerts & Controls
Diagnostic LED(s)
Yes
Switches
Combination AC circuit breaker and 2 position red illuminated on/off power switch
Diagnostic LED Details
Built-in LED confirms suppressor “protection present” (green) status
Surge / Noise Suppression
AC Suppression Joule Rating
360
AC Suppression Response Time
< 1 ns
Protection Modes
L-N
Clamping Voltage (RMS)
150
UL1449 Let Through Rating
500v
EMI / RFI Filtering
Up to 20 dB
Automatic Shut-Off
Yes
Dataline Surge Suppression
Telephone/DSL Protection
No
Cable (Coax) Protection
No
Network (Ethernet) Protection
No
Physical
Anti-Microbial Protective Coating
No
Color
Black
Color (AC Line Cord)
Black
Housing Color
Black
Integrated Keyhole Mounting Slots
Yes
Material of Construction
Plastic
Receptacle Color
Black
Shipping Dimensions (hwd / in.)
9.21 x 3.77 x 1.10
Shipping Weight (lbs.)
0.97
Unit Dimensions (hwd / in.)
11.25 x 3.77 x 1.10
Unit Weight (lbs.)
.81
Special Features
Rotatable Outlets
No
Standards & Compliance
Canada
cUL
Additional International Approvals
RoHS
Approvals
Exceeds IEEE 587 category A&B specifications
UL1449 3rd Edition (AC Suppression)
UL1449 3rd Edition
UL1363 (Power Tap)
UL1363
Item Includes
1x TLP6B Protect It! 6-Outlet Surge Protector, Black Housing
1x Owner's manual
