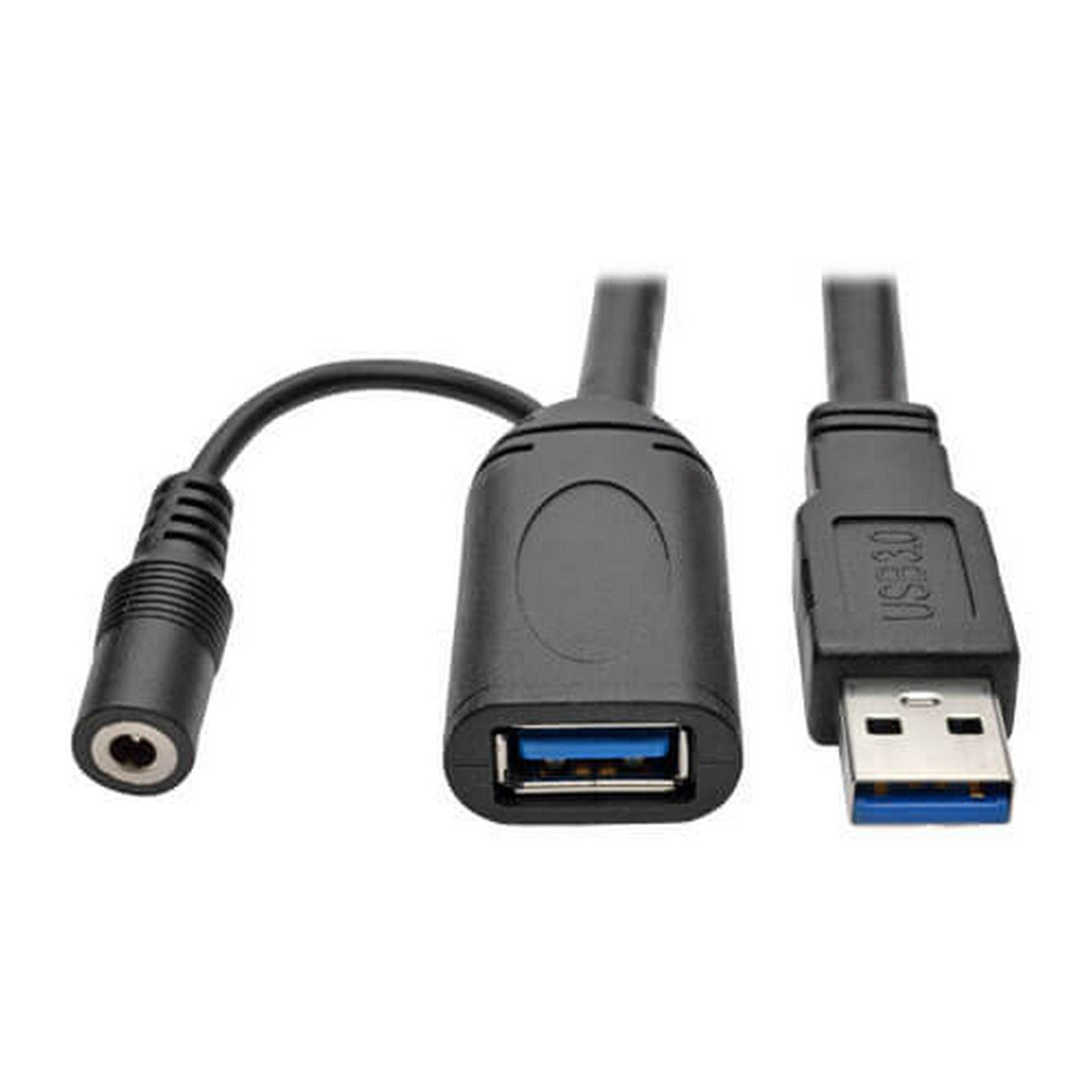

Tripp-Lite U330-20M USB 3.0 SuperSpeed Active Extension Repeater Cable

Tripp Lite’s U330-20M USB 3.0 SuperSpeed Active Extension Repeater Cable (M/F) increases the length of a device cable up to 65 feet with no worry of signal loss. By daisy-chaining two cables while using external power, you can extend the length between USB devices up to 130 feet.

Connect the male plug to a USB port on your computer or hub and the female end to a USB device cable. A built-in bus-powered signal booster ensures peak performance. Backward compatible with previous USB generations, this cable supports data transfer rates up to 5 Gbps.

The U330-20M works with all computers, devices and cables with USB-A connectors. It provides up to 360mA of power to a connected device (a 5V, 2A external power supply is required for power applications stronger than 360mA).

Premium foil and braid shielding delivers top-of-the-line signal quality and protection from EMI/RFI interference. Nickel-plated USB connectors with gold-plated copper contacts ensure excellent conductivity. Integral strain relief ensures the cable and connectors last a long time.

Key Features

• Increases length of device cable up to 65 ft.
• Daisy-chain 2 cables for maximum distance up to 130 ft. (while using an external 5V, 2A power supply)
• Supports data transfer rates up to 5 Gbps
• Built-in bus-powered signal booster for peak performance
• Provides up to 360mA of power to connected device
• Backward compatible with previous USB generations
• Premium foil and braid shielding protects against EMI/RFI
• Nickel-plated connectors with gold-plated copper contacts ensure excellent conductivity
• Works with all computers, devices and cables with USB-A connectors
• 5V, 2A external power supply required for power applications stronger than 360mA

Technical Specifications

Cable Length (ft.)
65.6
Color
Black
Shipping Dimensions (hwd / in.)
0.50 x 14.00 x 17.00
Shipping Weight (lbs.)
3.00
Side A - Connector 1
USB 3.0 A (MALE)
Side B - Connector 1
USB 3.0 A (FEMALE)
Technology
USB 3.0 (SuperSpeed); USB
Certifications
RoHS Compliant
Product Warranty Period (Worldwide)
3-year limited warranty
System Requirements
USB 3.0 computer port and USB 3.0 device required to meet USB 3.0 speeds
5V, 2A power supply with 3.5 x 1.35 mm DC jack required for power applications above 360mA. Output plug requires positive tip and negative sleeve.
Package Includes
U330-20M USB 3.0 SuperSpeed Active Extension Repeater Cable (M/F), 20 m
