Turing Video SS-KG1-B2A-3Y SiteShield Axis 2-Camera Base System
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Condition: New
Description

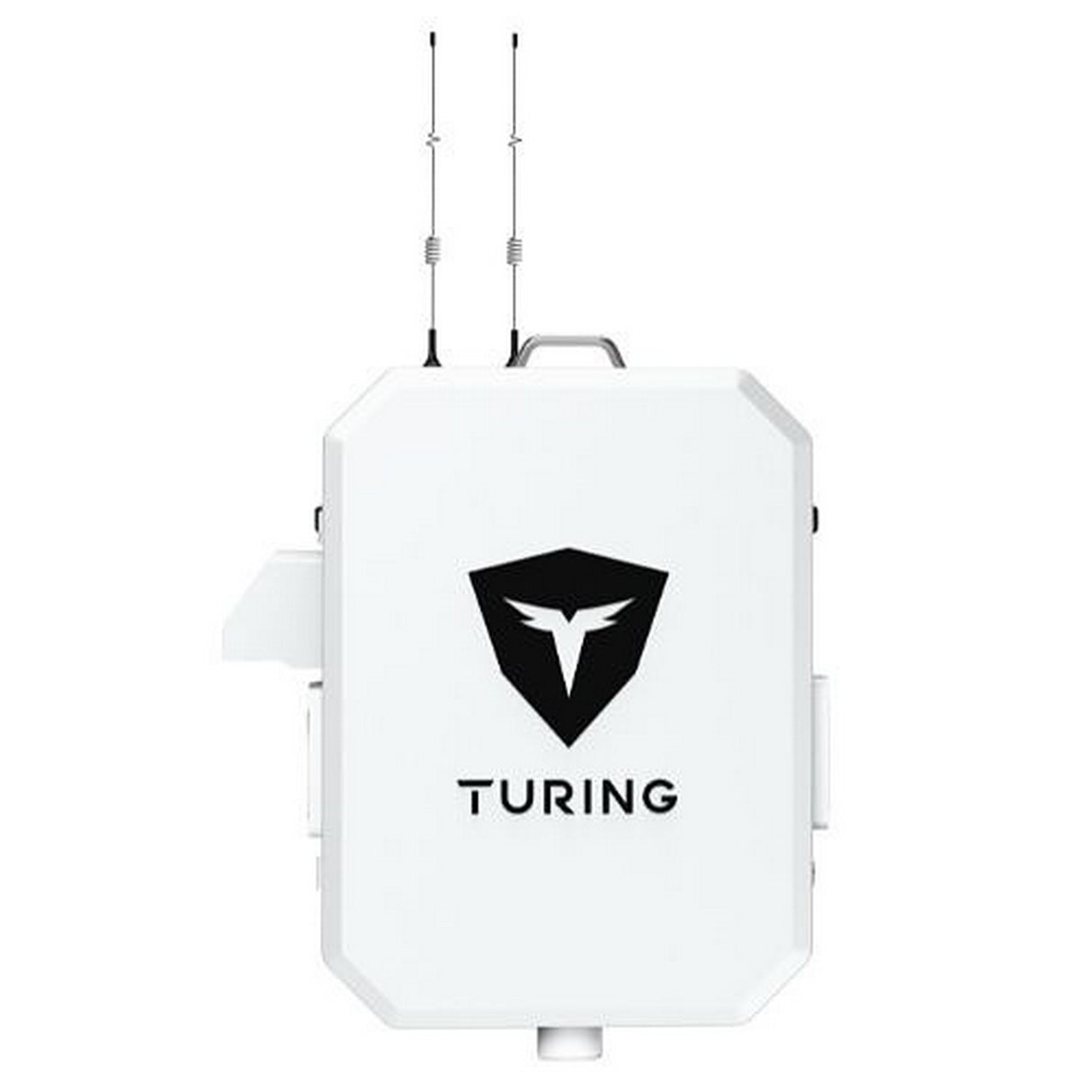

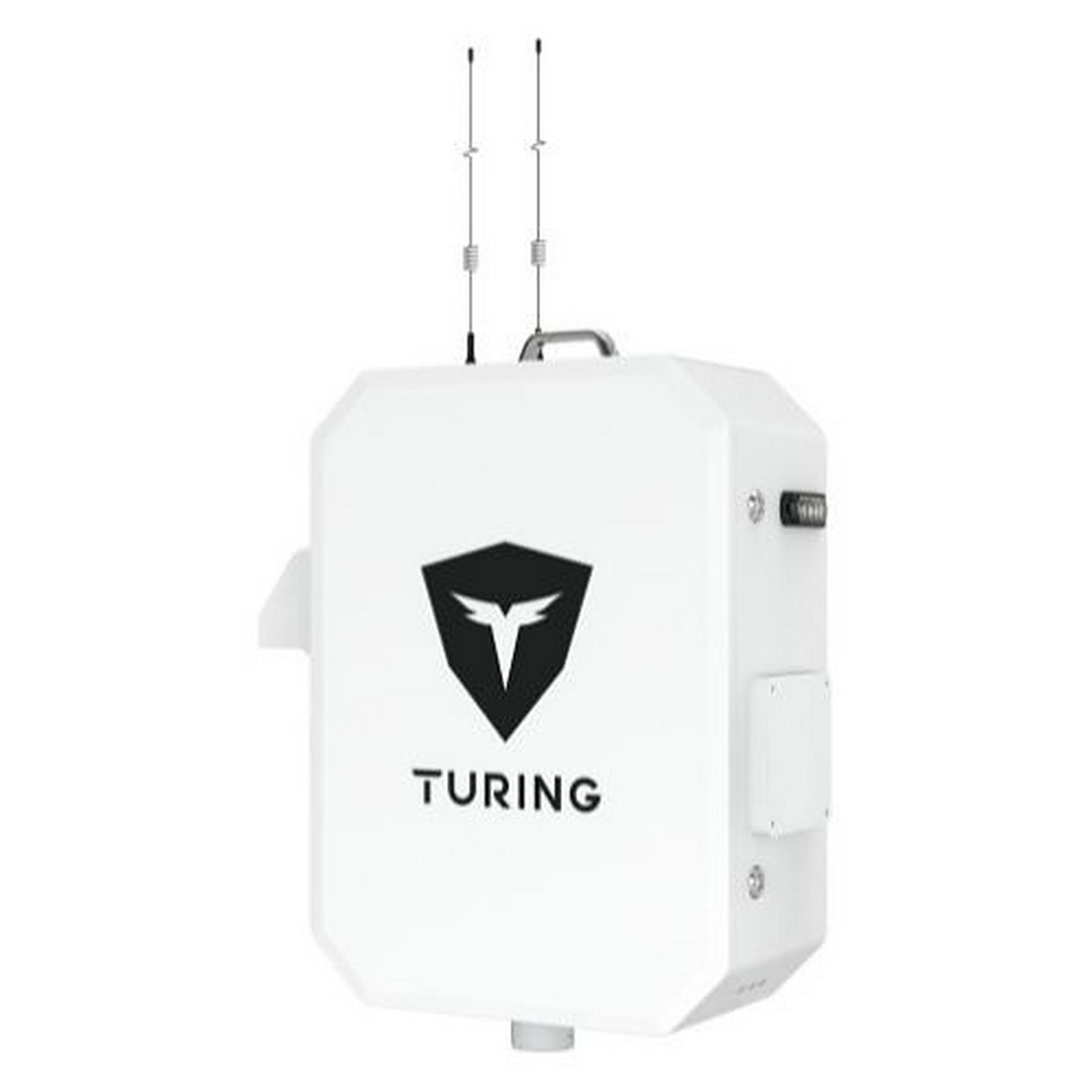

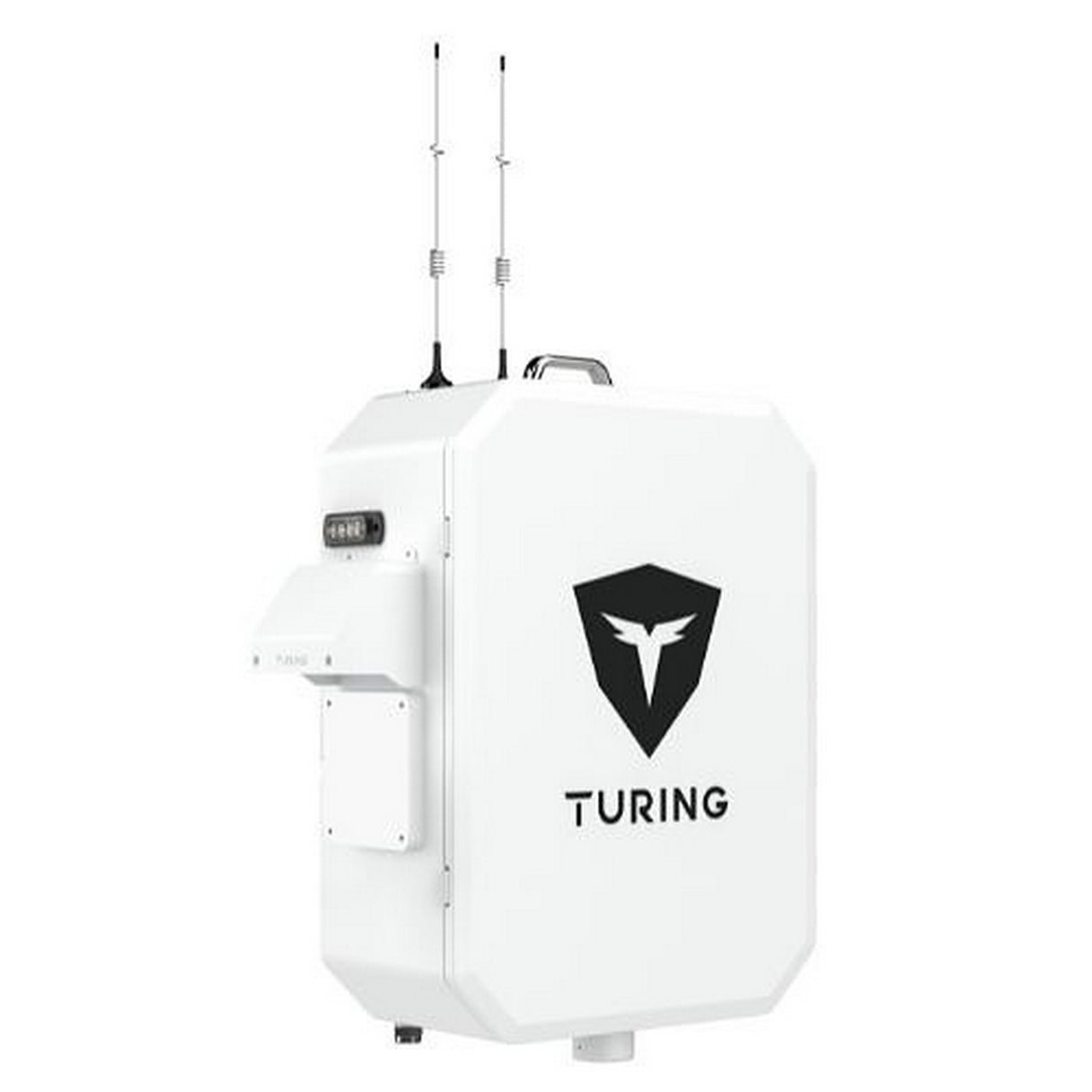

Turing Video SS-KG1-B2A-3Y SiteShield Axis 2-Camera Base System
The Turing Video SS-KG1-B2A-3Y SiteShield Axis 2-Camera Base System provides a preassembled outdoor infrastructure package for deploying up to two compatible Axis cameras with Turing Vision cloud AI. The system combines a NEMA 3R enclosure, 4G cellular connectivity, PoE distribution, environmental controls, mounting hardware, and three-year camera licensing.
This configuration is designed for construction sites, parking areas, remote facilities, utilities, and other locations where conventional network infrastructure may be unavailable. Installers can select compatible Axis cameras separately while using the included cellular router and PoE switch as the network foundation. Two three-year TV-ACAI3Y licenses activate Turing's Axis-to-cloud AI platform for the supported camera channels.
The SS-KG1-B2A-3Y integrates its router, PoE hardware, thermostat-controlled heater and fan, and strobe functionality into an outdoor enclosure to reduce field assembly. Turing identifies this configuration as a SiteShield Axis base supporting up to two channels, with physical cameras sold separately. Cloud-enabled management and the included Axis licenses support centralized surveillance workflows without requiring cameras to be bundled with the base.
Key Features
- Two-Camera Axis Base: Supports a SiteShield deployment with up to two compatible Axis camera channels.
- Three-Year Axis Licensing: Includes two TV-ACAI3Y licenses for Turing Vision cloud AI integration.
- 4G Cellular Router: Provides network connectivity for remote sites without conventional wired internet service.
- PoE Connectivity: Integrated PoE switching supplies network connectivity for compatible IP surveillance equipment.
- NEMA 3R Enclosure: Houses the system electronics in an enclosure intended for outdoor installations.
- Environmental Controls: Built-in thermostat-controlled heating and ventilation support outdoor deployment.
- Camera Mounting Hardware: Includes side and bottom Axis camera mounting adapters for configurable installations.
Technical Specifications
- Brand: Turing Video
- Model: SS-KG1-B2A-3Y
- Product Family: SiteShield
- System Type: Axis 2-camera outdoor base system
- Maximum Camera Channels: 2
- Physical Cameras Included: No
- Enclosure Rating: NEMA 3R
- Cellular Connectivity: 4G
- Router Model: RUT956A00A00
- Network Switch: PoE switch
- PoE Switch Model: IPS31064P
- Environmental Controls: Thermostat-controlled heater and fan
- Camera License: 2 x TV-ACAI3Y
- License Term: 3 years
- License Platform: Turing Vision Axis-to-Cloud with AI
- SiteShield Management License: SHLD-MGMT-2S-3Y
- Cloud Capabilities: Cloud enabled and cloud managed
- Cloud Storage Eligible: Yes
What's In the Box
- SiteShield NEMA 3R enclosure system with thermostat-controlled heater, fan, and strobe functionality
- 4G router, model RUT956A00A00
- PoE switch, model IPS31064P
- 2 x TP-SDC
- 2 x TA-AXSIDEBR side-mount adapters for Axis cameras
- 1 x TA-AXBOTMBR bottom-mount adapter for Axis cameras
- 2 x TV-ACAI3Y three-year Axis cloud AI licenses
- SHLD-MGMT-2S-3Y three-year SiteShield management license
