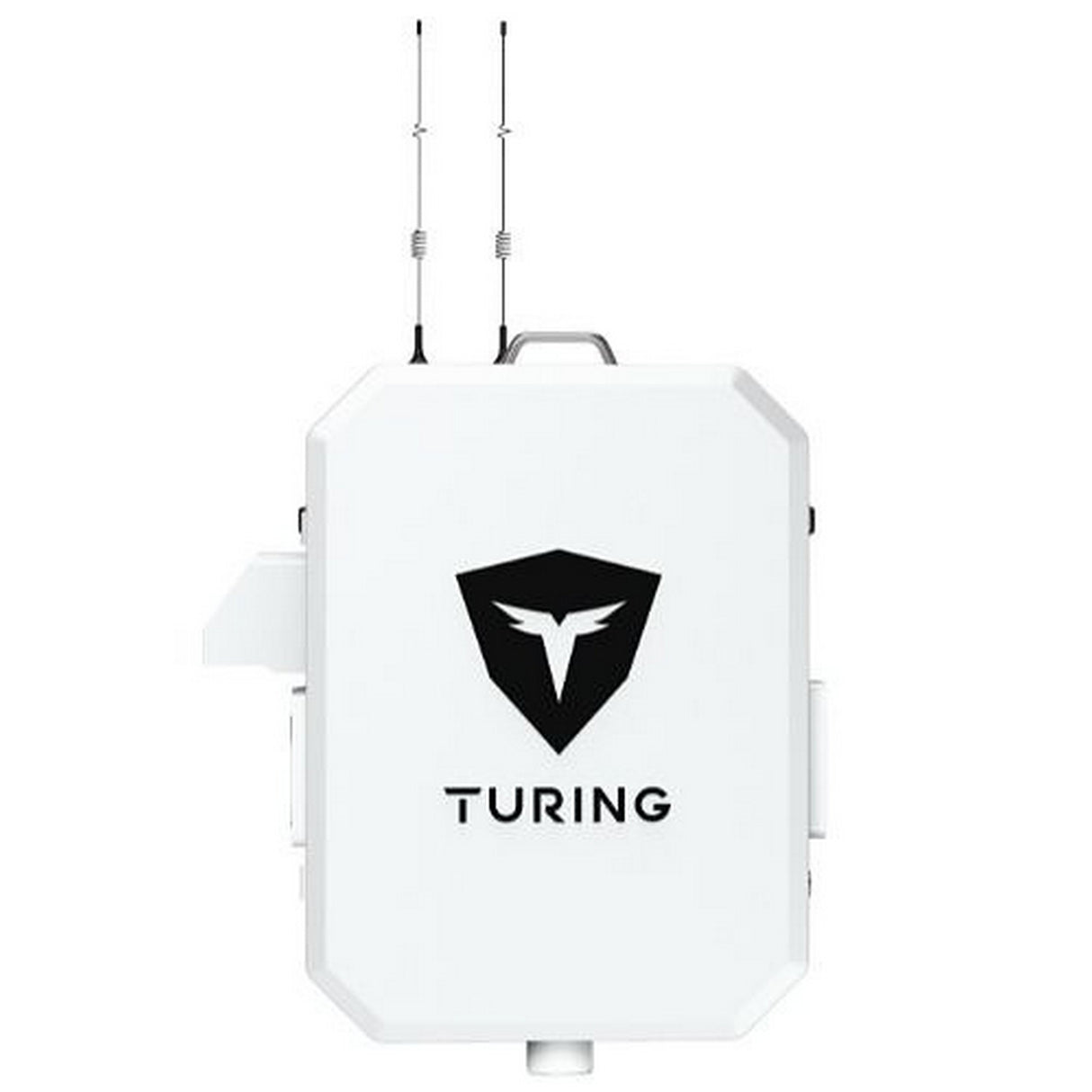

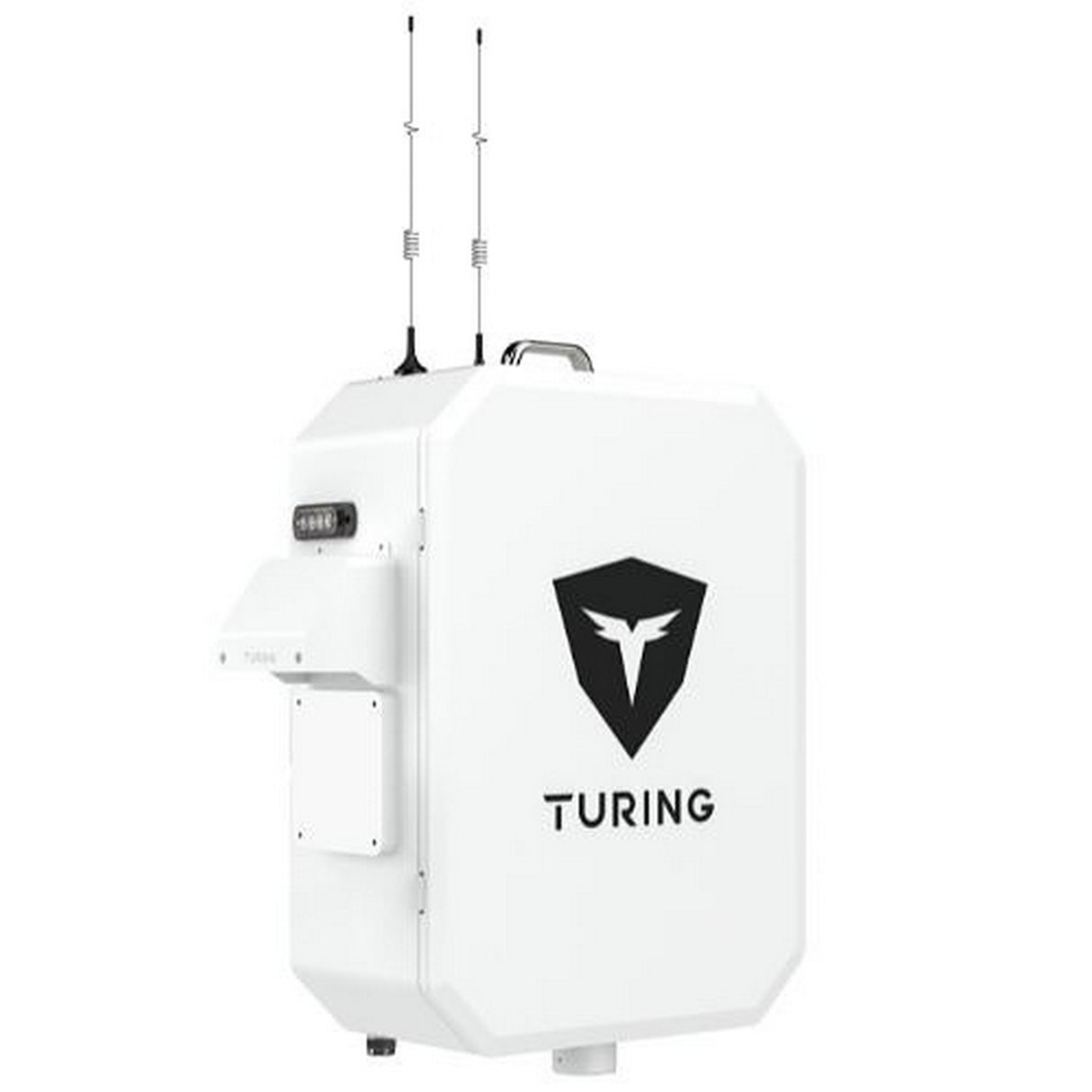

Turing Video SS-KG1-B2S-5G SiteShield 5G Surveillance Base System

Turing Video SS-KG1-B2S-5G SiteShield 5G Surveillance Base System

The Turing Video SS-KG1-B2S-5G SiteShield 5G Surveillance Base System provides an outdoor-ready foundation for a two-camera remote security deployment. It combines a NEMA 3R enclosure, 4-channel NVR with 2TB storage, 5G cellular router, thermostatic heating and cooling, strobe signaling, and three-year Core AI licensing for two cameras.

This preassembled surveillance base is suited to construction sites, parking areas, utilities, remote facilities, temporary security deployments, and locations without convenient wired network infrastructure. Its cellular connection supports remote outdoor video surveillance while the integrated recorder handles local storage. Physical cameras are not included, allowing installers to select appropriate compatible cameras for each site's coverage requirements.

The enclosure operates from -22°F to 140°F and carries an IP55 rating for outdoor installations. Its 5G router supports AT&T, Verizon, and T-Mobile connectivity, while integrated heater and fan controls help maintain the internal operating environment. The system is NDAA compliant and includes Core AI licensing, remote power control, Virtual Guard dashboard functionality, and system warranty coverage.

Key Features

• 5G Cellular Connectivity: Supports remote surveillance deployments where a conventional wired network connection is unavailable or impractical.
• 4-Channel NVR: Provides local recording with an integrated 2TB hard drive for connected surveillance cameras.
• Outdoor Enclosure: NEMA 3R construction and an IP55 rating protect installed electronics in exposed security applications.
• Environmental Control: Integrated thermostat-controlled heating and cooling help maintain reliable operation across demanding temperatures.
• Two-Camera Licensing: Includes three-year Core AI licenses for two cameras while allowing cameras to be selected separately.
• Remote Management: SiteShield functionality includes remote power control and access to the Virtual Guard dashboard.
• Integrated Deterrence: A built-in strobe provides a visible signaling and deterrence component within the surveillance installation.

Technical Specifications

• Brand: Turing Video
• Model: SS-KG1-B2S-5G
• Product Family: SiteShield
• System Type: Standard 2-camera surveillance base system
• Physical Cameras Included: No
• Recorder: 4-channel NVR
• Recorder Storage: 2TB HDD
• Cellular Router: 5G LTE router with antenna
• Supported Cellular Networks: AT&T, Verizon, T-Mobile
• Cellular Antenna Interface: 2 x standard SMA female interfaces
• Enclosure: NEMA 3R
• Ingress Protection Rating: IP55
• Power Consumption: Approximately 64W without cameras
• Heater Capacity: 150W
• Heater Activation Temperature: 59°F
• Fan Activation Temperature: 86°F
• Fan MTBF: 10 years
• Operating Temperature: -22°F to 140°F
• Operating Humidity: Up to 90% RH, non-condensing
• Dimensions (H x W x D): 23.8" x 19.1" x 10.4"
• Weight: 40 lbs without cameras
• Camera Licensing: 2 x 3-year Core AI licenses
• SiteShield Functions: Remote power control and Virtual Guard dashboard
• Cloud Storage Eligibility: Yes
• Compliance: NDAA compliant

What's In the Box

• Turing Video SS-KG1-B2S-5G SiteShield enclosure system with thermostat-controlled heater, fan, and strobe
• 4-channel NVR with 2TB HDD
• 5G LTE router with antenna
• 2 x TP-SDLPZ adapter plates
• 2 x 3-year Core AI camera licenses
