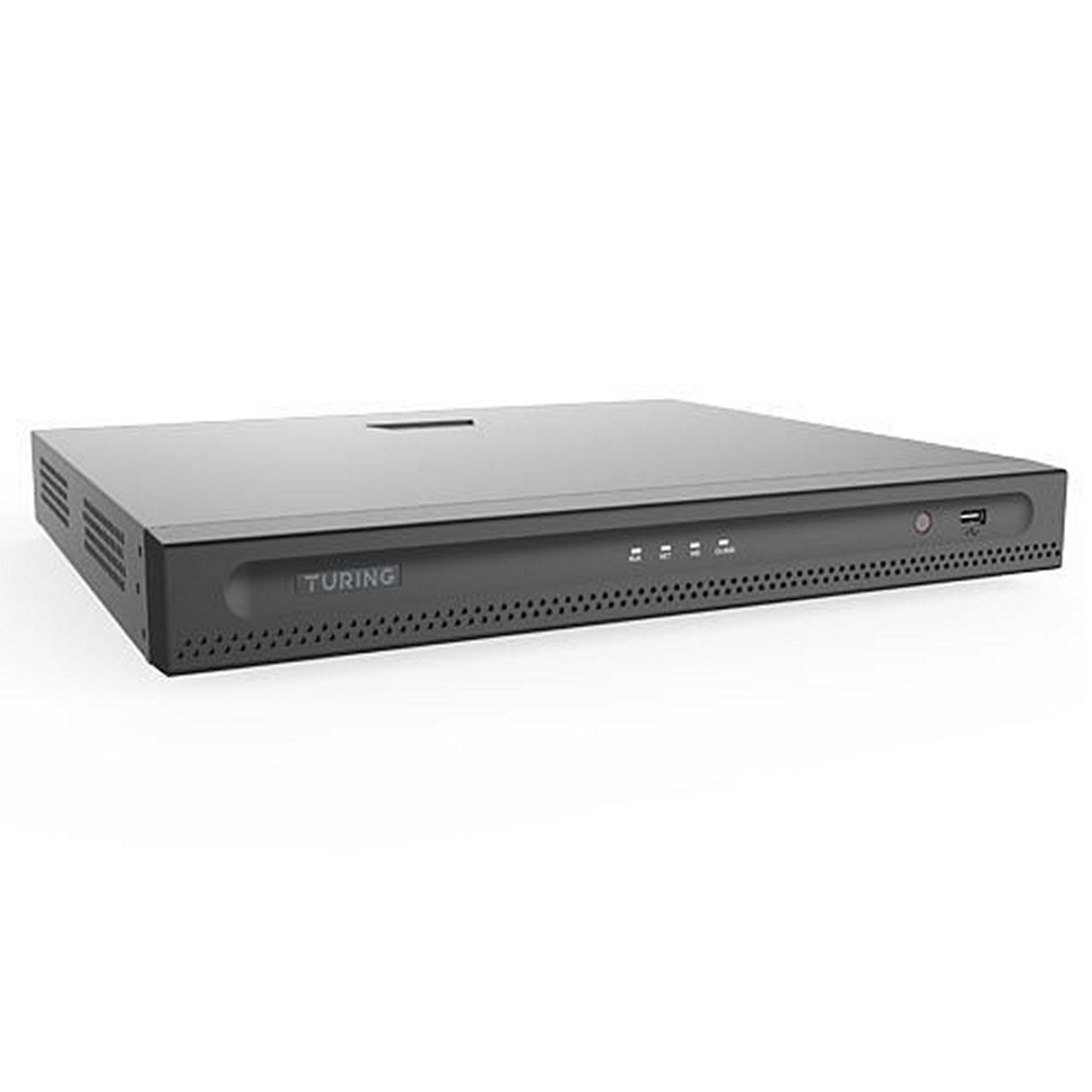

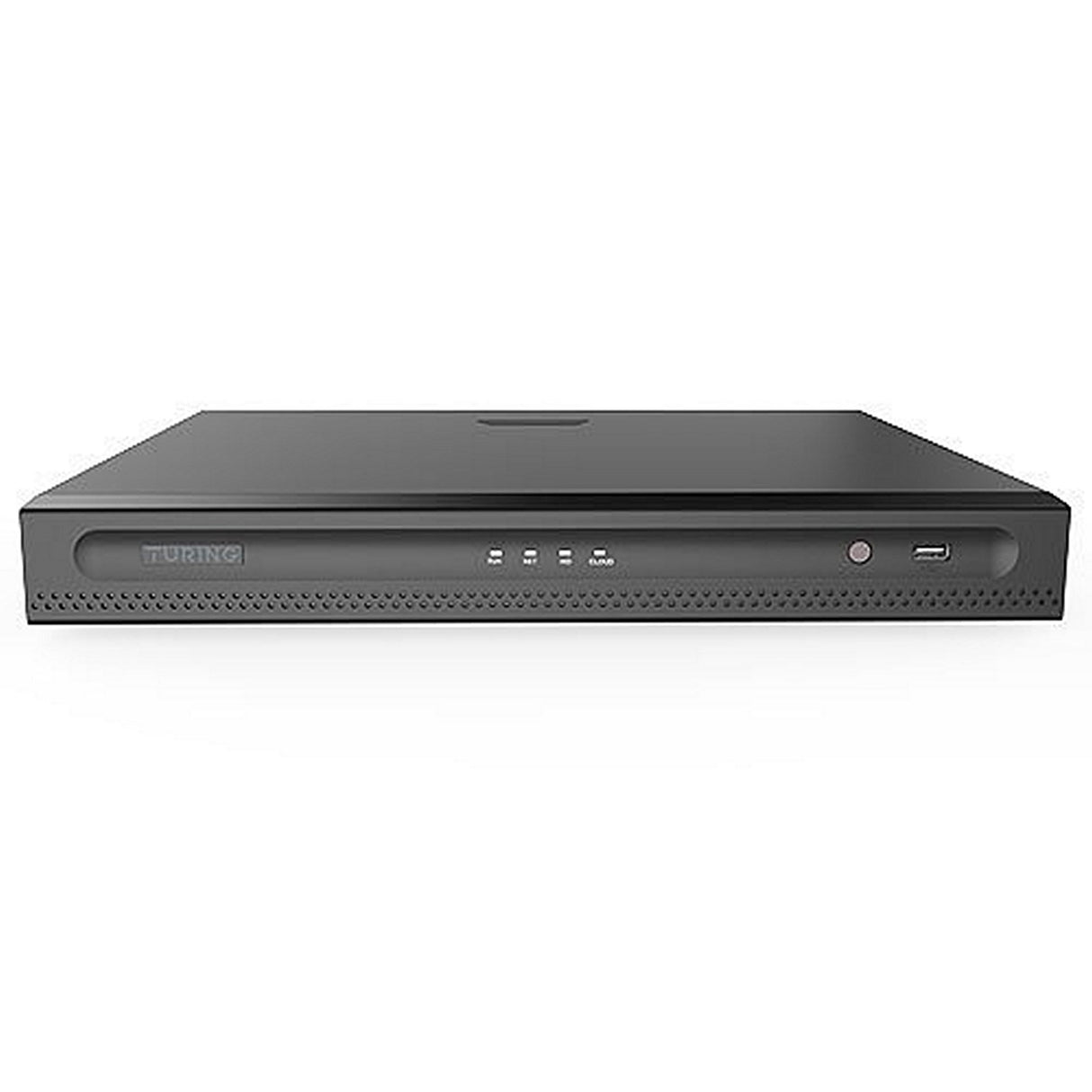

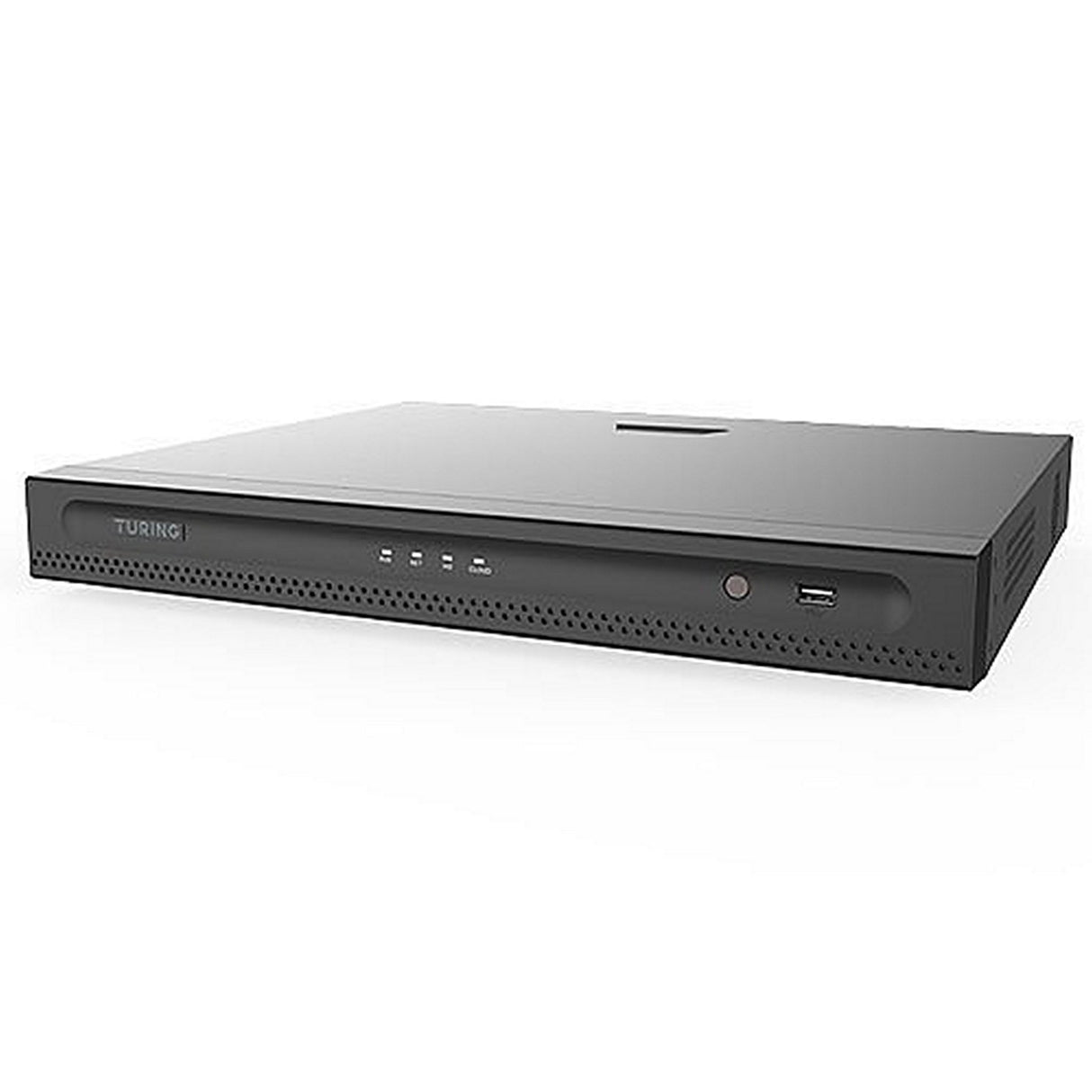

Turing Video TR-MRP164T-B SMART Series 16-Channel NVR Bundle with Turing Bridge, 4TB HDD

The Turing Video TR-MRP164T-B is a SMART Series plug-and-play Power over Ethernet (PoE) Network Video Recorder (NVR) designed for small to medium-sized surveillance deployments. This advanced NVR comes equipped with the Turing Vision bridge, serving as a gateway for SMART Series and supported third-party cameras to integrate seamlessly with the Turing Vision cloud Video Management System (VMS). Its plug-and-play PoE capability allows for effortless connection of up to 16 IP cameras, simplifying installation and reducing setup time. The device supports high-definition recording with a maximum resolution of 8MP, ensuring clear and detailed video footage. With a substantial 4TB storage capacity, it provides ample space for extensive video retention. Additionally, the TR-MRP164T-B is National Defense Authorization Act (NDAA) compliant, making it suitable for government and high-security applications.

Main Features

• Gateway to Turing Vision cloud VMS
• Plug-and-play PoE for up to 16 IP cameras
• Enables third-party IP cameras on the cloud
• Includes Turing Vision bridge
• 16 PoE ports and 1 LAN port
• 2 SATA bays, supporting up to 14TB per HDD (includes 4TB HDD)
• 1 VGA output
• Supports H.265, H.264, and Ultra 265 video formats
• Remote management capabilities
• NDAA compliant

Technical Specifications

Product Line: Smart
Product Model: TR-MRP164T-B
Total Number of Channels: 16
Connectivity Technology: Wired
HD Recording: Yes
Maximum Resolution: 8MP
Recording Formats: 4K
Storage Capacity: 4TB
Power Consumption: 10W
Ethernet: Yes
Remote Management: Yes
USB Ports: Yes
Number of VGA Outputs: 1
Audio Input Ports: 1
Audio Output Ports: 1
Depth: 2.1 inches
Height: 14.9 inches
Weight: 5.73 lbs
NDAA Compliant: Yes

Package Contents

• TR-MRP164T-B Network Video Recorder
• Turing Bridge
