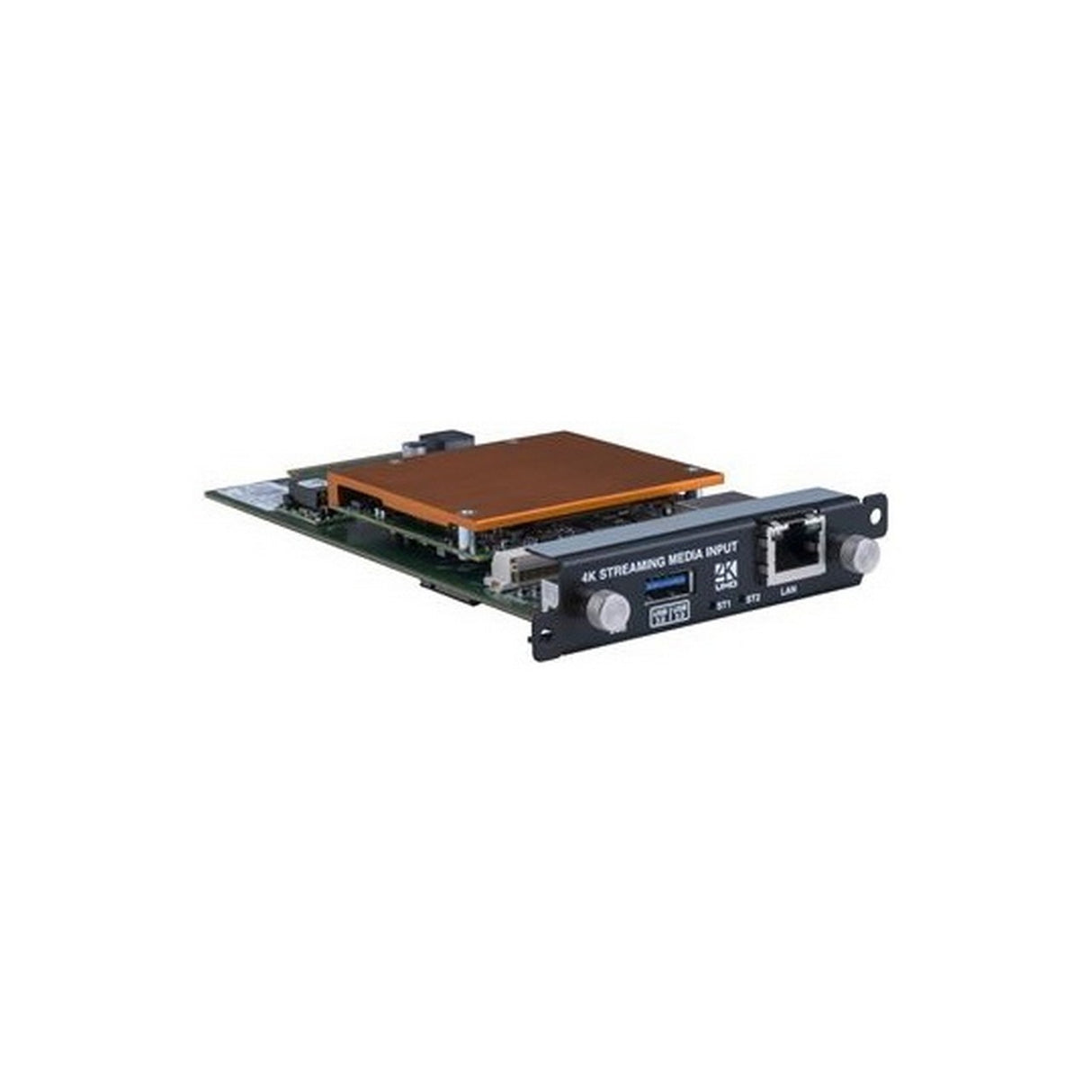

tvONE CM-AVIP-IN-1USB-1ETH-128 128GB SSD CORIOmaster Streaming Media and 4K Playback Module
tvONE CM-AVIP-IN-1USB-1ETH-128 128GB SSD CORIOmaster Streaming Medi...
Free Shipping
tvONE CM-AVIP-IN-1USB-1ETH-128 128GB SSD CORIOmaster Streaming Media and 4K Playback Module
The Streaming Media Input Module provides CORIOmaster systems with the ability to bring 2 network streams up to 1080p 60 @ 25mbs in to just 1 slot. As well as playback of 4k UHD or 2x 1080p60 video files. The Streaming Media Input Module also supports still images with full 4K rendering. And with at least 40mbs of total bandwidth you can easily provide high quality content to your video wall and projector edge-blend.
Key Features
- Low latency IP decode mode
- H.265 HEVC IP decode
- Combine streaming, file playback and still images for each video channel
- 2 independent video channels per module
- Dual-channel 4K/301 IP streaming over IP
Technical Specifications
AV over IP
Interface
1 x GbE Ethernet Port
Video Decoding
H.264 (Main, High), MPEG4, H.265/HEVC1 (Main 8)
Bit Rates
Up to 25Mbs per stream
Colour Depth
4:2:0, 4:2:2
Supported Resolutions
Configurable to 1920x1080p60
Unicast Streams
RTSP, RTMP, HTTP, MPEG-TS
Multicast Streams
RTSP, MPEG-TS
Control Interface
via CORIOgrapher v2
